Pre-axle exhaust dump

Thread Tools

Search this Thread

Old 12-09-2010, 11:20 PM
  #1
Member
Thread Starter

Matteo_96xj's Avatar

Join Date: Mar 2010
Location: A curiously warm handbasket
Posts: 239
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default Pre-axle exhaust dump

I did a search and didn't see anything, so I was wondering if anyone here has modded their exhaust to dump before the rear axle. I'm eventually going to get JKS's adjustable rear shock mount, and that requires exhaust mods. The easiest way is to just put a turndown after the muffler. Has anyone done it? Do you get exhaust fumes in the cab? Too loud? Thoughts please.
Old 12-09-2010, 11:25 PM
  #2
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

I had it like that once. The exhaust drone is much worse inside and you do get the exhaust smell. I hate loud exhausts on DD's so i put my tailpipe back on after i cut it from the stock muffler
Old 12-09-2010, 11:31 PM
  #3
Seasoned Member

g19n87r's Avatar

Join Date: Aug 2010
Location: east hampton new york
Posts: 287
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

I have it and regret doing it it vibrates and is loud but more annoying loud than good sounding
Old 12-09-2010, 11:41 PM
  #4
Member

45shutr's Avatar

Join Date: Nov 2009
Location: Fallbrook, CA (Commufornia)
Posts: 198
Likes: 0
Received 0 Likes on 0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
Default

One thing you have to be mindful of is not having the exhaust from the turndown dumping right out on, or right in front of, the axle tubes or center section, as the exhaust can superheat the rear end and cause bearing and wear issues. Not to mention as previously said in the previous post, it is going to get loud in the cab. It is fun for about a day but then the new mod quickly loses it's appeal as soon as you have to take it on the road.
Old 12-10-2010, 12:04 AM
  #5
Senior Member

goneboating06's Avatar

Join Date: Aug 2009
Location: St. George Utah
Posts: 683
Likes: 0
Received 1 Like on 1 Post
Year: 1989
Model: Cherokee
Engine: 4.0L Rebuilt Renix "Low Output" haha
Default

I did a turn down right behind my muffler thinking that it would be cheap, and make the jeep sound better... but i ended up hating it! Sure it sounded cool from outside the jeep, but inside it just got annoying. I could smell exhaust inside the jeep when it was idling and figured that wasn't the healthiest thing, and it got my rear axle very hot, and thats not good at all. So soon after i took it to an exhaust place to have a tail pipe put back on.... i'm way glad i did.
Old 12-10-2010, 12:06 AM
  #6
Member
Thread Starter

Matteo_96xj's Avatar

Join Date: Mar 2010
Location: A curiously warm handbasket
Posts: 239
Likes: 0
Received 0 Likes on 0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Thanks for the input, guys. I had a feeling I'd hate it.
Old 12-10-2010, 12:09 AM
  #7
Seasoned Member

thebrow89's Avatar

Join Date: Nov 2008
Location: belleville il
Posts: 413
Likes: 0
Received 0 Likes on 0 Posts
Year: 1992
Model: Cherokee
Engine: 4.0
Default

biggest problem i had is i spend alot of time in deep sticky mud. and when you belly out mud will block off the tail pipe and kill it if you back off the gas. i turned mine out the side behind the axle between the body and spring
Old 12-10-2010, 06:00 AM
  #8
Senior Member

2Evil4U's Avatar

Join Date: Jun 2010
Location: Slaughter, LA
Posts: 849
Likes: 0
Received 0 Likes on 0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Depending upon where you live and what the vehicle inspections are like as well, it may be illegal.

Most states with fairly rigorous mechanical inspections will require that exhaust be dumped rear of the passenger compartment of the vehicle unless it came that way from the factory. IE some old vettes, Mopars, and a few Ford trucks from the mid 90's..
Old 12-10-2010, 07:43 AM
  #9
Junior Member

Twister2gt's Avatar

Join Date: Nov 2010
Posts: 78
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

I did this with mine i had to put a new muffler on and i put on a 26 inch glasspack with a turn down and i didn't think it was to loud inside and i can't smell anything in the cab. I would try it out and see if you like it.
Old 12-10-2010, 08:46 AM
  #10
Seasoned Member

xPlover24x's Avatar

Join Date: Nov 2010
Location: Cincinnati, Ohio
Posts: 473
Likes: 0
Received 2 Likes on 2 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.0 I6
Default

Originally Posted by TheJerm
I had it like that once. The exhaust drone is much worse inside and you do get the exhaust smell. I hate loud exhausts on DD's so i put my tailpipe back on after i cut it from the stock muffler
its really dangerous too. i had that on my ranger til i put an exhaust on.
Old 12-10-2010, 08:50 AM
  #11
CF Veteran

TheJerm's Avatar

Join Date: Jun 2010
Location: Flint/Asheville
Posts: 2,501
Likes: 0
Received 4 Likes on 4 Posts
Year: 1995
Model: Cherokee
Engine: 4.0 HO
Default

Originally Posted by xPlover24x
its really dangerous too. i had that on my ranger til i put an exhaust on.
Yea the deciding factor was when i was running errands in the city and after diving so long i stopped and got out and was light headed with everything spinning. That weekend i put the tail pipe back on. Ive had CO poisoning twice from that incident and from the furnace messing up, its not a good feeling being sick for a few days like that
Old 12-10-2010, 09:45 AM
  #12
Seasoned Member

xPlover24x's Avatar

Join Date: Nov 2010
Location: Cincinnati, Ohio
Posts: 473
Likes: 0
Received 2 Likes on 2 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.0 I6
Default

well i just took it past the cab and used a turn down
Old 12-10-2010, 09:51 AM
  #13
Senior Member

blue_on_blackXJ's Avatar

Join Date: Dec 2010
Location: Leadville Co
Posts: 726
Likes: 0
Received 0 Likes on 0 Posts
Year: 2000
Model: Grand Cherokee
Engine: 4.7
Default

I'm currently running mine straight out the end of a glasspack. It's not terribly loud and I can never smell exhaust in the cab even at lights with all the windows down. However, in the future I may run a 90* to keep it away from the axle after reading some of the previous posts, though I havent noticed anything out of the ordinary yet.
Old 12-10-2010, 10:04 AM
  #14
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,172
Likes: 0
Received 14 Likes on 14 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

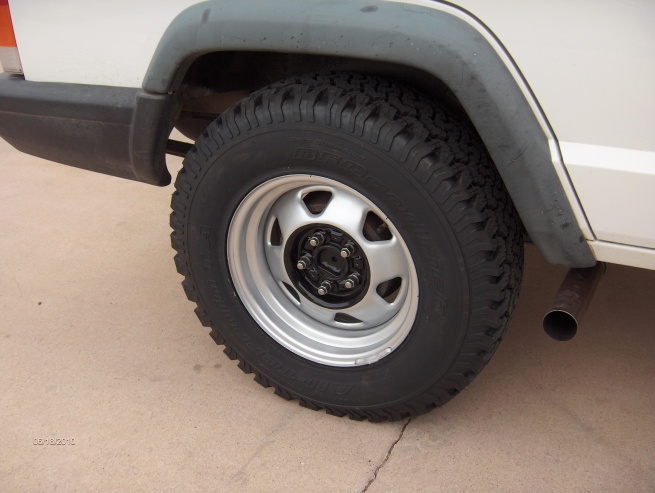

No issues here using a turn down but our XJ is rust free, no holes in floor boards. Side exit is a little quieter as u don't get as much sound bouncing back up off the pavement.
Attached Thumbnails Pre-axle exhaust dump-002.jpg   Pre-axle exhaust dump-004.jpg
