Power Steering Leak with Pictures

Thread Tools

Search this Thread

Old Sep 27, 2011 | 04:03 PM
  #16
Xj88's Avatar
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Btw: get the whole hose, metal pressure fittings included. You shouldn't need anything other than a wrench to loosen it up. Maybe a little muscle
Reply
Old Sep 27, 2011 | 07:49 PM
  #17
Littlethunder92's Avatar
Seasoned Member

Joined: Oct 2010
Posts: 379
Likes: 2
From: Jersey
Year: 1994
Model: Cherokee
Engine: 4.0
Default

if you cant get the fitting loose, cut the hose and put a socket on the nut
Reply
Old Sep 27, 2011 | 08:01 PM
  #18
Xj88's Avatar
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Be careful..you strip those threads your gonna be in bad shape
Reply
Old Sep 28, 2011 | 09:08 AM
  #19
OconeeCherokee's Avatar
Thread Starter
Junior Member

Joined: Mar 2011
Posts: 94
Likes: 1
From: Oconee
Year: 1996
Model: Cherokee
Engine: 4.0
Default

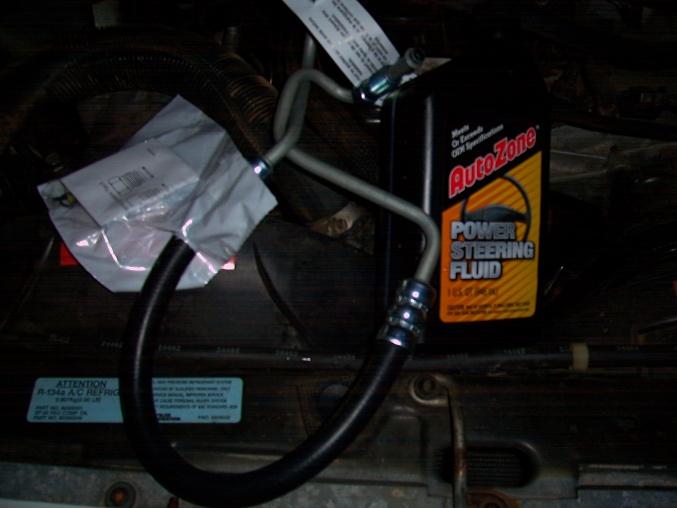

All great information guys. Picked up the hose last night, going to borrow the tool wrench from a buddy. Looked at my coolant reservoir, it's dirty, so I guess I'll pull the radiator hose while I'm doing the PS pump. I was not aware the hose came with the crimped ends and metal lines already. Guess thats why I was confused. Seems cheap, $18.00 for this part, has a lifetime warranty. What is PB? Also, the airbox is gone, I put and intake cone so....do I need to start the engine to get the air to burp out of the top of the reservoir and turn the wheel back and forth?
Attached Thumbnails Power Steering Leak with Pictures-100_1166.jpg
Reply
Old Sep 28, 2011 | 09:33 AM
  #20
Gorillaxj's Avatar
CF Veteran

Joined: Sep 2010
Posts: 4,968
Likes: 0
From: Salt Lake City, UT
Year: 2000
Model: Cherokee
Engine: 4.0L
Default

pb blaster. Its a rust penatrant. helps break away the rust and buld up on the threads. It works really well. (like wd40 and other rust penatrants)

not a must but if you have somthing liek ti laying around it should help.

Last edited by Gorillaxj; Sep 28, 2011 at 09:36 AM.
Reply
Old Sep 28, 2011 | 09:39 AM
  #21
Xj88's Avatar
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Dont worry about bleeding it man. Just use an 18mm wrench for the top part of the hose and a 19 mm for the bottom..pull it out..it will pour out a bit from the gear box and the pump but not much...mine had leaked so much it was already empty, just be careful about cross threading and stripping the threads on the pump and box. Be ready to loose about 3 gallons of coolant from that lower rad hose. And have fun
Reply
Old Sep 28, 2011 | 11:40 AM
  #22
OconeeCherokee's Avatar
Thread Starter
Junior Member

Joined: Mar 2011
Posts: 94
Likes: 1
From: Oconee
Year: 1996
Model: Cherokee
Engine: 4.0
Default

thanks guys
Reply
Old Sep 28, 2011 | 12:21 PM
  #23
Xj88's Avatar
Old School CF Moderator

Joined: May 2010
Posts: 9,652
Likes: 3
From: Chattanooga
Year: 2001
Model: Cherokee
Engine: 4.0
Default

Good luck man, I am relieved I got mine done. I was getting tired of dumping a bottle of fluid in every week, and my local mecanic made it out to be one hell of a job. Its prolly one of the easiest things Ive done so far. Be careful and dont do what I did and pinch the lower rad hose between the return and pressure line...then my hose exploded. Which turned into another project.
Reply
Old Sep 29, 2011 | 01:38 PM
  #24
OconeeCherokee's Avatar
Thread Starter
Junior Member

Joined: Mar 2011
Posts: 94
Likes: 1
From: Oconee
Year: 1996
Model: Cherokee
Engine: 4.0
Default

thanks for the advice, I am going to pull the rad hose and drain anyway. Maybe tonight, still have a good bit of firewood to split this evening.
Reply
Old Sep 29, 2011 | 01:48 PM
  #25
Ender's Avatar
Senior Member

Joined: Mar 2010
Posts: 855
Likes: 1
From: Southern California
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Default

I just this EXACT same thing to my '89. Picked up the new hose for $20. Came ready to pop right in, no special tool required. Took me 20 min easiest repair I've done, haha
Reply
Old Sep 29, 2011 | 03:29 PM
  #26
s14unimog's Avatar
CF Veteran

Joined: Dec 2009
Posts: 1,396
Likes: 2
Model: Cherokee
Default

Originally Posted by Agent_Oragnge
eliminate the fitting and slide the hose over the steel tube. secure with hose clampS (note the S as in more than one)
Negative ghost rider! That's WAY to high of pressure for that type of connection. OP, you need a new high pressure hose. NAPA will assemble you one if you want some fancy stainless
Reply
Old Sep 29, 2011 | 03:32 PM
  #27
Ender's Avatar
Senior Member

Joined: Mar 2010
Posts: 855
Likes: 1
From: Southern California
Year: 1989 Laredo
Model: Cherokee
Engine: 4.0 Inline 6 Renix
Default

Originally Posted by s14unimog
Negative ghost rider! That's WAY to high of pressure for that type of connection. OP, you need a new high pressure hose. NAPA will assemble you one if you want some fancy stainless

X5,000,000

Fo sho, that will never work, clamps on high pressure line like that?? Go ahead and try that out, let us know what happens...
Reply
Old Sep 29, 2011 | 05:05 PM
  #28
Bustedback's Avatar
CF Veteran

Joined: Feb 2010
Posts: 12,367
Likes: 23
From: Oroville, CA
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

Once you get the new hose on don't tighten the fittings until they are both started, then you can snug them down tight. Make sure not to cross thread the fittings too.
Reply
Old Sep 30, 2011 | 10:23 AM
  #29
OconeeCherokee's Avatar
Thread Starter
Junior Member

Joined: Mar 2011
Posts: 94
Likes: 1
From: Oconee
Year: 1996
Model: Cherokee
Engine: 4.0
Default

what do you mean until there started? You mean hand tighten the nuts till snug and then tighten with wrench? I'm doing this afternoon before the luke bryan concert, so i hope i can get it all done. Thanks for everyones help!

OC
Reply
Old Oct 4, 2011 | 07:09 PM
  #30
OconeeCherokee's Avatar
Thread Starter
Junior Member

Joined: Mar 2011
Posts: 94
Likes: 1
From: Oconee
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Got the new hose in. Whoever suggested cutting the metal hose and using a socket to get the flare nut loose deserves some recognition. I thought I wasn't going to be able to get the one end loose, till I remembered the socket idea. Worked like a champ and was able to drain the coolant and install the hose before the concert. Thanks guys. Brakes are next so I'm sure I'll have more questions.
