Part identification help.
What is the part that is behing my oil drain plug. There is a plate and i can see inside and there seems to be gears and the plate is cracked bad. I have a 4.0 and my tranny is a np231.
05-14-2010, 08:36 AM
#2
"CF Moderator"
Join Date: Sep 2008
Location: N.J. Shore Area
Posts: 3,045
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: l6 HO
Sounds like the Flywheel to me. Is it making noise when it runs? BTW if its an automatic the trans is a AW4, the NP231 is the transfer case for the 4 wheel Dr...Tj
05-14-2010, 08:42 AM
#3
It's FlexPlate, not a flywheel. Yes there is a huge difference.
Cracked flrxplates are not uncommon.
I've got a spare that will work with your engine, $50 shipped.
No, you cannot install just any flexplate from any year 4.0L.
Cracked flrxplates are not uncommon.
I've got a spare that will work with your engine, $50 shipped.
No, you cannot install just any flexplate from any year 4.0L.
05-14-2010, 08:48 AM
#4
Senior Member
Join Date: Aug 2008
Location: Battle Creek, MI
Posts: 847
Likes: 0
Received 2 Likes
on
2 Posts
Year: '92
Model: Cherokee
Engine: 4.0
I want to say thats the torque converter that sits just before the tranny in the bell housing. The plate you talk of is a 1/3 plate that covers the part of the tranny/torque converter thats not covered by the engine.
If its vibrating, try tightening the bolts that hold the plate in place.
This is not an AW4, just an image to show what I mean. You will not have the "Bell Housing Brace" But the rest is close to what you have.
If its vibrating, try tightening the bolts that hold the plate in place.
This is not an AW4, just an image to show what I mean. You will not have the "Bell Housing Brace" But the rest is close to what you have.
...Tj
05-14-2010, 08:54 AM
#6
No, you're incorrect. The torque converter is bolted to the back side of the flexplate and is not visible by removing the inspection cover.
Engine-->Flexplate-->Torque Converter-->Transmission-->Transfercase.
Engine-->Flexplate-->Torque Converter-->Transmission-->Transfercase.
Trending Topics
05-14-2010, 09:06 AM
#8
CF Veteran
Join Date: Jan 2010
Location: WI
Posts: 1,506
Likes: 0
Received 2 Likes
on
2 Posts
Year: '99
Model: Cherokee
Engine: 4.o
I call that an excess panel. But whatever you call it its not that big of a deal untill you wheel it a lot of older GMs don't even have one (cars). Any way you can take it off untill you have cash for a new one or just leave it be. Junk yards will have them or order one from whoever that was that had a few spars. I just wanted to say its not a big deal.
05-14-2010, 09:20 AM
#9
Seasoned Member
Join Date: Sep 2009
Posts: 269
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
05-14-2010, 09:27 AM
#10
CF Veteran
Join Date: Mar 2009
Location: Tenn. and Mich.
Posts: 28,068
Likes: 0
Received 6 Likes
on
6 Posts
Year: 2004
Model: Grand Cherokee
Engine: 4.7L V8
I call that an excess panel. But whatever you call it its not that big of a deal untill you wheel it a lot of older GMs don't even have one (cars). Any way you can take it off untill you have cash for a new one or just leave it be. Junk yards will have them or order one from whoever that was that had a few spars. I just wanted to say its not a big deal.
05-14-2010, 09:43 AM
#12
05-14-2010, 10:06 AM
#13
Senior Member
Thread Starter
Join Date: Mar 2009
Location: Owensboro, Ky.
Posts: 688
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0 liter
Still need help

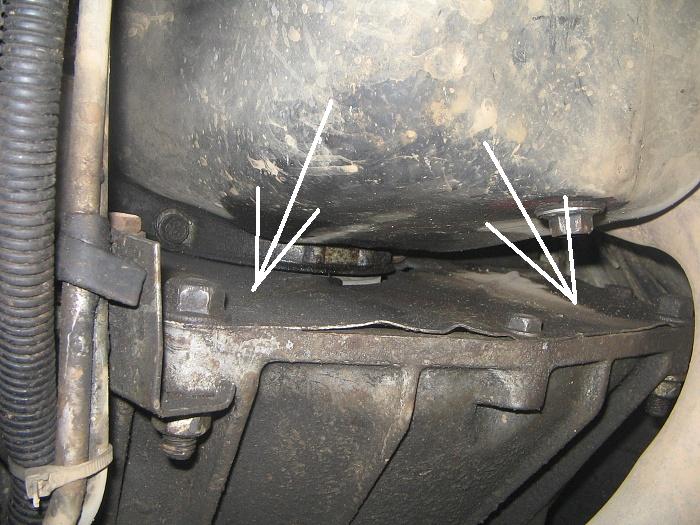

This isnt my picture but mine is cracked open where the white arrows are pointing at. Is that the flexplate and whats behind it.
