Oil pressure gauge and light
#1
CF Veteran
Thread Starter
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Oil pressure gauge and light
Hi all. After losing my oil last night and hoping that I spotted the gauge quickly, I'd love an oil light.
Are there any oil pressure switches out there for these that can do dual readings, one with various resistance for the gauge and a solid reading for a separate light?
Thanks
Edit: Pictures below
Are there any oil pressure switches out there for these that can do dual readings, one with various resistance for the gauge and a solid reading for a separate light?
Thanks
Edit: Pictures below
Last edited by boxburn; 05-31-2019 at 12:04 PM.
#2
Old fart with a wrench
You could put a "T" in the gauge fitting and install a pressure switch to turn on a light. The only problem is finding a switch that turns on before the pressure gets to zero. I think the older GM cars had them that started flickering at 15 psi, but don't quote me on that.
#3
CF Veteran
Thread Starter
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
I'll have to do some digging for one with the correct pressure and I'll certainly have to get a T-piece. My plan is to piggyback onto the handbrake light switch on the base of the handbrake straight to the oil pressure switch. When the handbrake is in use then it won't work as an oil light, but while driving it'll give me a red light to say stop.
Does anyone know what thread size and pitch is used on the oil sensor?
Does anyone know what thread size and pitch is used on the oil sensor?
#4
CF Veteran
Thread Starter
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l

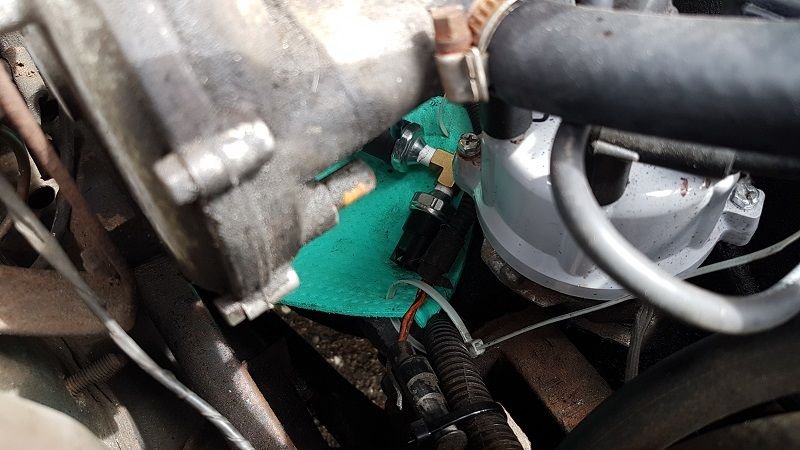

So to draw this thread to a conclusion here's what I've done. Sensors may vary depending on year of Jeep.
Items:
Instructions:
Here's also a video link:
Items:
- Oil pressure switch: OEM-56026719
- Oil pressure sender: OEM-56026779
- 1/8 NPT Oil Pressure Gauge Sensor Adapter Tee Fitting
Instructions:
- Remove old oil pressure sender
- Screw oil pressure sender into Tee fitting. Use PTFE thread tape where necessary
- Screw Tee fitting into engine at a usable angle
- Screw oil pressure switch into Tee fitting
- Run a wire from the engine bay through the bulkhead, underneath the dash and to the handbrake lever
- Connect the wire to the handbrake switch with a piggyback crimp terminal and fit to switch
- If available, solder a new or junkyard connector for the oil pressure switch to newly ran wire and connect to switch. If no new connector is available (like mine), a spade crimp can be opened up to get a fit on the switches pin. Fit connector to switch
- Reconnect original oil pressure sender wire to sender
- Test starting the Jeep with the handbrake off and the light should go out as the oil pressure rises.
- Check for oil leaks at the sensor fittings
Here's also a video link:
#6
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
So does that mean if I wanted to do this, I am pretty OCD keeping my eye on the oil pressure gauge cause I have an '00 with the 0331 head, could I do the same with screwing the same idiot light sensor and wiring it like you (if possible in an '00) into my set up here?
The capped off one is 1/8 pipe thread.
This is the set up I rigged so I could put a mechanical gauge to my Jeep without removing the oil sending unit.
Edit: I just remembered that I have a check gauges idiot light in my Jeep. Duh.
The capped off one is 1/8 pipe thread.
This is the set up I rigged so I could put a mechanical gauge to my Jeep without removing the oil sending unit.
Edit: I just remembered that I have a check gauges idiot light in my Jeep. Duh.
Last edited by Ralph77; 05-31-2019 at 12:37 PM.
#7
CF Veteran
Thread Starter
Join Date: Oct 2018
Location: United Kingdom
Posts: 1,576
Received 278 Likes
on
242 Posts
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
I don't see why not. I don't know the specifics on oil pressures, if they ever changed through the years, so it may be worth getting the idiot light sender that matches your year as my one says 1992-1996 I think. As for the light, the warning lamp circuit is a simple one that earths out at the handbrake so by moving that earth to the oil switch, it won't hurt any systems.
Trending Topics
#8
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
I don't see why not. I don't know the specifics on oil pressures, if they ever changed through the years, so it may be worth getting the idiot light sender that matches your year as my one says 1992-1996 I think. As for the light, the warning lamp circuit is a simple one that earths out at the handbrake so by moving that earth to the oil switch, it won't hurt any systems.
In the Napa catalog there is just the one. Same in my '00 parts catalog.
I am going to assume an '00 could have come with idiot lights.
#9
Old fart with a wrench
You could always add a big bright light on the dash for it! Just hook ignition circuit power to the light and ground it on the switch. The cigarette lighter is a good source, although the light would be on while you're sitting there listening to the radio. LOL!
