oil cooler

Reply



Thread Tools Search this Thread
Old 08-26-2012, 07:19 PM   #1
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default oil cooler

Is anyone running a engine oil cooler?? My 88 has a oil cooler a trans cooler and then the radiator. I am replacing my sealed system to a 2row open system and want to replace the oil cooler why iam their. Does anybody got any suggestions
jaythenewguytojeepn is offline   Reply With Quote
Old 08-26-2012, 08:21 PM   #2
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,155

View djb383's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

Got pics of your set-up?
djb383 is offline   Reply With Quote
Old 08-26-2012, 09:03 PM   #3
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

I can go take some. Its all stock set up right now..
jaythenewguytojeepn is offline   Reply With Quote
Old 08-26-2012, 09:12 PM   #4
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

So here is what it looks like

oil cooler-forumrunner_20120826_191059.jpg



oil cooler-forumrunner_20120826_191123.jpg



oil cooler-forumrunner_20120826_191148.jpg



oil cooler-forumrunner_20120826_191208.jpg



oil cooler-forumrunner_20120826_191228.jpg

That's what those are right?

The small one is oil. The big one is trans. Then obviously the radiator behind it all.

Last edited by jaythenewguytojeepn; 08-26-2012 at 09:16 PM.
jaythenewguytojeepn is offline   Reply With Quote
Old 08-26-2012, 09:35 PM   #5
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,155

View djb383's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

I believe the small one is the optional factory auxillay tranny oil cooler, then a/c condensor, then the radiator.......no engine oil cooler.
djb383 is offline   Reply With Quote
Old 08-26-2012, 11:04 PM   #6
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

Quote:
Originally Posted by djb383
I believe the small one is the optional factory auxillay tranny oil cooler, then a/c condensor, then the radiator.......no engine oil cooler.
So I have 2 tranny coolers? The one in the radiator and a external?
jaythenewguytojeepn is offline   Reply With Quote
Old 08-26-2012, 11:24 PM   #7
Junior Member

mule1ten's Avatar

Join Date: Oct 2010
Posts: 81

View mule1ten's Photo Album My Photos
Model: Cherokee
Default

Yes correct
mule1ten is offline   Reply With Quote
Old 08-27-2012, 01:06 AM   #8
Senior Member

cherokeelaredo'90's Avatar

Join Date: Aug 2011
Location: California
Posts: 604

View cherokeelaredo'90's Photo Album My Photos
Year: 1990
Model: Cherokee
Engine: 4.0 i6
Default

I'm planning on getting a new b&m stacker plate cooler to replace the factory one. To me I feel like the factory one isn't all that large enough to really cool the fluid that much. While i'm there i'll probably turn it into a power steering fluid cooler just because I can.
cherokeelaredo'90 is offline   Reply With Quote
Old 08-27-2012, 02:15 AM   #9
Senior Member

rideordie66's Avatar

Join Date: Aug 2010
Location: Arcata California
Posts: 850

View rideordie66's Photo Album My Photos
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Should be able to follow the lines to it and figure out what its for.

But for sure the big one in front of the radiator is AC.

Little one I don't know.
rideordie66 is offline   Reply With Quote
Old 08-27-2012, 10:11 AM   #10
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,155

View djb383's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

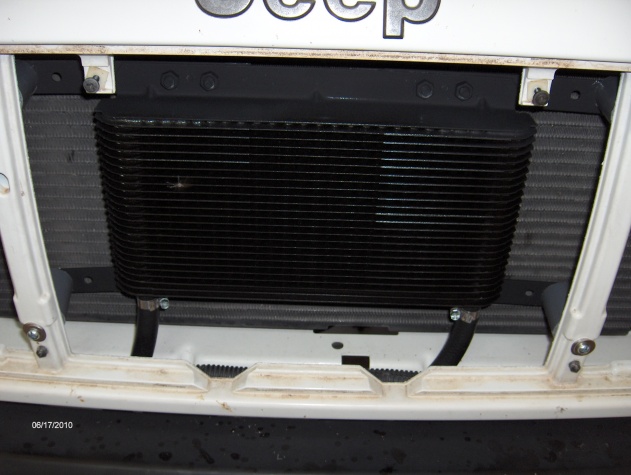

The small auxiliary tranny fluid cooler in front of the a/c condenser is part of the factory "tow pkg". The PO could have snatched it from a donor XJ and installed it. Not many XJs have the factory auxiliary tranny cooler so most folks that add a auxiliary cooler install a larger (than factory) auxiliary cooler.
Attached Thumbnails
oil cooler-003.jpg
djb383 is offline   Reply With Quote
Old 08-27-2012, 10:17 AM   #11
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

Quote:
Originally Posted by djb383
The small auxiliary tranny fluid cooler in front of the a/c condenser is part of the factory "tow pkg". The PO could have snatched it from a donor XJ and installed it. Not many XJs have the factory auxiliary tranny cooler so most folks that add a auxiliary cooler install a larger (than factory) auxiliary cooler.
Ya that's what iam going todo. Their is no tow pack unless they took it off. Not sure. I thought it was a oil cooler. I will follow the lines to double check. Does anyone run a oil cooler?
jaythenewguytojeepn is offline   Reply With Quote
Old 08-27-2012, 10:18 AM   #12
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

Quote:
Originally Posted by cherokeelaredo'90
I'm planning on getting a new b&m stacker plate cooler to replace the factory one. To me I feel like the factory one isn't all that large enough to really cool the fluid that much. While i'm there i'll probably turn it into a power steering fluid cooler just because I can.
What is the part # I have been looking @ the B&M trans cooler.
jaythenewguytojeepn is offline   Reply With Quote
Old 08-28-2012, 12:46 AM   #13
Senior Member

cherokeelaredo'90's Avatar

Join Date: Aug 2011
Location: California
Posts: 604

View cherokeelaredo'90's Photo Album My Photos
Year: 1990
Model: Cherokee
Engine: 4.0 i6
Default

Quote:
Originally Posted by jaythenewguytojeepn

What is the part # I have been looking @ the B&M trans cooler.
Most people go with the 70268 one. When I get around to it, that'll be the one I purchase.
cherokeelaredo'90 is offline   Reply With Quote
Old 08-28-2012, 09:25 AM   #14
CF Veteran

djb383's Avatar

Join Date: Nov 2009
Location: The Republic of TEXAS
Posts: 8,155

View djb383's Photo Album My Photos
Year: 1998
Model: Cherokee
Engine: 4.0L HO
Default

My pic above is a B&M 70264. It's a 1.75" thick core vs .75" core......thicker core means smaller foot print with more cooling capacity.
djb383 is offline   Reply With Quote
Old 08-28-2012, 02:06 PM   #15
Senior Member
Thread Starter

jaythenewguytojeepn's Avatar

Join Date: Jan 2012
Location: High Desert AV
Posts: 576

View jaythenewguytojeepn's Photo Album My Photos
Year: 88
Model: Cherokee
Engine: inline 6 4.0 liter renix
Default

What's the diff between the two?
jaythenewguytojeepn is offline   Reply With Quote
