Offset balljoints

Thread Tools

Search this Thread

Old Mar 2, 2020 | 06:42 AM
  #1
amos7514's Avatar
Thread Starter
Newbie

Joined: Jan 2020
Posts: 9
Likes: 0
Model: Cherokee (XJ)
Default Offset balljoints

Hey how’s it goin I just got a alignment and my camber is off what degree ball joint should I get and do I need both or just one the ball joints are brand new thanks
Reply
Old Mar 2, 2020 | 10:30 AM
  #2
00t444e's Avatar
CF Veteran
10 Year Member

Joined: Nov 2015
Posts: 3,636
Likes: 469
From: Southern OH
Year: 1997
Model: Cherokee(XJ)
Engine: 4.0
Default

There is no camber adjustment on a straight axle, if it's off by a large amount either your ball joints are worn out or something is bent.
Reply
Old Mar 2, 2020 | 01:25 PM
  #3
Camaroboi13's Avatar
Junior Member

Joined: Nov 2019
Posts: 75
Likes: 14
From: San Bernardino, CA
Year: 1987
Model: Cherokee (XJ)
Engine: 4.0L
Default

Check your hubs for play. If your ball joints are new, you shouldn't have to replace them unless they were improperly replaced. My money is on worn out hubs.
Reply
Old Mar 2, 2020 | 04:07 PM
  #4
Steve Hayes's Avatar
Member

Joined: Oct 2019
Posts: 247
Likes: 59
From: Fredericksburg, VA.
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

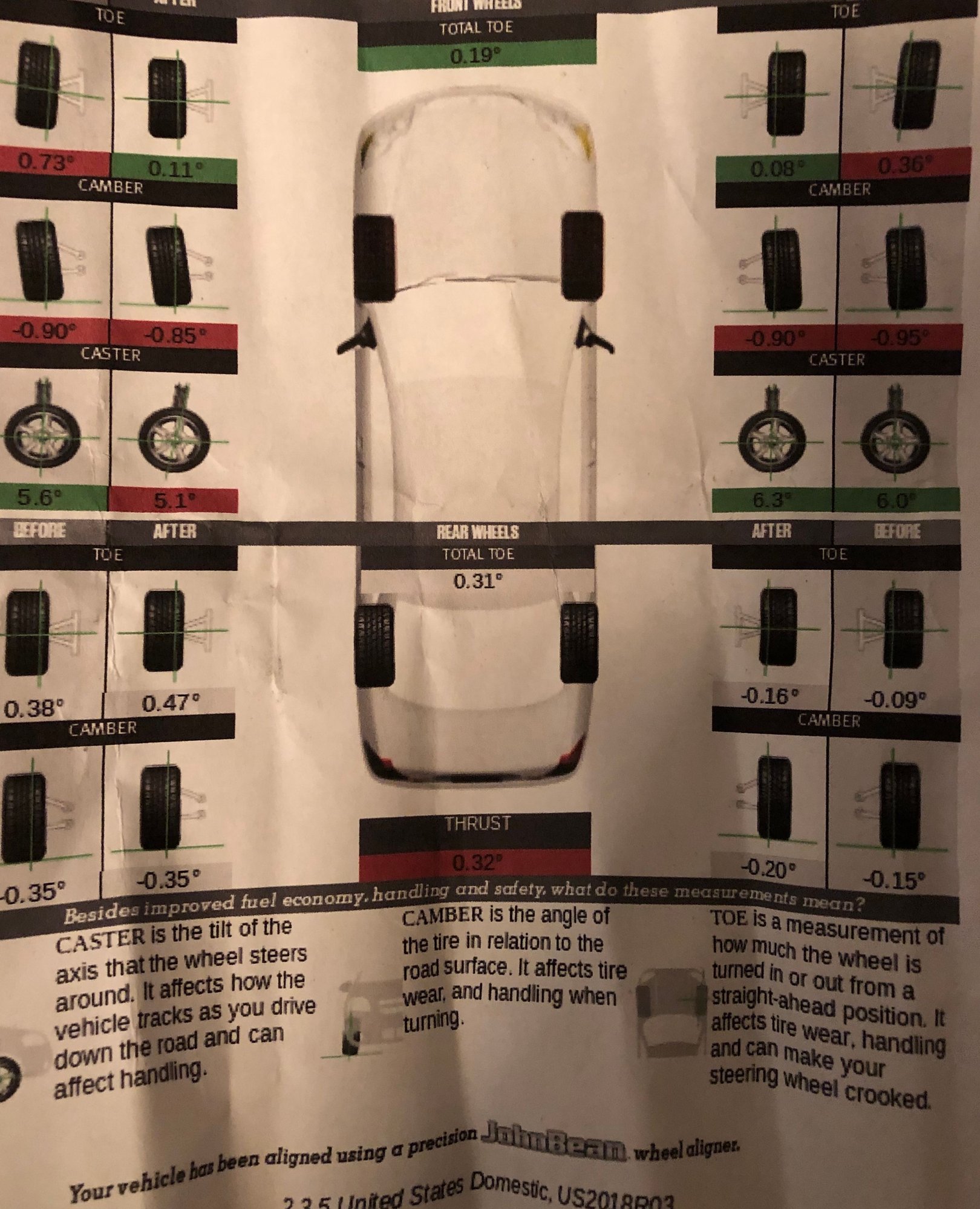

If the OP had a professional alignment shop do the work they would have checked ball joints, tie rod ends and wheel hubs for play before even starting the process and would have said that they could not proceed with the alignment until all worn parts were replaced. That said, without any punctuation the OPs post is a bit confusing. I'm not sure if he said he needs one ball joint or has new ball joints. If I am reading the alignment sheet correctly, I see -.85 LF and -.95 RF which is not excessive. Typically you run slightly more negative camber on the right front to compensate for the crown in the roads for left hand drive countries. I would call it good and move on.

Last edited by Steve Hayes; Mar 2, 2020 at 04:48 PM.
Reply
Old Mar 2, 2020 | 05:02 PM
  #5
MBredestege's Avatar
Junior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2019
Posts: 62
Likes: 13
From: Cincinnati, Ohio
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default

He stated he just got an alignment and posted the result.
He has a camber issue (reportedly, not that bad) but I believe he is looking for offset ball joints. They make them in 0.5 degree increments up to 2 degrees, its the only way to adjust camber.
They allow you to adjust camber up to +/- 2 degrees and as far as I know, they only make them in upper ball joints. They can be used to adjust caster too.

If you don't know what to get, ask the shop that did the alignment, If you get the orientation wrong putting them in, you will make it worse/screw something else. Then you'll be pressing them back out.

Last edited by MBredestege; Mar 2, 2020 at 05:06 PM.
Reply
Old Mar 2, 2020 | 05:05 PM
  #6
Steve Hayes's Avatar
Member

Joined: Oct 2019
Posts: 247
Likes: 59
From: Fredericksburg, VA.
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0
Default

OP ask about camber not caster.

Last edited by Steve Hayes; Mar 2, 2020 at 05:35 PM.
Reply
Old Mar 2, 2020 | 05:07 PM
  #7
MBredestege's Avatar
Junior Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Mar 2019
Posts: 62
Likes: 13
From: Cincinnati, Ohio
Year: 2000
Model: Cherokee (XJ)
Engine: 4.0
Default

Noted and corrected. They can be used for both.
