none of the power locks or windows work
08-25-2012, 10:07 AM
#1
Newbie
Thread Starter
Join Date: Apr 2012
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0
none of the power locks or windows work

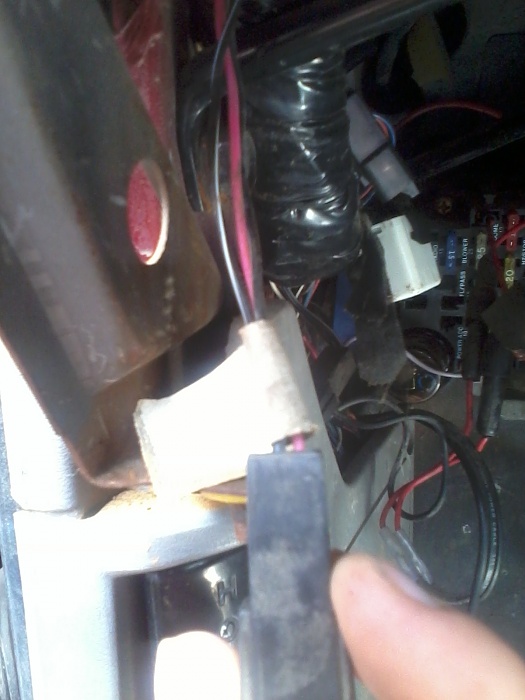

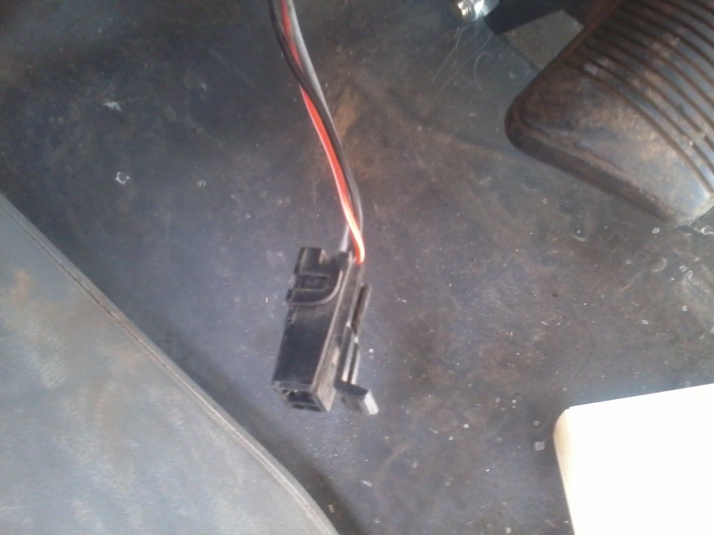

Hey guys almost done with resurrecting a 89 xj but still need to figure out why my power locks and windows aren't working. I've got a few connectors under the dashboard by the fuse panel that aren't connected to anything and only have three very different connectors and wire colors. so no matches. Also haven't tested to see if I'm getting power to the connectors on the window motors but wanted to see if there was a little sneaky relay that usually goes out or some other weird jeep thing to look for before I whip out the voltmeter.
I'm pretty handy but I'm not the best at automotive wiring.
I'm pretty handy but I'm not the best at automotive wiring.
08-25-2012, 10:13 AM
#2
CF Veteran
Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1991
Model: Cherokee
Engine: 4.0

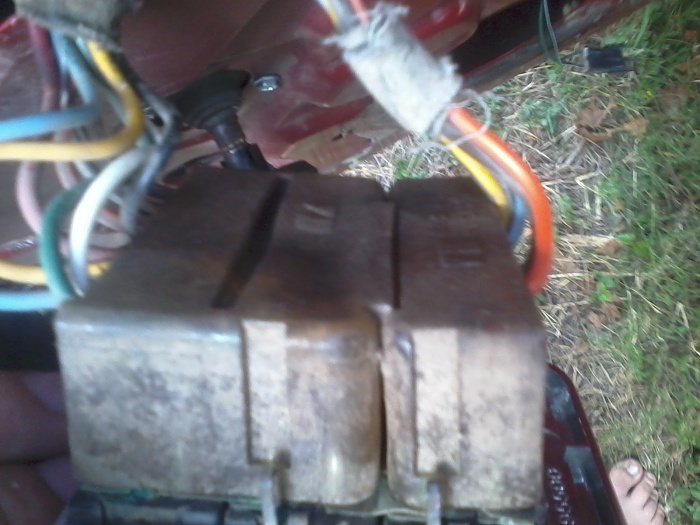

Start with the volt meter at the drivers door switch. Odds are you not getting power to the switch. And you might find that the wire is broken between the door and body. (In the rubber sleeve, or boot) You can take off the kick panel to check. The switches them selves are known to go bad also. JMO!
08-25-2012, 10:37 AM
#4
CF Veteran
Join Date: Aug 2009
Location: Oshkosh, WI.
Posts: 4,118
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
The driver's door switch is the master switch, it runs there first (or suppose to) before going to the others. It's the best spot to start trouble shooting. Ad the problem could be right there anyways.
08-25-2012, 10:43 AM
#5
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

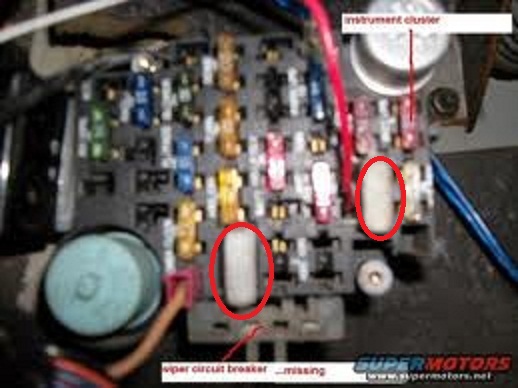

is there a 30 amp circut breaker in fuse box supposed to power them ?....http://www.jeepforum.com/forum/f11/8...eeded-1023984/
08-25-2012, 11:07 AM
#6
Newbie
Thread Starter
Join Date: Apr 2012
Posts: 26
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0

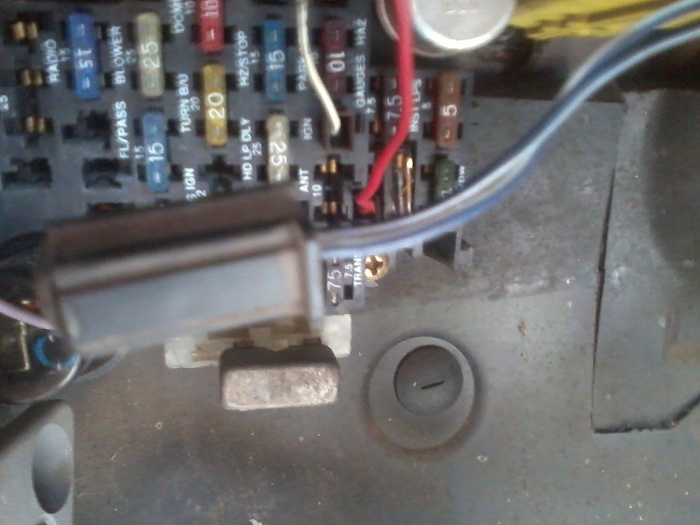

Didn't see a 30 amp there but the picture in my manual is different than that one also. so maybe that's the correct one. cause my manual seems to be off. 91LO that seems logical that that would be a master switch just never occurred to me. I'll check it out fault is probably right there.
Trending Topics
08-30-2012, 06:43 AM
#11
Junior Member
Join Date: Jul 2012
Location: minnesota
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

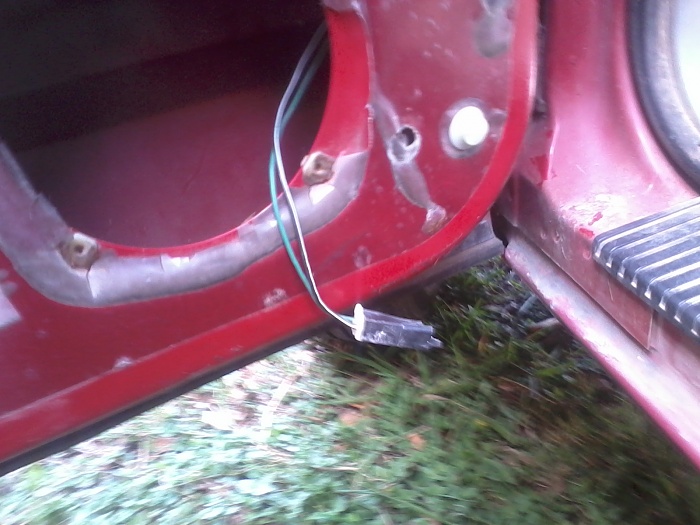

Mine weren't working either a couple weeks ago. I ended up pulling the whole wiring harness out from between the door and the body, a few wires were broken in the rubber boot and thus no power to anything at the master drivers door switch. It was pretty easy, just a little tedious.
08-30-2012, 10:36 AM
#12
Senior Member
Join Date: Apr 2011
Location: Lansing, MI
Posts: 813
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0
Mine weren't working either a couple weeks ago. I ended up pulling the whole wiring harness out from between the door and the body, a few wires were broken in the rubber boot and thus no power to anything at the master drivers door switch. It was pretty easy, just a little tedious.
What all was involved in pulling the entire harness? I've made splices to repair mine here and there but I'm too **** to just leave it at that, I want to pull the harness and completely replace/do a better repair on the broken or damaged wires.
08-30-2012, 11:52 AM
#13
Junior Member
Join Date: Jul 2012
Location: minnesota
Posts: 49
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0

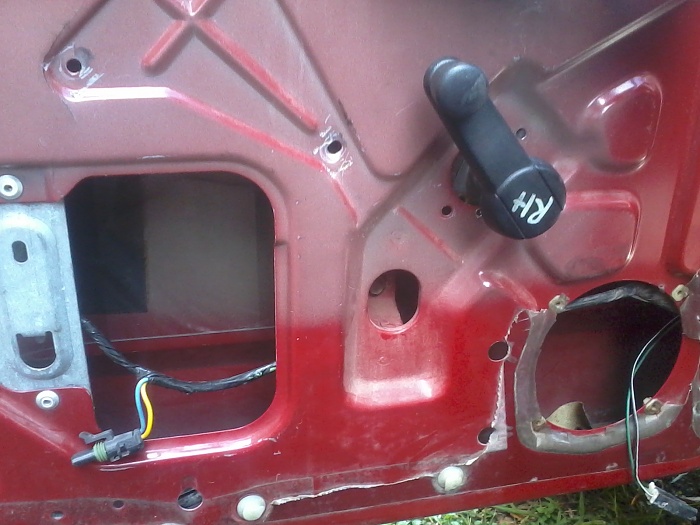

There's nothing to it..pull your door panel and undo all the harness connections for the various items. Then remove the kick panel on the drivers side, the harness has 3 connectors it plugs into, undo them then fish the harness through the holes and out of the vehicle. Just takes a little wiggling to get it fished through all the way. Then remove the loom and fix your wires.
08-30-2012, 12:22 PM
#14
Banned
Join Date: Jan 2012
Location: FL
Posts: 415
Likes: 0
Received 1 Like
on
1 Post
Year: 2001
Model: Cherokee
Engine: 4.0
You need wiring diagram, test light and multitester. You have many broken wires and many other electrical problems in 23-years old car.
It is not hard to read diagram, this is for 97
1.check + and - in master switch connector
2.check each pair of wires going to each door actuator.
OK, I'll diagnose your Jeep:
you have broken wires in door jams
non working switches
a few non working window motors/regulators/actuators
It is not hard to read diagram, this is for 97
1.check + and - in master switch connector
2.check each pair of wires going to each door actuator.
OK, I'll diagnose your Jeep:
you have broken wires in door jams
non working switches
a few non working window motors/regulators/actuators
Last edited by car5car; 08-30-2012 at 12:26 PM.
