Need some help reading spark plugs
#1
Junior Member
Thread Starter
Join Date: Nov 2014
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Need some help reading spark plugs
Just a quick history. I bought this Cherokee about 2 years ago. It's a 2001. Was losing coolant and found out about the 0331 head issue. Oil looked fine, I never could find a crack, but decided to proactively go ahead and do the cyl head swap. Went with Clearwater.
New head went on, new gaskets as well obviously. Also bought a set of 784 injectors, and new O2 sensors. Replaced all cooling system components.
Long story short, got it back on the road about 2 weeks ago. I've driven maybe 75 miles since. Plugs are all brand new, gapped correctly. NGK's.
It seemed a little sluggish, and under load it sounds like a faint exhaust leak can be heard. However, it idles fine, right at 750, no surging. I just figured the sluggishness was because I hadn't driven it in nearly 2 years and have been driving a 15 ecoboosted f150 as my daily driver. I just chalked it up to that. No codes/diagnostics.
It bothered me enough that I decided to do vac test/comp test/and check fuel pressure.
Vacuum test was a little concerning as I was only able to pull about 16 in. That seems low to me. Located in Central IL, so elevation is only 650 feet.
Fuel pressure seemed fine at 48 psi.
Compression test came back fine as well as can be seen below. So, I started thinking vacuum leak/lean mixture. But I'm not getting any codes. None.

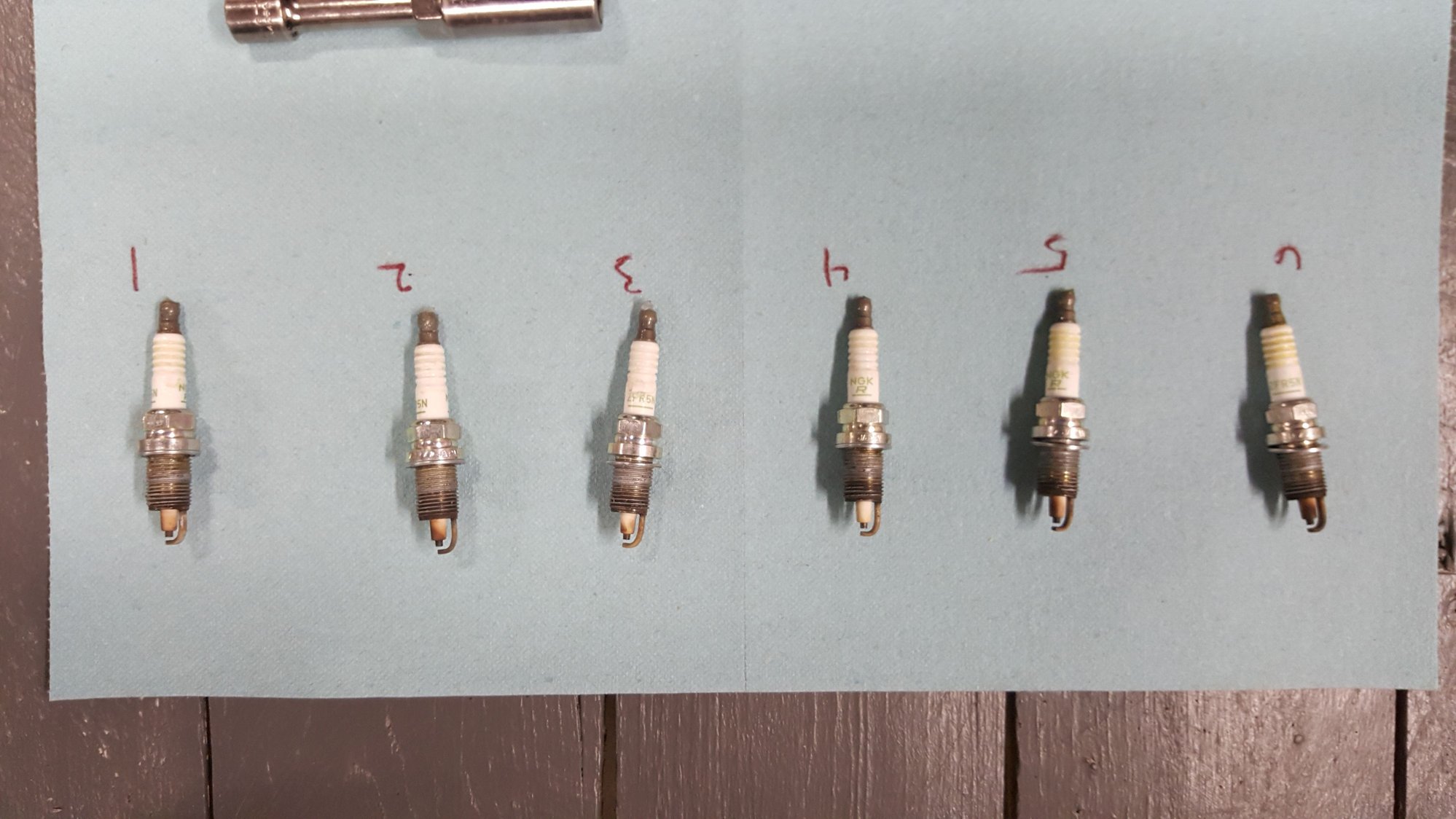

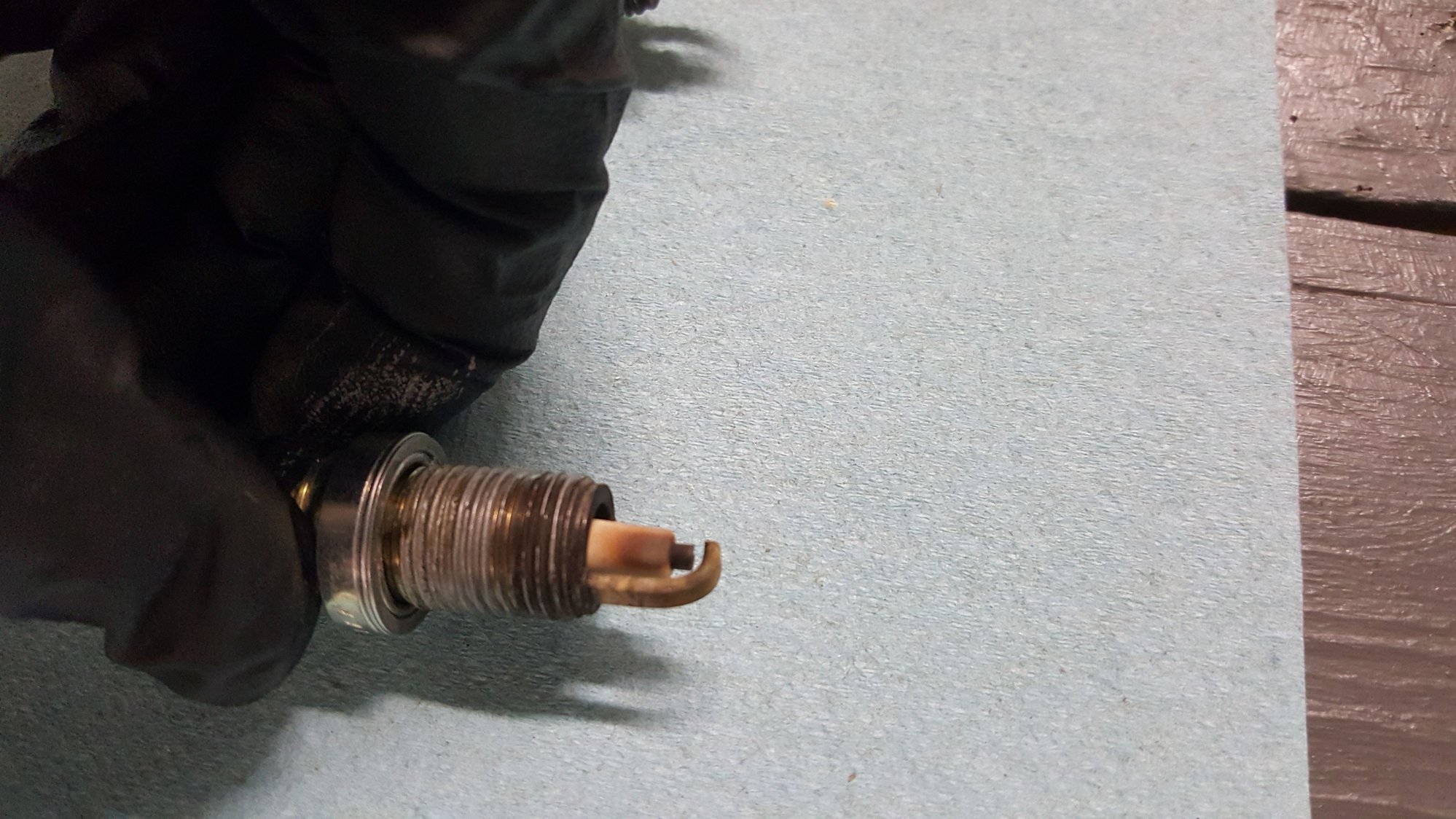

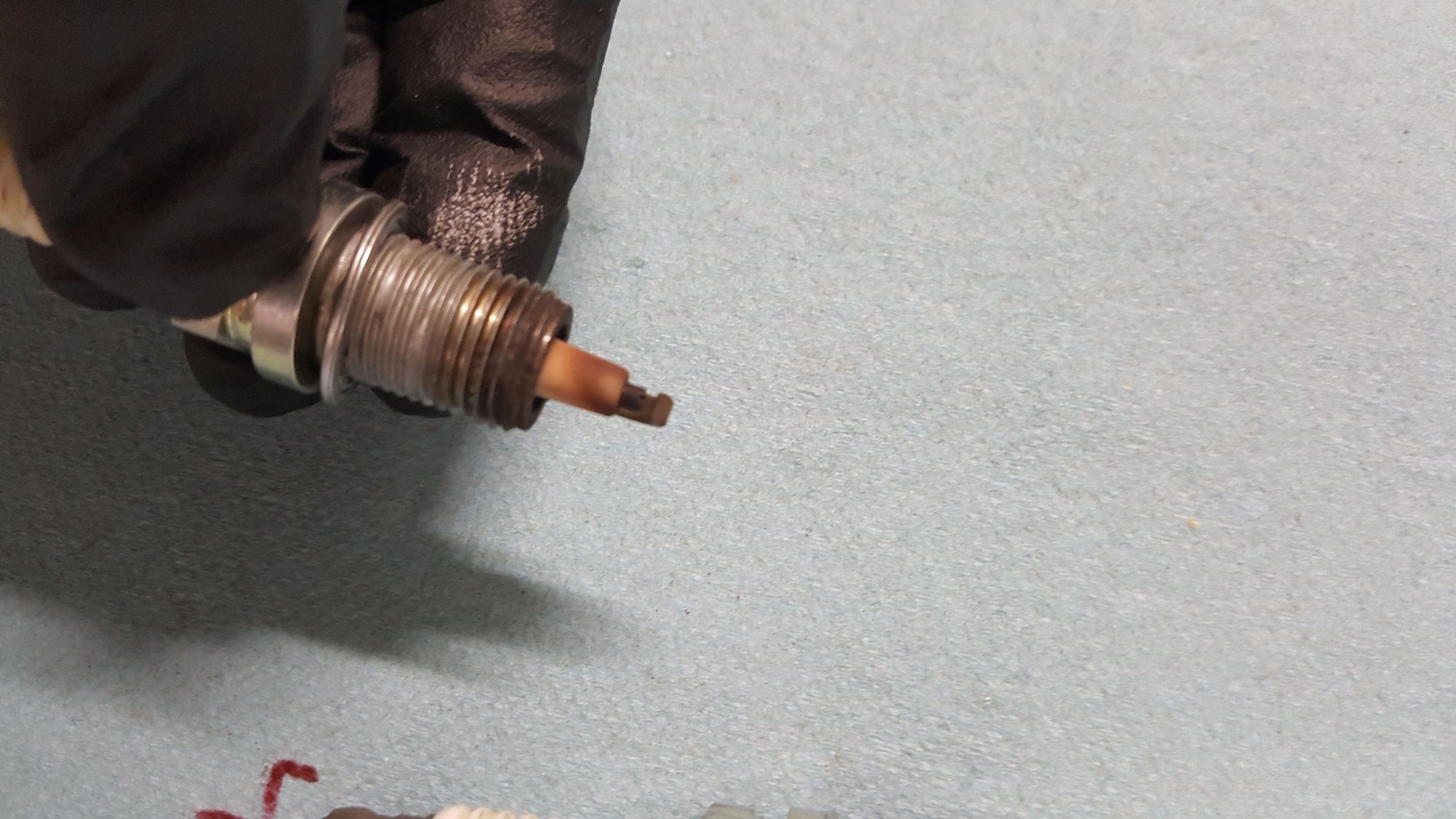

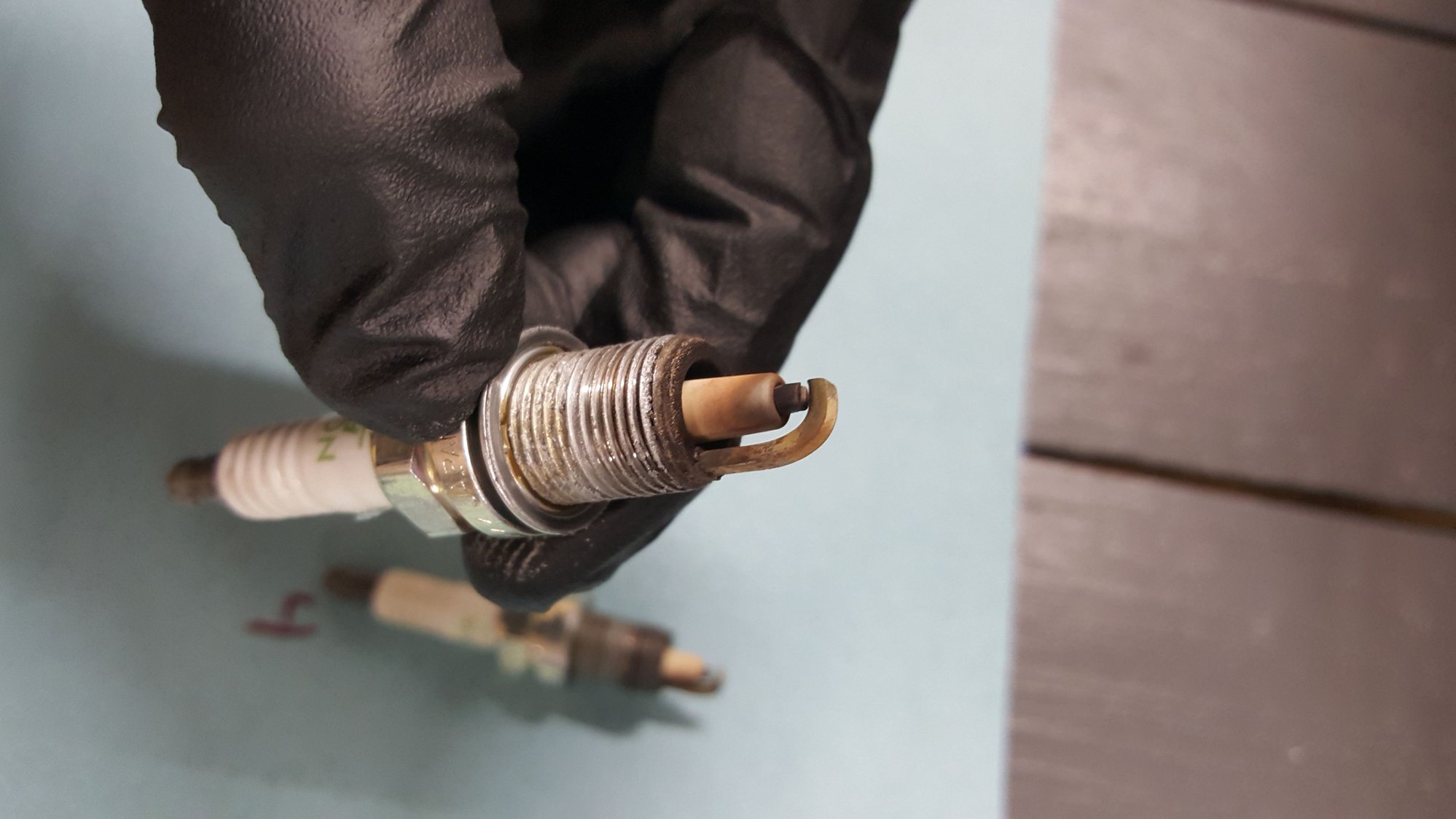

Plugs look hot to me. They only have about 75 miles on them, and some idle time. If it's a vac leak, and leaning out the mixture this much, why does it idle fine? Why am I getting no air/fuel errors?
I'm new to the jeep stuff, so looking for some help!
Thanks everyone!
New head went on, new gaskets as well obviously. Also bought a set of 784 injectors, and new O2 sensors. Replaced all cooling system components.
Long story short, got it back on the road about 2 weeks ago. I've driven maybe 75 miles since. Plugs are all brand new, gapped correctly. NGK's.
It seemed a little sluggish, and under load it sounds like a faint exhaust leak can be heard. However, it idles fine, right at 750, no surging. I just figured the sluggishness was because I hadn't driven it in nearly 2 years and have been driving a 15 ecoboosted f150 as my daily driver. I just chalked it up to that. No codes/diagnostics.
It bothered me enough that I decided to do vac test/comp test/and check fuel pressure.
Vacuum test was a little concerning as I was only able to pull about 16 in. That seems low to me. Located in Central IL, so elevation is only 650 feet.
Fuel pressure seemed fine at 48 psi.
Compression test came back fine as well as can be seen below. So, I started thinking vacuum leak/lean mixture. But I'm not getting any codes. None.
Plugs look hot to me. They only have about 75 miles on them, and some idle time. If it's a vac leak, and leaning out the mixture this much, why does it idle fine? Why am I getting no air/fuel errors?
I'm new to the jeep stuff, so looking for some help!
Thanks everyone!
#3
Junior Member
Thread Starter
Join Date: Nov 2014
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
#4
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
The plugs look pretty good, compression looks good. The vacuum is a bit low, but 15-20hg is within the normal spec.
#5
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
it sounds like a faint exhaust leak can be heard
#6
CF Veteran
Join Date: Oct 2015
Posts: 7,357
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
With my '00 vacuum leak problem areas have been the front two lines on the intake manifold. The rubber elbows attached to the plastic lines turn to crap. The very front one is easy. Piece of hose will replace it. The nipple on the intake manifold and the plastic line are the same size. Middle is different sizes. Used this: Dorman Part # 46022 or Part # NOE 6301670 at NAPA. I also replace the little elbow under the MAP sensor. Bought that from Jeep. Part# 53009672.
Last edited by Ralph77; 04-03-2016 at 03:54 AM.
