Need Help Identifying these hoses

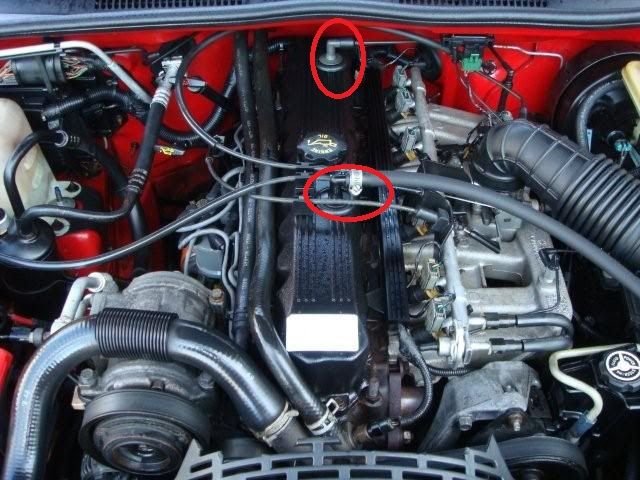

I recently decided to do my valve cover gasket after noticing a lot of oil coming out from the back of the engine bay. I managed to break both hoses coming out of the valve cover. I do not know the names of these hoses nor do I know where to find replacements. The first one comes from the air fiter to the valve cover and the other goes from the intake manifold to the valve cover. I have attached a picture of the hoses I'm talking about.
01 Cherokee Sport
Thank You guys for the help!!!
01 Cherokee Sport
Thank You guys for the help!!!
#2
CF Veteran
Join Date: Oct 2015
Posts: 7,355
Likes: 0
Received 1,530 Likes
on
1,173 Posts
Year: 2000
Model: Cherokee (XJ)
They are PCV elbows.
https://www.napaonline.com/en/p/NDP6301076
Front and backs are not the same. One has the pin hole like in the link above. The other is just a wide open hole. I can never remember which goes in which position. Also buy 2 new grommets.
https://www.napaonline.com/en/p/NDP6301411
You can probably buy them cheaper elsewhere. Any help wall in any auto parts store probably has them.
https://www.napaonline.com/en/p/NDP6301076
Front and backs are not the same. One has the pin hole like in the link above. The other is just a wide open hole. I can never remember which goes in which position. Also buy 2 new grommets.
https://www.napaonline.com/en/p/NDP6301411
You can probably buy them cheaper elsewhere. Any help wall in any auto parts store probably has them.
#3
Member
Thread Starter
Join Date: Sep 2014
Posts: 122
Likes: 0
Received 3 Likes
on
2 Posts
Year: 2001
Model: Cherokee
Engine: 4.0
They are PCV elbows.
https://www.napaonline.com/en/p/NDP6301076
Front and backs are not the same. One has the pin hole like in the link above. The other is just a wide open hole. I can never remember which goes in which position. Also buy 2 new grommets.
https://www.napaonline.com/en/p/NDP6301411
You can probably buy them cheaper elsewhere. Any help wall in any auto parts store probably has them.
https://www.napaonline.com/en/p/NDP6301076
Front and backs are not the same. One has the pin hole like in the link above. The other is just a wide open hole. I can never remember which goes in which position. Also buy 2 new grommets.
https://www.napaonline.com/en/p/NDP6301411
You can probably buy them cheaper elsewhere. Any help wall in any auto parts store probably has them.
#4
CF Veteran
Join Date: Sep 2012
Location: In a large sandbox
Posts: 1,623
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1998
Engine: 4.0
Edit: Adapt as necessary, like this:
Sorry for the poor shots but it's dark out and I was scared!
Last edited by 4WD4EVER; 04-02-2018 at 09:24 PM. Reason: Added images
#6
Senior Member
Rear-Dorman 47057
Front 47079
gromment 42344 Small hole in the rear one I believe. It is easier to get I think. Just take a 3/8th's bit and drill one out for the front. Dorman parts can be found at an Oreilly's
Front 47079
gromment 42344 Small hole in the rear one I believe. It is easier to get I think. Just take a 3/8th's bit and drill one out for the front. Dorman parts can be found at an Oreilly's
