Need help findng an alternator

Subscribe
Jul 10, 2015 | 03:09 PM
  #16
Crown Automotive normally uses Jeep OEM part numbers as their own part numbers.

Lists a 94-96 117 amp. Crown p/n 56026811

Alternator fit for the same type/line of alternators is often because of alternator mounting, case size and connector differences.

There is a Crown alternator that's list to be compatible with 96 ... I'm not sure of the difference, perhaps your mounting is different from a 97 and 98 that uses post terminals for the regulator connection.

http://www.crownautomotive.net/mm5/m...Category_Code=

http://www.ebay.com/itm/Crown-Automo...f2efe0&vxp=mtr

--- http://www.ebay.com/itm/Alternator-Crown-56026811-fits-94-96-Jeep-Cherokee-4-0L-L6-/261759177245?hash=item3cf210121d&vxp=mtr
--- http://www.ebay.com/itm/56026811-Alternator-NEW-OEM-/171831051810?hash=item2801edc622&vxp=mtr
eBay link shows 2.5L and 4.0 L ... I would double check to determine this alternator fits a 4.0 LHD and there is no difference between a 2.5L and 4.0L alternator.

If your vehicle came from the factory with the 117 amp option, stock cabling is minimal. I upgraded mine to 1/0 and there is better overall output and charging even when using a 90 amp alternator. To obtain optimal alternator output you usually need to upgrade the cables from the alternator and going to the battery.

ebay does list some aftermarket alternators and upgrades to be compatible with 96, 97 and 98. If your 96 uses the same alternator mounting, case size and connectors as a 97 then it may be a warranty issue. Some aftermarkets manufactures won't list and warrant oe replacements unless it replaces a standard oem part for a specific year make & model vehicle.

I would locate the part number on your current alternator. Determine if it's 117/120 amp and then cross-reference.

http://www.ebay.com/itm/100-NEW-HIGH-OUTPUT-ALTERNATOR-FOR-DODGE-JEEP-PICKUP-160Amp-ONE-YEAR-WARRANTY-/290413468818?hash=item439dfddc92&vxp=mtr
Reply 0
Jul 10, 2015 | 03:12 PM
  #17
Quote: Anytime you upgrade the amperage of the alt you also have to upgrade the wiring also, like with a kit from kellyswipe.com a member here. I used his kit with my new amp and his is a top quality kit as far as quality and assembly go. This is a must have item as the stock setup was marginal even with the small alt.
The correct address is www.kelleyswip.com. I have 5-90's full cable set on my 87. Price and quality can't be beat. Good point Fred about upgrading cables along with the alternator.
Reply 0
Jul 14, 2015 | 01:09 PM
  #18
This is a good price for a hi output (160 amp) alternator- drop in/plug and play. My local shop charges a little more than that to rewind an alternator to hi output. $89

http://www.ebay.com/itm/252026010867?item=252026010867&viewitem=&vxp=mtr

Reply 0
Jul 14, 2015 | 01:45 PM
  #19
I would still rather get it rebuilt from a local shop than one off eBay.
Reply 0
Jul 14, 2015 | 02:17 PM
  #20
I'm not buying anything from Ebay
Reply 0
Jul 14, 2015 | 03:28 PM
  #21
Quote: I'm not buying anything from Ebay
I don't think Ebay actually sells anything...
Reply 0
Jul 14, 2015 | 08:34 PM
  #22
Quote: I'm not buying anything from Ebay
Have you talked to the shop yet?
Reply 0
Jul 15, 2015 | 07:47 AM
  #23
Quote: Have you talked to the shop yet?

Not yet. I'm not quite ready to get anything done. My wife got laid off in May. She has since found a new job but dosen't get her first pay check until next week. So money is tight at the current moment. I actually picked up a second job at an automotive parts store to help supliment. My employee discount price for a reman 136 amp Alt is around $80. Might go that route after all. I'm running a winch and aux lighting, plus I have been toying around with the idea of replacing the amnual fan with another electric one.
Reply 0
Jul 15, 2015 | 07:08 PM
  #24
Quote: Not yet. I'm not quite ready to get anything done. My wife got laid off in May. She has since found a new job but dosen't get her first pay check until next week. So money is tight at the current moment. I actually picked up a second job at an automotive parts store to help supliment. My employee discount price for a reman 136 amp Alt is around $80. Might go that route after all. I'm running a winch and aux lighting, plus I have been toying around with the idea of replacing the amnual fan with another electric one.
Can you share the part and or stock number of the reman 136 amp alternator for the 1996 XJ?
Reply 0
Jul 16, 2015 | 04:09 AM
  #25
Quote: This is a good price for a hi output (160 amp) alternator- drop in/plug and play. My local shop charges a little more than that to rewind an alternator to hi output. $89

http://www.ebay.com/itm/252026010867...witem=&vxp=mtr

99+ uses a plug connector for the field terminals. Previous years Denso use post connectors.

I once purchased a new ACDelco Denso reman with lifetime warranty from an auto parts store. It lasted around ~20,000 miles. core was only 7 dollars.

Whereas I've used factory OEMs still working well after 150,000 miles.

If you purchase an aftermarket new or reman. I would look for a lifetime warranty.

90 - 120 amps OE alts use a Denso small case whereas 136 (or 130) + use a Denso large case. Basically the same alternator with slightly larger stator, rotor and rectifier.
Reply 0
Jul 16, 2015 | 08:40 AM
  #26

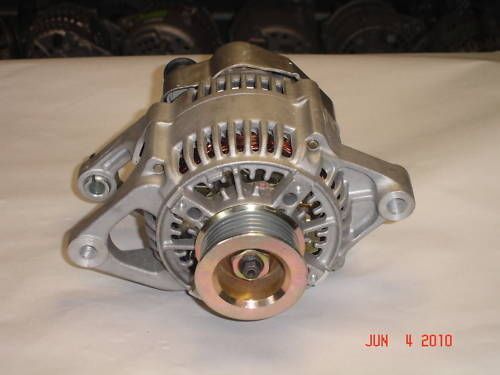

The 136amp upgrade

Some trimming of the Jeep Cherokee alternator bracket may be required to fit.

Ultima part # 05-0442
Ultima Part # 13742
BesTest Part # 05-0442X
ACDelco Part # 335-1185

fits:
1998 Grand Cherokee 5.9 LimitedV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Grand Cherokee LaredoV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Grand Cherokee LimitedV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 Grand Cherokee OrvisV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Grand Cherokee TSIV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 B1500 BaseV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 - 1998 B1500 BaseV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1998 B1500 BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 B2500 BaseV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1998 B2500 BaseV8 - 5.2L vin 2 318ci 5211cc - MFI LPG OHV
1997 - 1998 B2500 BaseV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 B2500 BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
1998 B3500 BaseV8 - 5.2L vin 2 318ci 5211cc - MFI LPG OHV
1997 B3500 BaseV8 - 5.2L vin T 318ci 5211cc - MFI CNG OHV
1997 - 1998 B3500 BaseV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 B3500 BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Dakota BaseV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 - 1998 Dakota BaseV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1998 Dakota R/TV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Dakota SLTV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 - 1998 Dakota SLTV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Dakota SportV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 - 1998 Dakota SportV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1998 Durango BaseV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1998 Durango BaseV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1998 Durango BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
1998 Durango SLTV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1998 Durango SLTV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1998 Durango SLTV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Ram 1500 LaramieV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 Ram 1500 LaramieV8 - 5.2L vin T 318ci 5211cc - MFI CNG OHV
1997 - 1998 Ram 1500 LaramieV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Ram 1500 LaramieV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Ram 1500 STV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 Ram 1500 STV8 - 5.2L vin T 318ci 5211cc - MFI CNG OHV
1997 - 1998 Ram 1500 STV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Ram 1500 STV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Ram 1500 SportV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 Ram 1500 SportV8 - 5.2L vin T 318ci 5211cc - MFI CNG OHV
1997 - 1998 Ram 1500 SportV8 - 5.2L vin Y 318ci 5211cc - MFI GAS OHV
1997 - 1998 Ram 1500 SportV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Ram 1500 WSV6 - 3.9L vin X 239ci 3906cc - MFI GAS OHV
1997 - 1998 Ram 2500 BaseV10 - 8.0L vin W 488ci 7990cc - MFI GAS OHV
1997 - 1998 Ram 2500 BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
1997 - 1998 Ram 3500 BaseV10 - 8.0L vin W 488ci 7990cc - MFI GAS OHV
1997 - 1998 Ram 3500 BaseV8 - 5.9L vin 5 360ci - MFI GAS OHV
1997 - 1998 Ram 3500 BaseV8 - 5.9L vin Z 360ci - MFI GAS OHV
Reply 0
Oct 15, 2015 | 07:44 AM
  #27
Finally got it all done. Went with the 136A ZJ Alt. Drove her into work this morning without issue... so thats good. She had been really slow to start prior to the upgrade. I had priviously made my own battery cables. I don't think I was getting sufficient ground so I re-did them and she pops off great now. Only thing is that the volt gauge still drops lower than I would think it should with the new Alt when I turn on the blower motor. I had to replace the blower motor switch connector because it had melted. I also replaced the blower motor switch and resistor at the same time.
Reply 0
Oct 15, 2015 | 07:56 AM
  #28
Quote: I had to replace the blower motor switch connector because it had melted.

This is an indicator that the Blower Motor might be drawing too many Amps and ready to quit. There is usually a reason why switches melt in the first place. If the new switch is getting hot to the touch, you may still have an issue and this would explain the excessive drop in the charging system when it is on.
Reply 0
Oct 15, 2015 | 08:30 AM
  #29
The voltage gauge is on a shared circuit, and when you turn on blower motor the gauge will show a drop 1-2 volts but system voltage will still be fine. You can fix it by running a dedicated wire to the gauge, bit of a hassle but its the only way to know for sure
Reply 0
Oct 15, 2015 | 09:32 AM
  #30
Quote: This is an indicator that the Blower Motor might be drawing too many Amps and ready to quit. There is usually a reason why switches melt in the first place. If the new switch is getting hot to the touch, you may still have an issue and this would explain the excessive drop in the charging system when it is on.
There was a bad contact on the switch. So I thought that's what caused the melting, but mabye the motor caused the bad contact on the switch. I'll be replacing the blower motor now for sure. Thanks.
