need help with this
hey,

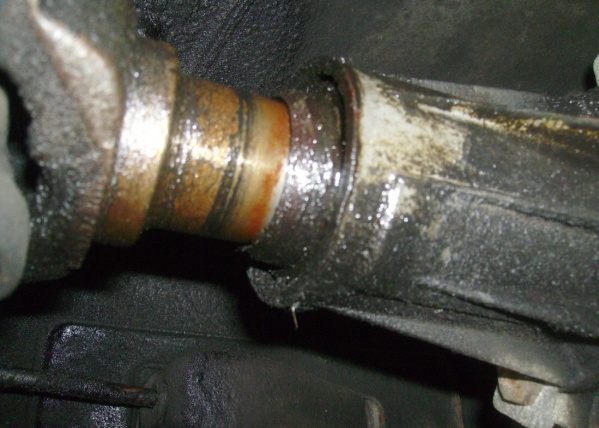

Back: i think this is my rear transoil seal right the first pic of course
how do i replace or repair?

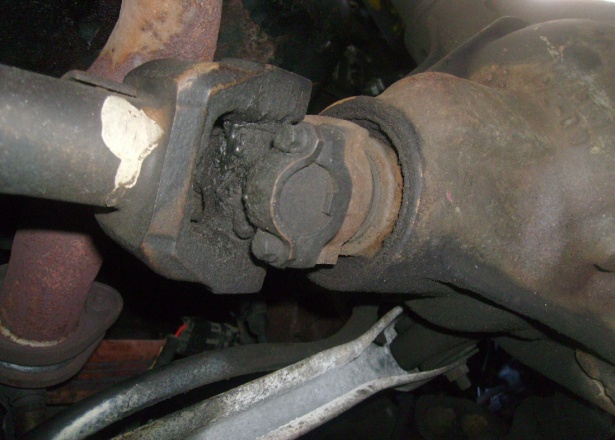

Front: whats the deal with the gunk around the u-joint?
is that narmal
Back: i think this is my rear transoil seal right the first pic of course
how do i replace or repair?
Front: whats the deal with the gunk around the u-joint?
is that narmal
Last edited by SINCITY192; 03-29-2009 at 09:06 PM. Reason: adding pics
03-29-2009, 07:09 PM
#3
CF Veteran
Join Date: Apr 2008
Location: Smiths Station, Al
Posts: 7,661
Likes: 0
Received 13 Likes
on
10 Posts
Year: 87
Model: Wagoneer
Engine: 4.0 I6
Pics would be great and if you are referring to another post please provide links.
03-30-2009, 09:21 PM
#6
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
the first pic is your t case rear output seal. very easy to replace. remove the drive shaft, and pop the old seal out with a big screw driver, or chisel from behind. pop the new seal in, a big socket the size of the seal is helpful to use to drive it into place.
the second pic is just grease around your u joint. doesn't look bad. check to see if your u joint is greasable, if it is, and you haven't greased it, shoot two shots of grease in it.
the second pic is just grease around your u joint. doesn't look bad. check to see if your u joint is greasable, if it is, and you haven't greased it, shoot two shots of grease in it.
03-30-2009, 09:34 PM
#7
Junior Member
Thread Starter
Join Date: Mar 2009
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
the first pic is your t case rear output seal. very easy to replace. remove the drive shaft, and pop the old seal out with a big screw driver, or chisel from behind. pop the new seal in, a big socket the size of the seal is helpful to use to drive it into place.
the second pic is just grease around your u joint. doesn't look bad. check to see if your u joint is grease able, if it is, and you haven't greased it, shoot two shots of grease in it.
the second pic is just grease around your u joint. doesn't look bad. check to see if your u joint is grease able, if it is, and you haven't greased it, shoot two shots of grease in it.
for the t-case output seal: i really need a "how to" on this the part about removing the drive shaft i now its something i need to know how to do.
what do i need to support (w/ jacks) if anything?, what size socket if known? do i lift the jeep?
sorry for so many questions but the haynes manual doesnt get into problems that might happen during the course of the task
oh and can i clean those caked up greasy suspension parts i.e u-joint and with what i would like to clean all the suspension so i can tell what needs replacing
thanks again
Last edited by SINCITY192; 03-30-2009 at 09:39 PM.
Trending Topics
03-30-2009, 09:40 PM
#8
Senior Member
Join Date: Aug 2008
Location: tan house white shutters key's under the flower pot
Posts: 971
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
removing the d shaft is simple. on the axle side of the shaft ther's two straps. should be 10 mm socket i think. remove the two straps, and pry the d shaft towards the t case, it will move in and out by design. once the shaft is away from the axle it will simply slide out of the t case where the seal is. put a drain pan under the seal you're replacing, it will usually leak fluid.
replace the seal as described, and put the d shaft back and bolt the straps back on the axle yoke.
one of the simpler jobs to do.
replace the seal as described, and put the d shaft back and bolt the straps back on the axle yoke.
one of the simpler jobs to do.
