My homemade inner shift boot
02-11-2010, 06:10 PM
#1
Senior Member
Thread Starter
Join Date: Jan 2009
Posts: 562
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: Renix 4.0L
My homemade "middle" inner shift boot

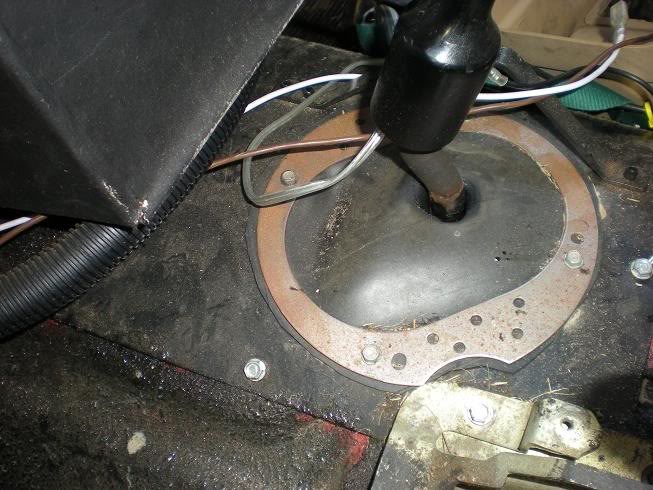

Here is my "middle" inner shift boot. Its pretty simple to do.
I took the stock inner shift boot, and cut off all the rubber, so that all thats left is the metal mounting bracket. Then I cut out a peice of rubber from and old lawnmower inner tube. The new peice needs to be slightly larger than the metal bracket, so that it moves when you shift gears and doesnt mess with the hole. Cut a hole in the center, but a bit closer to the dash. Installation is pretty straight foward.
In neutral
First Gear
Reverse
And other pics
I took the stock inner shift boot, and cut off all the rubber, so that all thats left is the metal mounting bracket. Then I cut out a peice of rubber from and old lawnmower inner tube. The new peice needs to be slightly larger than the metal bracket, so that it moves when you shift gears and doesnt mess with the hole. Cut a hole in the center, but a bit closer to the dash. Installation is pretty straight foward.
In neutral
First Gear
Reverse
And other pics
Last edited by Ritter4.0; 02-11-2010 at 06:24 PM. Reason: changed stuff, realized its not the real inner shift boot
02-11-2010, 07:24 PM
#2
Seasoned Member
Join Date: Nov 2009
Location: sarasota Fl
Posts: 279
Likes: 0
Received 0 Likes
on
0 Posts
Year: 91
Model: Cherokee
Engine: 5.9
That looks pretty good and I dont have any room to pick on anything but I would have made it bigger so that the top sits up higher on the shifter and put a clamp on the shifter so that the whole peice of rubber moves with the shifter and it gives a better seal. Jst my 2 cents.
02-12-2010, 09:58 AM
#3
Seasoned Member
Join Date: Oct 2009
Posts: 254
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2001
Model: Cherokee
Engine: 4.0L
As someone who has battled these things and made some ghetto solutions, that is some nice work there! Well done.
Did you separate your shifter to put that on, or did it slide over the big bulbous part of the shift handle assembly?
Did you separate your shifter to put that on, or did it slide over the big bulbous part of the shift handle assembly?
02-13-2010, 12:18 AM
#4
Senior Member
Thread Starter
Join Date: Jan 2009
Posts: 562
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: Renix 4.0L
Thanks.
If I still had my carpet in, I would have made a better seal
And yes, the rubber was stretchy enough to fit over the bulb part, so I didn't pull it apart.
As you can tell by the oil stain on it, I need to replace my actual inner shift boot.
After I was done, I put the mini console and outer shift boot back on.
If I still had my carpet in, I would have made a better seal
And yes, the rubber was stretchy enough to fit over the bulb part, so I didn't pull it apart.
As you can tell by the oil stain on it, I need to replace my actual inner shift boot.
After I was done, I put the mini console and outer shift boot back on.
