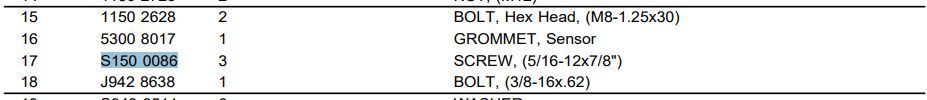

Could some kind soul please confirm the size of the coil spring retainer clip screw on a Dana 30 for 91’ through 93’. The MOPAR part number is S1500086.

According to Mr. Google, several entities report the specs on that part number to be 5/16” - 12 X 7/8”.

This one is driving me insane 🙄
Reply 0
Apr 28, 2019 | 07:19 PM
  #2
Dave51's Avatar
CF Veteran
5 Year Member
Liked
Dave51
CF Veteran
close
  • Join Date
    Jan 2017
  • Location
    Connecticut
  • Posts:
    3,413
  • Year
    2000
  • Model
    Cherokee (XJ)
  • Engine
    4.0
  • Likes:
    28
  • Liked:
    399 Times in 357 Posts
Reply 0
Apr 28, 2019 | 07:27 PM
  #3
Rlmx's Avatar
Thread Starter
Seasoned Member
Rlmx
Seasoned Member
close
  • Join Date
    Oct 2017
  • Location
    NW OH
  • Posts:
    325
  • Year
    1991
  • Model
    Cherokee (XJ)
  • Engine
    4.0L L6 OHV 12V
  • Likes:
    10
  • Liked:
    15 Times in 14 Posts
Quote:
Originally Posted by Dave51
Thank You!!!!!

Very strange size. Especially given that there is a nut in there.

One of the damn things is broken off on one side in my Dana 30. And i am not the guilty party... for once.

The other oddity here is that there are 10mm bolts in there. But I knew it was wrong because the bolt kept turning out with little resistance.
Reply 0
