missing carb piece
#1
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
missing carb piece

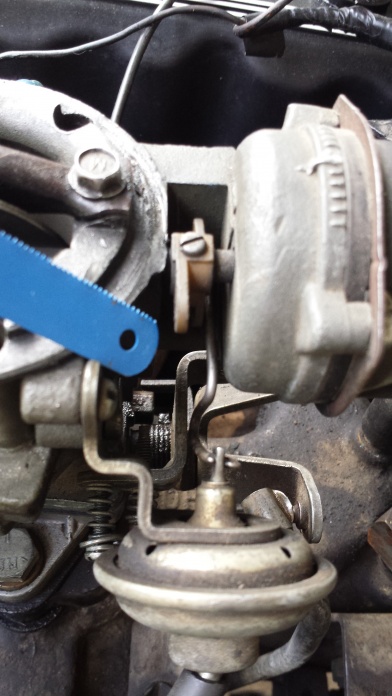

I am missing the arm that goes from the choke down to open and close choke. I tried to build one but didn't work.

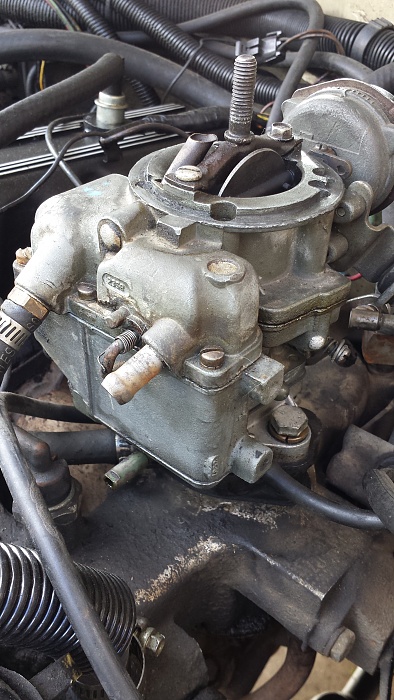

its a carb by Carter for Motor craft on my 1985 jeep 4 cyl. 2.5lt.
anyone have this arm or know where to buy Carter carb parts?
its a carb by Carter for Motor craft on my 1985 jeep 4 cyl. 2.5lt.
anyone have this arm or know where to buy Carter carb parts?
Last edited by redbullmorton; 05-18-2014 at 01:20 PM.
#2
Junior Member
Thread Starter
Join Date: Dec 2010
Location: Coeur D'Alene, Idaho
Posts: 57
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1985
Model: Cherokee
Engine: 2.5 lt
Not sure which #'s to go off of on carb? it has 2 different #'s
on the front of bowl it has #2358
on the body of carb it has #2587
on the front of bowl it has #2358
on the body of carb it has #2587
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
If I were to try to fabricate one, I'd find one longer, like 4'', that has the top "L" and the groove for the clip. That could be cut/bent with the "Z" to fit into the bottom, given the 7/8" bend over to where the L comes through for the clip.
Making it with coat hanger, the bottom "Z" and the rest should be pretty easy. How to hold the top 90* L in there, could be a problem. Larger throttle linkage has a nifty clip that holds it in and clips on the shaft. I've done it with fine wire, but it was not a permanent fix.
Making it with coat hanger, the bottom "Z" and the rest should be pretty easy. How to hold the top 90* L in there, could be a problem. Larger throttle linkage has a nifty clip that holds it in and clips on the shaft. I've done it with fine wire, but it was not a permanent fix.
