LSD additive for rear or both diff's?
Thread Starter
Junior Member
Joined: May 2011
Posts: 46
Likes: 0
From: Solo , Indonesia
Year: 1996
Model: Cherokee
Engine: 4.0 Lt HO
LSD additive for rear or both diff's?

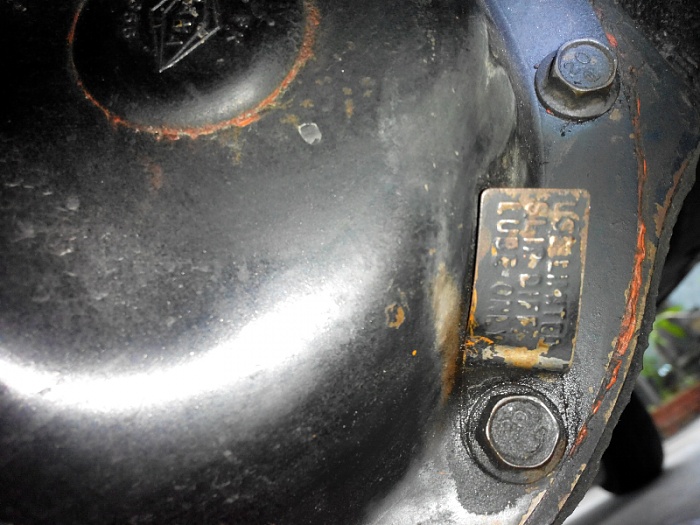

I have a 1996 Jeep cherokee 4L HO and a rear Dana 40 wich has a tag on it that suggests only to use Limited Slip Differential additive. Does this also count for the front differential?
Thanks before.
Thanks before.
Senior Member
Joined: Jun 2013
Posts: 579
Likes: 1
From: Wilton, CA
Year: '93
Model: Cherokee
Engine: 2.5L I4 (Mercedes Turbo Diesel planned)
If the rear says to use limited slip fluid ONLY, then I'd follow that direction. The front however....I don't believe the front diff's have limited slips, but correct me if I'm wrong somebody!
If mine had that tag like yours, then that's what I'd use.
If mine had that tag like yours, then that's what I'd use.
Seasoned Member
Joined: Jul 2013
Posts: 503
Likes: 0
From: WA
Model: Cherokee
Don't fill the thing with friction modifier. Add a little bottle of it with the gear oil. And it is only the rear. Stock axle for that year would not be a dana 44. Can you show a pic of the whole cover?
Senior Member
Joined: Oct 2011
Posts: 731
Likes: 0
From: St. Albert
Year: 1989
Model: Cherokee
Engine: 4.0L I6
It's a D35. Put the little bottle of friction modifier in the rear diff along with your favourite flavour of gear oil (75w90 for "regular duty" and 85w140 for towing IIRC) I doubt you have a limited slip in the front, no XJ's ever came stock with them; fill it up with the same fluid as the rear, no friction additive.
Thread Starter
Junior Member
Joined: May 2011
Posts: 46
Likes: 0
From: Solo , Indonesia
Year: 1996
Model: Cherokee
Engine: 4.0 Lt HO

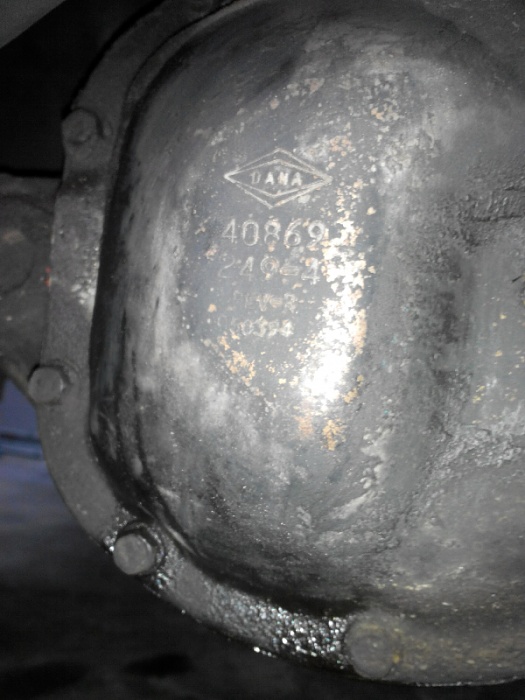

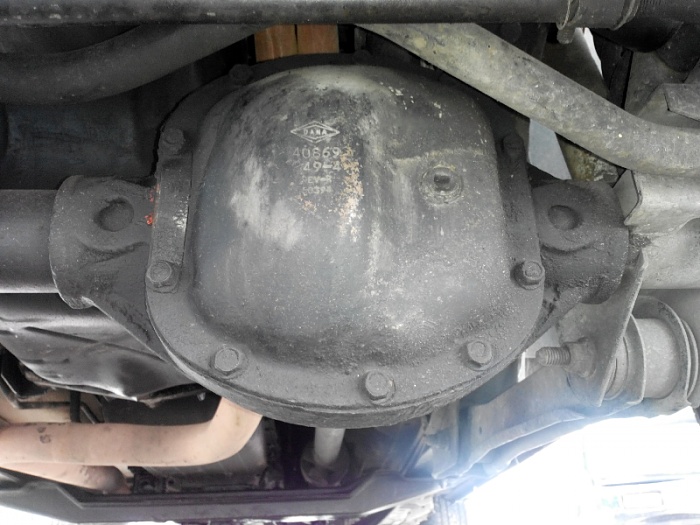

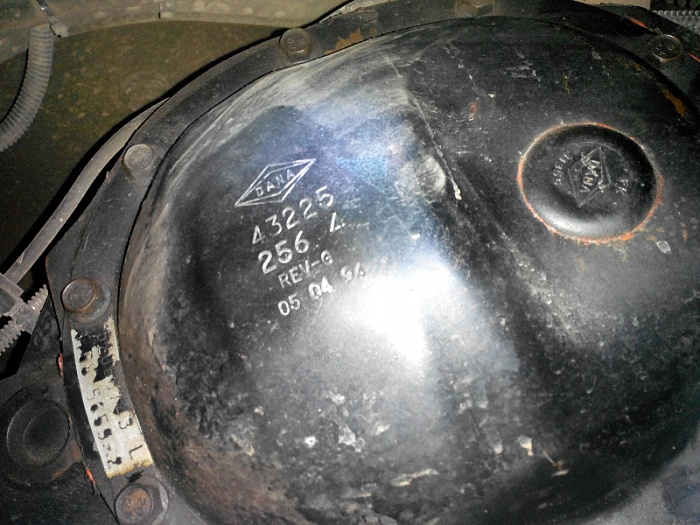

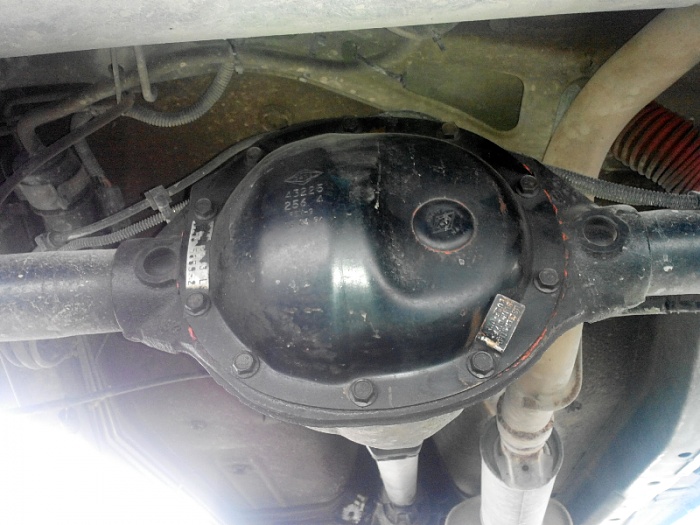

This the whole picture of my rear diff. By the way im living in Indonesia. It has a right sided steering wheel. I only know LSD in a solid form. Hahaha.. . There is another thing. On the mopar LSD bottle. It writes that the mixing ratio should be 2-5% of oil weight. So assuming the diff takes around 1200 ml. So i will be using around 60 ml right. A bottle has 150 ml.
Trending Topics
Member
Joined: Jan 2013
Posts: 146
Likes: 0
From: Edmonton,Canada
Model: Cherokee
Engine: 4.0 H.O
I have a LSD rear d35, when i changed my rear diff oil with amsoil severe gear GL-5 i didn't add the slip lock additive. I have had no diff chatter. Still contemplating whether I should add it or not....
Thread Starter
Junior Member
Joined: May 2011
Posts: 46
Likes: 0
From: Solo , Indonesia
Year: 1996
Model: Cherokee
Engine: 4.0 Lt HO
CF Veteran
Joined: Nov 2009
Posts: 8,172
Likes: 17
From: The Republic of TEXAS
Year: 1998
Model: Cherokee
Engine: 4.0L HO
A clutch type limited slip diff is a traction enhanced diff (torque to both wheels). The additive makes the clutches slip more/easier, thus the diff performs more like a worthless open diff, but it will be quiet/no chatter. I would much rather have equal torque to both wheels (and a little chatter in a tight turn) than a quiet limited slip that slips a lot and performs more like open diff.
CF Veteran
Joined: May 2008
Posts: 3,018
Likes: 23
Year: 1988
Model: Cherokee
Engine: AMC242
However, note that adding FM to the full stock of gear oil and putting it where it's not needed won't cause any trouble - gears won't notice the difference.
Seasoned Member
Joined: Nov 2011
Posts: 372
Likes: 0
From: Morgantown WV
Year: 1996
Model: Cherokee
Engine: 4.0
If the diff has no chatter, do not use the additive. I never use gear oil (in a clutch type lsd) that already has the additive. If the lsd chatters a lot in a tight turn, only then will I add half a tube/bottle of the additive and see how that goes. A really tight clutch pack may need the whole tube/bottle of additive. A clutch type limited slip diff is a traction enhanced diff (torque to both wheels). The additive makes the clutches slip more/easier, thus the diff performs more like a worthless open diff, but it will be quiet/no chatter. I would much rather have equal torque to both wheels (and a little chatter in a tight turn) than a quiet limited slip that slips a lot and performs more like open diff.
Thread Starter
Junior Member
Joined: May 2011
Posts: 46
Likes: 0
From: Solo , Indonesia
Year: 1996
Model: Cherokee
Engine: 4.0 Lt HO
So do you people use the whole bottle of LSD or just the half? According to the packaging, mix ratio should be 2-5% weight of oil.
