Mcwille117

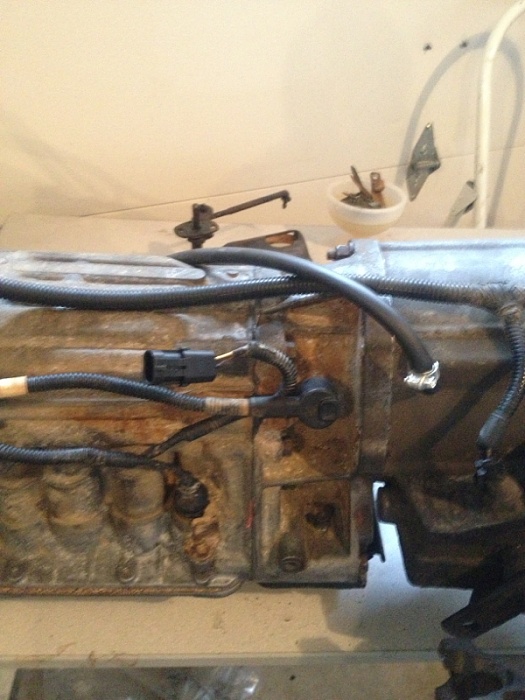

Quick question. I got my trans back from the shop, had them do a bench rebuild after putting in 3, count them 3, junkyard trans in that failed. I got tired of wasting my money in fluid, new filters and my time, so I decided to pay the $1500 to have it built like new with a warranty. When I got it back from them I have to mate it up to the transfer case and put the wires back on. I can't for the life of me remember this connector. I have a faint memory that it doesn't go to anything but I am not willing to risk it. I feel like a ******* that I can't remember after spending so much time on this but well I guess I am just a little burnt out and my brain is fried. Can someone just give me piece of mind and remind me what this connector is for?

Mcwille117

Anyone? It is a 1994.

Parsnip

That looks like it on the back half of the transmission, is it connected to the tranny or to the transfer case?

Mcwille117

It is off the transmissions wire harness.

Mcwille117

But it fits the connector that plugs into the tcase

Parsnip

Ok on the tranny you should have a plug for the nss, tps, and the Cps if its installed already so a total of 3 plugs coming off the tranny

Mcwille117

Cps is not installed but that plug comes off an entirely different harness by the intake. The other two are already plugged in. I seem to remember it not plugging into anything but more than wanting to be sure now I want to know what it is for.

Mcwille117

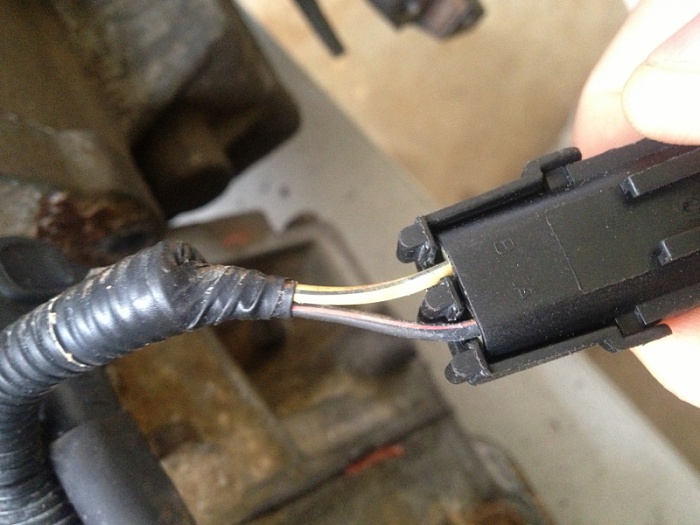

This is really starting to bother me and it is getting very frustrating that I cannot find any wire diagram that shows what it is. One wire is yellow with a black stripe the other is black with a red stripe. I am pretty sure that nothing was connected to it before but I need to know what it is. Can anyone help me?
