SWC custom

hey whats up fellow jeepers im new to the forum and want to know if you guys have any specs and pix of homemade cold air intakes, and 4.0l throttle body swaps onto the 2.5l.. and possibly more info on how to squeese more power out of my 2.5l.. it has a 3'' lift and 31s with a glasspack and cut exhaust (no down turn on tailpipe).. thx for the help.. LOL

jiffy

welcome aboard from sf, ca

BeepBeepImaJeep

turbo kit or swap for a 4.0. or.....buy the new 4.6l strokers from mopar

SWC custom

thx for the welcome,and im in upstate NY

SWC custom

i would but im on a high school budget and its my daily driver cant afford to have it out of commition for a week or so, plus i like the idea of making more power with something that i built myself and could show off to the locals that you know cant do it them selfs lol we all have at least one of them that diss your rig because its better than theirs...

niktheknife

i bought a piece of tubing, and a filter from autozone and just put it on the stock hose, and made "mounts" in the stock airbox(it just sits snug in there). also put a little baby filter on the stupid hose that put oil all up in my stock air intake, works/sounds great

TrekkerJmm

I found a great price on a CAI here is the link http://www.etrailer.com/p-AFE54-10422.htm ...Tj

guest03

https://www.cherokeeforum.com/f2/hom...-intake-10520/

SWC custom

im doing about the same thing but with a shield around the air filter ill post picks after i get it set up

98xj_john

have a k&n that came off the turbo of my boat. Fits on my fathers 7.3 intake. With plastic pipe in place of ribbed section. Also I have an do bored throttle bodies. 50+ shipping. Also heat wrapped haeder an flowmaster. Also hood vents are helpfull

FlyingLow

https://www.cherokeeforum.com/f2/bui...-intake-18150/ A few ideas.

96Cherokee113

I'm pretty sure the 4.0 throttle body goes right on the 2.5L. Get one from the junkyard and bore it out. It tapers down to 55mm at the bottom section, so just bore that and make sure you don't sand anywhere near the butterfly plate. Buff it with a polishing wheel to remove all the dust and it should be perfect. Then toss a CAI on it and it should be a little more peppy.

98xj_john

I will post pics of my intake. Its super haggard but it works an screams.

SWC custom

thx guys for all the help umm i started tonight on my CAI tonight but of corse i ran into some probs like the template tht i got off of here forgot where is for a 4.0l which has way less room than my 2.5l so now tommarow night its on to the remaking of my template... i think tht im goint to mabey have it powdercoated red if my buddy has some but if not gloss black.... ohh i used a mini air filter on the vent tht runs into the air box from the valve cover...... if u have any more info on mods for the 2.5l plz let me know....umm any one have any pics or detailed wright ups on the 4.0l throttle body swap...~~

SWC custom

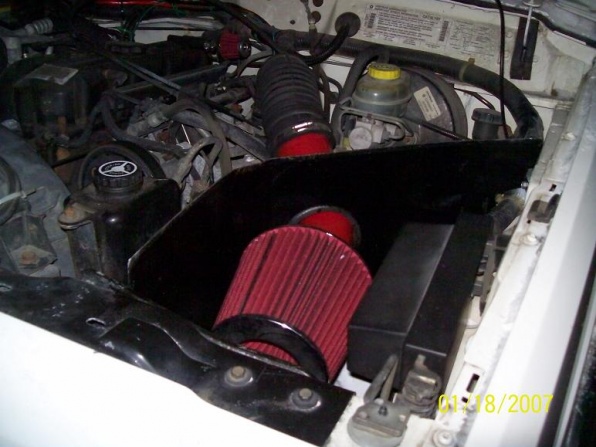

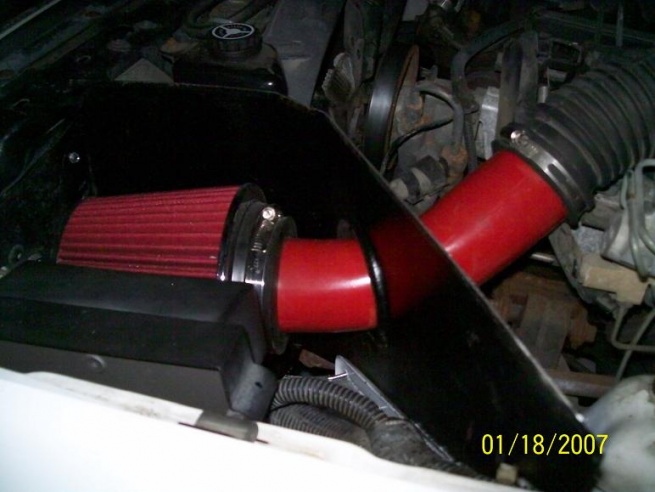

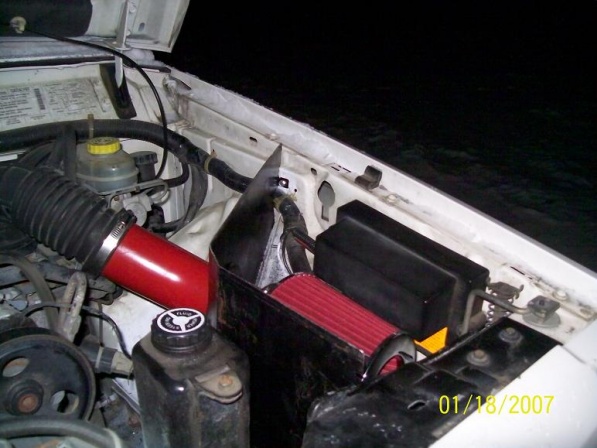

yup so i got my airintake done who wants to see it now i just need my 4.0l throttle body and spacer so tht i can do my throttle body swap....ill post my pics...i used a lil air breather for the vent on the valve cover, a air filter from addvanced auto, and a pice of 18 GA steel red and black rattle cans and a pice of 3'' stock ford f350 exhaust pipe off of dads old truck... made template out of foam boad tht i got for free it cost me like 51.63 for every thing tht i had to buy i had the steel and pipe i bought the rest.... here are my pics
