its hot in here..
#1
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
its hot in here..
2000 Cherokee. Heat is unbearable its nice since its winter but I can't leave it on. Its like the **** form red to blue hot or cold isn't working. Any ideas I did try to search not much found.
Thanks in advance
Thanks in advance
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It sounds like you Blend Door Actuator isn't working.
After I finish drinking these beers I'll fire up my Photobucket and post a pic of the Blend Door Actuator circuit.
After I finish drinking these beers I'll fire up my Photobucket and post a pic of the Blend Door Actuator circuit.
#3
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Here's a schematic of your Bend Door Actuator circuit. It also shows the actuator, as view under the HVAC Unit.
Using a strong (bright) flashlight, position yourself in the passenger footwell so you can see up under the HVAC Unit towards the floor air outlet, at the carpet level. Start the engine and using the flashlight look at the Blend Door Actuator, move the temp selector on the AC Heat control panel from Red to Blue and back. You should be able to see the actuator move from stop to stop. It moves slowly. The motor intermediate drive shaft piece is what you will be looking at. If you can feel/hear the actuator motor run but the intermediate drive shaft isn't moving the drive is defective, if the motor isn't running, fuse 25 in the Junction Block (JB) may be blown or the motor is bad. First thing is to check fuse F25 in the JB. However, know that if F25 is blown, your blower motor won't be working either.
Check it out.
Using a strong (bright) flashlight, position yourself in the passenger footwell so you can see up under the HVAC Unit towards the floor air outlet, at the carpet level. Start the engine and using the flashlight look at the Blend Door Actuator, move the temp selector on the AC Heat control panel from Red to Blue and back. You should be able to see the actuator move from stop to stop. It moves slowly. The motor intermediate drive shaft piece is what you will be looking at. If you can feel/hear the actuator motor run but the intermediate drive shaft isn't moving the drive is defective, if the motor isn't running, fuse 25 in the Junction Block (JB) may be blown or the motor is bad. First thing is to check fuse F25 in the JB. However, know that if F25 is blown, your blower motor won't be working either.
Check it out.
#4
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0

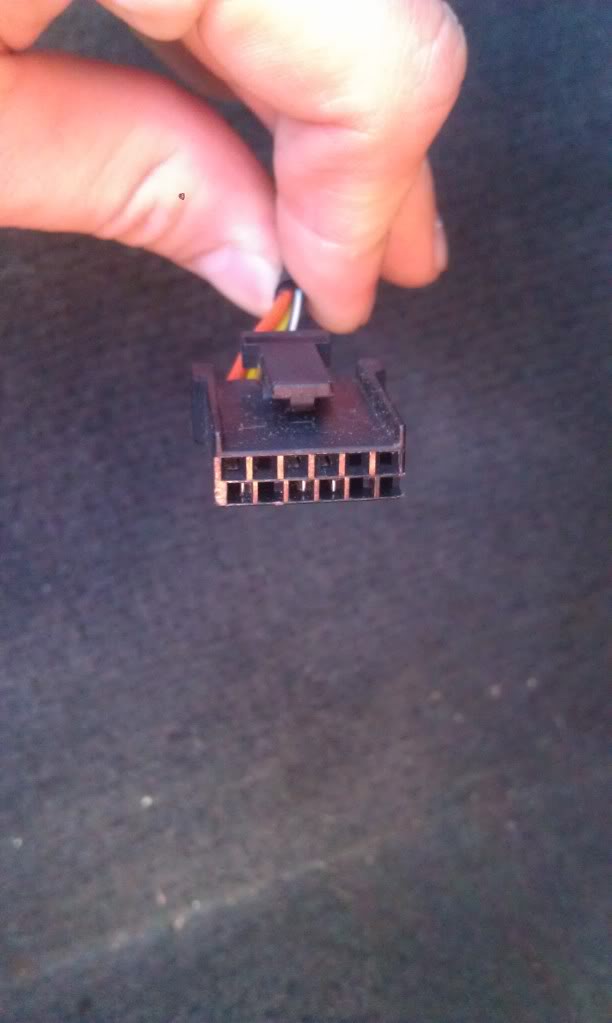

Thank you.! Will be having a few myself. Probably will mess around with it this weekend real quick I found this wire when I took a quick look today couldn't see a home
Ps not fuse blower motor is working great!
Ps not fuse blower motor is working great!
#7
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
How long have you owned this Jeep, and how long have you had this problem?
Connectors just don't magically detach themselves. When you plug it back in and it blows fuse 25 you'll know why it was detached.
Connectors just don't magically detach themselves. When you plug it back in and it blows fuse 25 you'll know why it was detached.
Trending Topics
#9
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Owned it for about 2months still working on all the tweeks. Guy gave it to me needed a motor and couple things.
#10
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
The PO is an **** orifice for not telling you he pulled the actuator.
Ask him why he pulled the actuator.
The Blend-Air Door is notorious for its top pivot bushing to go bad and lock up the door. I saw a website once that had a fix for replacing the bushing, but I think it required the HVAC Unit to be removed.
You might try to move the door from the bottom shaft and see if it moves freely. If the door is locked up or there is a lot of resistance to movement, the door bushing may be shot.
If it does move freely, and the PO doesn't have the actuator assembly any more, try to get one from the junk yard. 1999-2001 XJ only. '98 and before XJ actuators were cable operated.
Before bolting a replacement actuator assembly in place, attach the electrical connector to it and run the temp control through from hot to cold and see if the actuator responds.
Before installing a replacement actuator, the door would have to be positioned to either full hot or full cold and the actuator run to a corresponding position. I'd have to check my XJ and see which direction the door turns for hot or cold. If you get to the point of replacing the actuator let me know and I'll check my XJ for door positioning (it's too cold out to dick with it now).
BTW, you don't have to have the engine running to check the operation of the actuator (like I previously stated) just turn the ignitionkey to RUN.
Here's the R&R procedures:
Ask him why he pulled the actuator.
The Blend-Air Door is notorious for its top pivot bushing to go bad and lock up the door. I saw a website once that had a fix for replacing the bushing, but I think it required the HVAC Unit to be removed.
You might try to move the door from the bottom shaft and see if it moves freely. If the door is locked up or there is a lot of resistance to movement, the door bushing may be shot.
If it does move freely, and the PO doesn't have the actuator assembly any more, try to get one from the junk yard. 1999-2001 XJ only. '98 and before XJ actuators were cable operated.
Before bolting a replacement actuator assembly in place, attach the electrical connector to it and run the temp control through from hot to cold and see if the actuator responds.
Before installing a replacement actuator, the door would have to be positioned to either full hot or full cold and the actuator run to a corresponding position. I'd have to check my XJ and see which direction the door turns for hot or cold. If you get to the point of replacing the actuator let me know and I'll check my XJ for door positioning (it's too cold out to dick with it now).
BTW, you don't have to have the engine running to check the operation of the actuator (like I previously stated) just turn the ignitionkey to RUN.
Here's the R&R procedures:
#11
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
Alright ill see if I can get ahold of him I took a fairly large flat head stuck it in the hole for the shaft it dose turn but not a hole lot very little is that good or bad
#12
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It only turns 90 degrees full travel. Viewing the bottom of the actuator (as seen in the pic in the schematic), Full Clockwise is COLD (Blue), Full Counter Clockwise is HOT (Red).
When/if you are going to install a replacement actuator assembly, plug it in to the connector first before attaching it to the Blend-Air Door shaft. Operate the actuator full travel hot then cold, Stopping at Cold (blue), turn the Blend-Air Door shaft fully Clockwise, then install the actuator asembly. Ops check it for full travel Hot and Cold. You should see the Intermediate Drive Shaft turn in the in the appropriate directions.
#13
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
It's turns about a quarter turn which would be 90 degrees. And it did turn pretty easily when I I got the jeep running I noticed I only have 1 fan setting so I got a resistor then i noticed that the fan wasn't pushing air and it made my dash shake pulled motor and found a rat nest so I believe he was trying to fix the fan and was tearing everything apart and had the actuatormotor out
#14
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
It's turns about a quarter turn which would be 90 degrees. And it did turn pretty easily when I I got the jeep running I noticed I only have 1 fan setting so I got a resistor then i noticed that the fan wasn't pushing air and it made my dash shake pulled motor and found a rat nest so I believe he was trying to fix the fan and was tearing everything apart and had the actuatormotor out
#15
Member
Thread Starter
Join Date: Jan 2013
Location: Centre Hall, Pa
Posts: 128
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000
Model: Cherokee
Engine: 4.0
