injector question

Thread Tools

Search this Thread

Old Jan 19, 2015 | 02:43 PM
  #1
MCCUTCHEON4's Avatar
Thread Starter
Newbie

Joined: Feb 2010
Posts: 21
Likes: 0
From: Pacific North West
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
Default injector question

2001 XJ all original 81,500 miles
It starts and runs fine, drive it 10 or 50 miles, no problem.
Shut it off for a minute then restart and it misses like its dropping a cylinder, eventually clearing up and running smooth again.


I had a parts store plug in to it, the reader said it was miss firing on 2&3.
(I didn't get the codes) I pulled the plugs, they are all white with no oil or carbon build up. I felt that since cylinders 1&2 3&4 5&6 are each on their
own coil and it was 2&3 missing that it wasn't the coil pack. But the guy at the parts store felt it was plugs or a coil so I changed both.


I still have the same missing after restart?



So my question is; Will a faulty injector act up after a restart similar to what I have described? Any other ideas?


Thanks,
Gregg
Reply
Old Jan 19, 2015 | 03:25 PM
  #2
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

I had one I thought was doing just that, leaking, flooding a cylinder (Hot), then missing for a second. Unfortunately I didn't check the old that I removed, just the new before install. It did clear up.

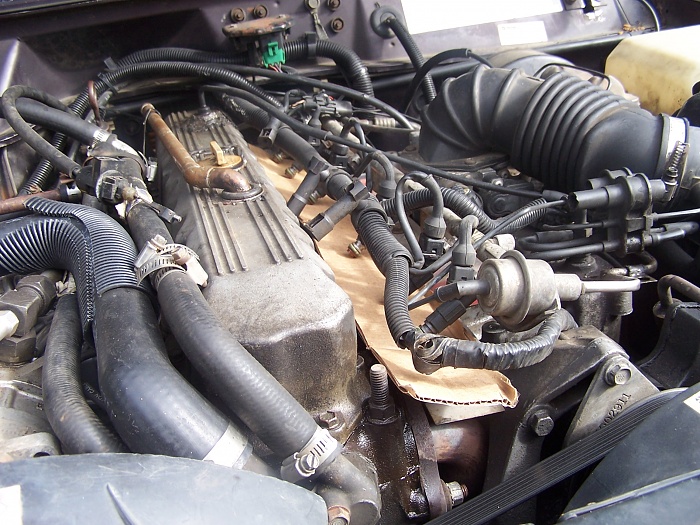

I gave up looking for the photo. You can slip a long narrow piece of cardboard under the injectors while they are still connected to the rail,(at least on a Renix), and check for leaking.
Reply
Old Jan 19, 2015 | 03:37 PM
  #3
DFlintstone's Avatar
CF Veteran

Joined: Aug 2011
Posts: 10,489
Likes: 24
From: Nor-Cal Coast
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Default

Here it is...
Attached Thumbnails injector question-102_0282.jpg
Reply
Old Jan 19, 2015 | 05:43 PM
  #4
Larry's XJ's Avatar
Senior Member

Joined: Nov 2013
Posts: 773
Likes: 1
From: Lapeer, Murder Mitten
Year: 2000
Model: Cherokee
Engine: 4.0 I6
Default

Do you have the insulation on top of manifold/under injectors?
Do you have this problem if it sits long enough to cool down, before it's stone cold?
Reply
Old Jan 19, 2015 | 07:33 PM
  #5
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Sounds like you're getting heat soak in the injectors
Reply
Old Jan 19, 2015 | 07:38 PM
  #6
MCCUTCHEON4's Avatar
Thread Starter
Newbie

Joined: Feb 2010
Posts: 21
Likes: 0
From: Pacific North West
Year: 1998 & 2001
Model: Cherokee
Engine: 4.0
Default

Originally Posted by Larry's XJ
Do you have the insulation on top of manifold/under injectors?
Do you have this problem if it sits long enough to cool down, before it's stone cold?
Yes,

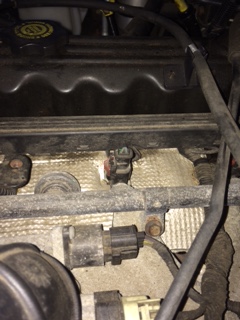

It does have insulation. I took a couple pictures.
Attached Images
