I'm at a total loss!
#1
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
I'm at a total loss!
So....my f***ing leaf spring bolt is stuck to the frame, i've cut it off probably too much, nothing is sticking out. And it's the front shackle we're talking about.
I've been at this for a month or so but i've used a 9mm drill to drill an almost center hole in the bolt and tried a screw extractor (easy out) in it....It bit in quite good but i kept turning the extractor and it wouldn't budge!
So, here's the issues. I have the jeep on jackstands with no access to electricity, only battery driven tools! I can't take it anywhere, since one part of the axle has no leafspring.
The things I can probably do from here are, drill a bigger hole, 10mm and try to jam more of the extractor there. Try and heat it up like the sun with a torch (won't that weaken the frame?)
Since I don't have any access to welding tools and I won't be bringing a generator to power one (semi private garage) I can't cut up the frame/floor and access it from above.
I'm seriously getting tired of this and need tips that are bulletproof, are there any out there?
I've been at this for a month or so but i've used a 9mm drill to drill an almost center hole in the bolt and tried a screw extractor (easy out) in it....It bit in quite good but i kept turning the extractor and it wouldn't budge!
So, here's the issues. I have the jeep on jackstands with no access to electricity, only battery driven tools! I can't take it anywhere, since one part of the axle has no leafspring.
The things I can probably do from here are, drill a bigger hole, 10mm and try to jam more of the extractor there. Try and heat it up like the sun with a torch (won't that weaken the frame?)
Since I don't have any access to welding tools and I won't be bringing a generator to power one (semi private garage) I can't cut up the frame/floor and access it from above.
I'm seriously getting tired of this and need tips that are bulletproof, are there any out there?
#2
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Better find a generator...or maybe a large enough hole saw, because you'll probably have to cut into the uniframe rail behind the welded nut to gain access to it. Removing leaf springs without electricity? I commend your ballsy approach lol
#3
::CF Administrator::
Broken bolts suck. You already have a hole drilled? Just keep stepping up the drill size one size at a time until you get close to the edges. Is the bolt still inside the threads on the backside or were you able to back it out of the threads? Leafspring still on the rig? Did you cut the bolt to get the leafs out? If you cut and the springs are out, and you just have nothing to grab onto to get the threaded portion out of the hole, keep drilling bigger, don't bother with the extractor until you get close to the edge of the threads. You may need to re-tap the threads when done, or at least run a tap through them to clean the threads up. Good luck.
#4
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Broken bolts suck. You already have a hole drilled? Just keep stepping up the drill size one size at a time until you get close to the edges. Is the bolt still inside the threads on the backside or were you able to back it out of the threads? Leafspring still on the rig? Did you cut the bolt to get the leafs out? If you cut and the springs are out, and you just have nothing to grab onto to get the threaded portion out of the hole, keep drilling bigger, don't bother with the extractor until you get close to the edge of the threads. You may need to re-tap the threads when done, or at least run a tap through them to clean the threads up. Good luck.
What would happen if i drill away all of the bolt on one side, since it's not exactly center I have more "meat" to grab on the sides and below than up top (if you imagine the bolt area as a +)
#5
::CF Administrator::
I'd say get it as close to the threads as you can, use some penetrating oil and then attempt to extract. If you can't get a generator, have you thought of using an inverter?
EDIT: you may have to drill into the threads (ever so slightly, be careful if you have to do it) just enough to get some penetrating oil in there, but you will need to re-tap if you do this. I have been able to get it close like that at times and then pick away at the left over material to get it free.
EDIT: you may have to drill into the threads (ever so slightly, be careful if you have to do it) just enough to get some penetrating oil in there, but you will need to re-tap if you do this. I have been able to get it close like that at times and then pick away at the left over material to get it free.
Last edited by Rogue4x4; 01-14-2014 at 09:26 AM.
#6
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
I think Ron's suggesting is your next best approach...just start drilling that sucker out until you start seeing some threads. You might get lucky and the remaining pieces will fall out. Still might need to run a tap through, though.
#7
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Inverter? Not really familiar with the electrical gear
Trending Topics
#8
::CF Administrator::
EDIT: get several drill bits, step up one size at a time. Consider the hole you have as a pilot hole and step up drills one size at a time til you get close.
Last edited by Rogue4x4; 01-14-2014 at 09:33 AM.
#9
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Ah yeah, I googled it and found a couple here....but now I just need a spare battery to run everything then etc....I'd much just prefer using hand tools to get it done but good to know if the s***t hits the fan - which it probably will....
#10
::CF Administrator::
If your jeep starts and runs, just hook up the inverter and idle. Let your alt do the work. Inverters will kill batteries quick.
#11
Senior Member
Yup, in the front shackle box the nut is welded on the inside. Best approach is to open up the box from BELOW. That way any water, etc., will run out and it can dry better preventing rust. Youre going to have to put a new nut on, and that's the only way to do it (well, you could remove the interior and cut from there, but its a LOT more work.
#12
CF Veteran
Join Date: Dec 2012
Location: York, PA
Posts: 4,169
Likes: 0
Received 6 Likes
on
6 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
Yup, in the front shackle box the nut is welded on the inside. Best approach is to open up the box from BELOW. That way any water, etc., will run out and it can dry better preventing rust. Youre going to have to put a new nut on, and that's the only way to do it (well, you could remove the interior and cut from there, but its a LOT more work.
#14
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Yup, in the front shackle box the nut is welded on the inside. Best approach is to open up the box from BELOW. That way any water, etc., will run out and it can dry better preventing rust. Youre going to have to put a new nut on, and that's the only way to do it (well, you could remove the interior and cut from there, but its a LOT more work.
What tool did you use? A torch? An angle grinder would've had trouble getting that small and clean, right?
#15
Senior Member
The nut is WELDED to the inside of that box, no two ways around it.
On your other side it might have come right out, sure, because it wasn't seized. HOWEVER, your old nut is still in there and youll need to get it out. Or you can run the risk of re-using it (FSM says to replace all nuts & bolts when doing this). Personally, Id rather not re-use something like that. But lets just say you do. When you go to torque it to specs and it snaps free, then what? Then youre REALLY screwed because you've got everything back together and NOW the nut snapped free so good luck getting that all apart.

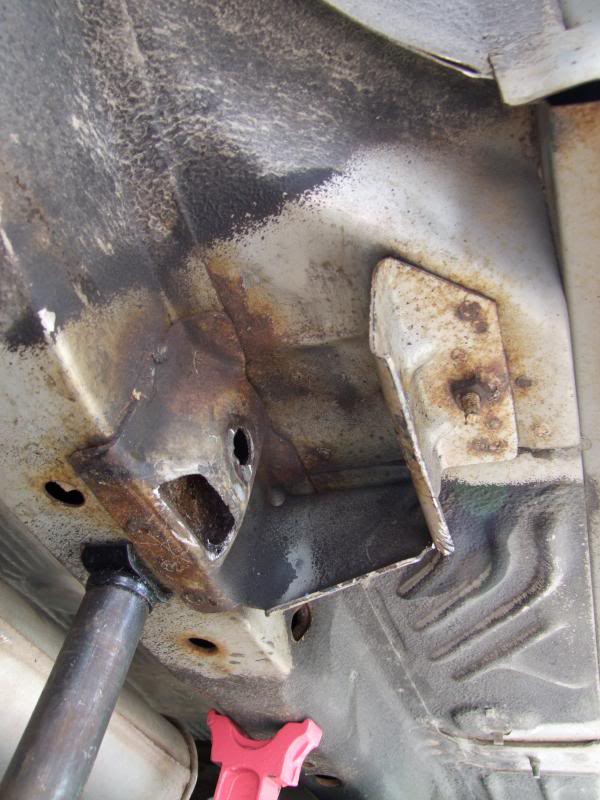

I used an air compressor with cutoff wheel to open it up. You will NEED to do this to do it right. Promise.
On your other side it might have come right out, sure, because it wasn't seized. HOWEVER, your old nut is still in there and youll need to get it out. Or you can run the risk of re-using it (FSM says to replace all nuts & bolts when doing this). Personally, Id rather not re-use something like that. But lets just say you do. When you go to torque it to specs and it snaps free, then what? Then youre REALLY screwed because you've got everything back together and NOW the nut snapped free so good luck getting that all apart.
I used an air compressor with cutoff wheel to open it up. You will NEED to do this to do it right. Promise.
