IAT sensor resistance
#1
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
IAT sensor resistance
What's yours? I'm thinking about just canning mine and putting in a 200 ohm resistor. Thoughts?
Last edited by DFlintstone; 10-20-2013 at 11:21 PM.
#2
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Guess you can't back probe it running, at least not with my meter. Longer story shorter, it was about 19K starting out. It settles around 550, 650 running/ operating temp. Sitting hot, as the heat migrates to it, it drops down to the 400 range, was even hitting 3 something when I came in.
So because of the dynamics of the air flow, it never reports operating temp to the ECU, running. I suppose they designed for that?
Here in the fourth one down it has the chart..https://www.cherokeeforum.com/f51/he...ix-links-1397/
So because of the dynamics of the air flow, it never reports operating temp to the ECU, running. I suppose they designed for that?
Here in the fourth one down it has the chart..https://www.cherokeeforum.com/f51/he...ix-links-1397/
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

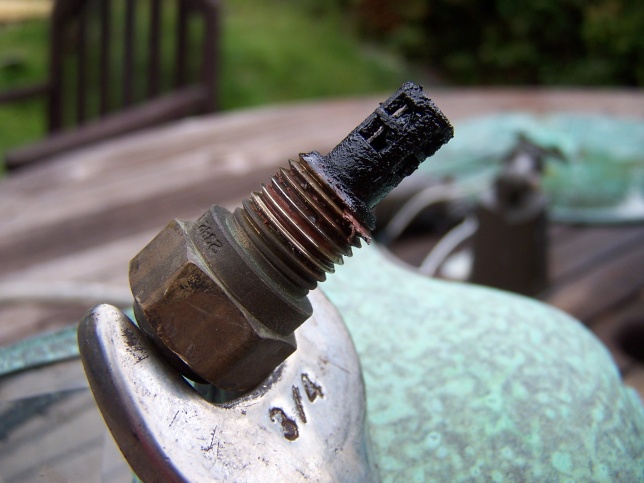

What did you do? Cook a fish on your intake manifold heat shield one time?
But yeah. Why?
But yeah. Why?
#5
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
I relocated mine to the air cleaner housing, it stays cleaner there and gets a more accurate air temp reading than in the intake manifold, I also noticed a very slight performance gain.
#6
CF Veteran
Join Date: Jul 2011
Location: Pompano Beach
Posts: 1,386
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0
IAT is used inconjunction with MAP sensor in a speed density based system to calculate airflow and adjust correct injector pulse width. You might screw up A/F and maybe damage the cat, burn a valve, etc putting a fixed resistor in there.
Edit: By fixed resistance I'm referring to the 200 ohm resistor the OP wants to replace his IAT with. Relocating the IAT wont cause the potential issues mentioned.
Edit: By fixed resistance I'm referring to the 200 ohm resistor the OP wants to replace his IAT with. Relocating the IAT wont cause the potential issues mentioned.
Last edited by offroadordnance; 06-25-2012 at 02:28 PM. Reason: clarification
#7
CF Veteran
Join Date: Feb 2010
Location: Oroville, CA
Posts: 12,367
Likes: 0
Received 19 Likes
on
18 Posts
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
I checked the fuel trim before and after the relocation and did not notice any change. The injector on time is the same as before too.
Trending Topics
#8
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
With the coolant running into my bottle at 194*, with the engine running the resistance was up over 550. 185 @ 212* and, 450 @ 160* are the specks. So right now, it's "reporting" temps well under 160*, while my coolant is at temp. I didn't think to bring it in and put it in water with a candy thermometer. Sometimes one little thing turns out to be "the ticket"..Idk. Maybe I'll brush up on my resistor color codes and do an experiment.
Well it IS functioning. it would be nice to know what someone getting 18+ MPG is seeing from it. I just got off the phone with my Napa (to price it), they couldn't find it.
I was partly fishing to see if someone would pipe up, "it's toast dude!", your numbers are too high!
#9
CF Veteran
Join Date: Dec 2011
Location: Pasadena, MD
Posts: 4,006
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: Renix 4.0
the IAC has been discontinued if i recall correctly.
another thing... why would the air in the intake be as hot as the coolant? i know air absorbs thermal heat pretty fast but i wouldnt think the air in the manifold would be the same temp.
another thing... why would the air in the intake be as hot as the coolant? i know air absorbs thermal heat pretty fast but i wouldnt think the air in the manifold would be the same temp.
#10
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Yea! Darn good point. Just because it shares a chart with the CTS, doesn't mean it should read the same. I had seen this thing routinely get over 20 mpg, and now 16 is more normal. I'm being somewhat methodical, gradually going through trying to see if I can find something...without missing something. CTS is next. (a little more straightforward, being IN the coolant)
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Relocating the IAT to the air cleaner housing does give a small boost in power and no loss in economy. I think it will probably live longer in that environment.
Don, the use of oxygenated fuels in summer blend gas could cause your fuel mileage drop. Check craigslist in your area and see if you can find a Yugo for those short trips.
Don, the use of oxygenated fuels in summer blend gas could cause your fuel mileage drop. Check craigslist in your area and see if you can find a Yugo for those short trips.
#12
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Yea, it's the darn law. I can see paying regestration for a car that just sits, but it burns me I have to pay insurance when I can only drive one at a time. Another $300/year, insurance (+registration), and I'd drive my 74 Celica.
I have my old 750 Honda, for sunny days anyway. ($75/yr insurance, $81! to DMV.)
It's raining, and my Jeep is sort of drippy even when it isn't, but I'm going after the CTS right now...
I'd thought maybe SOMEBODY, might have checked their IAT.....
I have my old 750 Honda, for sunny days anyway. ($75/yr insurance, $81! to DMV.)
It's raining, and my Jeep is sort of drippy even when it isn't, but I'm going after the CTS right now...
I'd thought maybe SOMEBODY, might have checked their IAT.....
#13
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
What's yours? ( Renix IAT resistance? Went at the COOLANT sensor. With the frame up, axle hanging, STILL! sheez. Plenty difficult. I found a "fat 1/16th", nail, would fit snugly enough, into "pins" on the sensor connector. I suppose it might not be imposable to hold regular probes in there, and read the meter, while getting meaningful readings, but I put alligator clips on the nails in the connector. Then I watched it.
Started out very high , 38K or so. It dropped down under 400 soon enough. Here is the catch. It would bottom around 315, then cycle up to 380, then back. The thermostat fluctuating I suppose. So that's not "in spec". I didn't specifically check here, but this (same meter, $20 HF), does therm's, and I'm getting a consistent 195*.
Rockauto shows $20 to $60......For a CTS. Without making a graph from the temp chart, I can see my numbers are high for 195*.
Guess since nobody here with a Renix Jeep knows the resistance or any of there temp sensors, I could just go buy a new one and run a few tanks through there and see if it helped. Lol!
Maybe I'll just put 200 ohm resistors on them both! (my first 10 minutes is usually steep down hill)....
Started out very high , 38K or so. It dropped down under 400 soon enough. Here is the catch. It would bottom around 315, then cycle up to 380, then back. The thermostat fluctuating I suppose. So that's not "in spec". I didn't specifically check here, but this (same meter, $20 HF), does therm's, and I'm getting a consistent 195*.
Rockauto shows $20 to $60......For a CTS. Without making a graph from the temp chart, I can see my numbers are high for 195*.
Guess since nobody here with a Renix Jeep knows the resistance or any of there temp sensors, I could just go buy a new one and run a few tanks through there and see if it helped. Lol!
Maybe I'll just put 200 ohm resistors on them both! (my first 10 minutes is usually steep down hill)....
Last edited by DFlintstone; 06-04-2014 at 06:48 PM.
#14
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Ouch.
I drove one of those things when they first started appearing here.
It was the *worst* vehicle I have ever driven, before or since. And I've owned a Pinto Wagon. With woody sides.
Q) Why do Yugo's have heated rear windows?
A) To warm your hands while pushing it.
Q) Did Yugo's have an anti-theft device?
A) Yes. The nameplate.
I drove one of those things when they first started appearing here.
It was the *worst* vehicle I have ever driven, before or since. And I've owned a Pinto Wagon. With woody sides.
Q) Why do Yugo's have heated rear windows?
A) To warm your hands while pushing it.
Q) Did Yugo's have an anti-theft device?
A) Yes. The nameplate.
#15
CF Veteran
Thread Starter
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
HA! We finally put the "3rd generation" engine in the Vega GT hatchback. With the right sleves, AND, (crucial), the added coolant passages right up by the gasket, it still sit's here with 206K on it. (GF melted it with a blown heater hose), "I was only a mile from home when the light came on". That mile climbs almost 1000 ft...
