i think im stuck in 4wd high
#1
CF Veteran
Thread Starter
Join Date: Aug 2008
Location: palm desert,ca
Posts: 1,313
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: 4.0
i think im stuck in 4wd high
the lock lite is on and when i do a u-turn it grabs up front like a sputtering grab. the 4wd handle is all the way frwrd and down, wth am i doing wrong here?
#7
CF Veteran
Join Date: Nov 2008
Location: Metro Denver, CO
Posts: 1,735
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L
Trending Topics
#8
CF Veteran
Join Date: May 2008
Posts: 2,914
Likes: 0
Received 5 Likes
on
4 Posts
Year: 1987
Model: Comanche
Engine: I6 4.0L
Dont do a burn out thats a lot of stress on pavement besides if your braking during it it wont tell you anything when ever mine sticks i do rock it back in forth forward and reverse for around 50 feet in each direction it works pretty well
good luck
good luck
#12
CF Veteran
Join Date: Nov 2008
Location: Metro Denver, CO
Posts: 1,735
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L
#13
CF Veteran
Thread Starter
Join Date: Aug 2008
Location: palm desert,ca
Posts: 1,313
Likes: 0
Received 1 Like
on
1 Post
Year: 1987
Model: Wagoneer
Engine: 4.0
the jeeps for fun and on the weekends, not a dd. and i have the front end taken off so no headlights, i dont want to hit a kid in the neighborhood, i will try today though, thanks you guys
#14
CF Veteran
Join Date: Nov 2008
Location: Metro Denver, CO
Posts: 1,735
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1987
Model: Cherokee
Engine: 4.0L
Good luck, let us know how it goes.
#15
Member
Join Date: Nov 2008
Location: Kennedale, Tx
Posts: 173
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1995 2WD & 1988 4WD
Model: Cherokee
Engine: 242

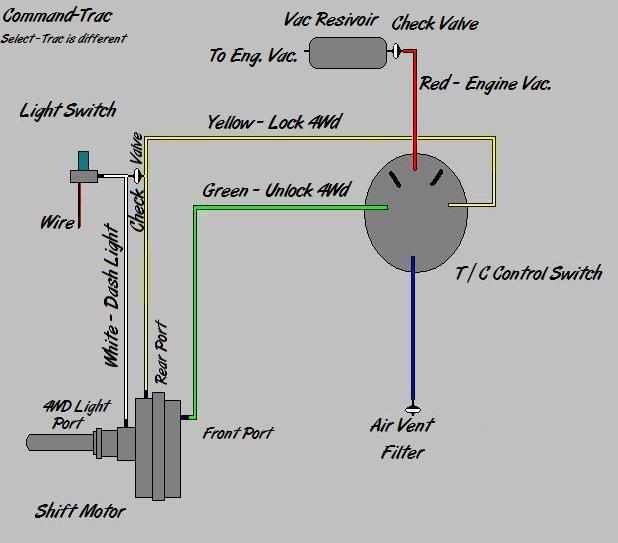

My light was on also, but I think that the axle motor was stuck, after reading and messing with the hoses and going forward and reverse for half the day the light works now , but it was like that when i bought it a couple weeks ago, in the process i made this diagram, maybe it will help. the diagrams online and in the book didn't tell you everything.
-only thing is that if the blue line hooks up to anything.
-and when the vacuum motor dose ever go out im going to a cable setup,
Do you have Command-Trac 0r Select-Trac ?
You can apply vacuum to unlock the axle, and raise up the right front and turn the front wheel to verify.
-only thing is that if the blue line hooks up to anything.
-and when the vacuum motor dose ever go out im going to a cable setup,
Do you have Command-Trac 0r Select-Trac ?
You can apply vacuum to unlock the axle, and raise up the right front and turn the front wheel to verify.
Last edited by X-J; 12-09-2008 at 03:37 PM.
