HV/AC runs on defrost only
Ive got a 98xj that doesnt switch to any vents other than defrost.
Vacuum system seems to be working fine. Cruise control has no issues. I also disconnected every vacuum link from the ball to the engine block and tried to blow air through to check for leaks. Doesnt seem to have any leaks.
Is replacing my control switches the next step?
Vacuum system seems to be working fine. Cruise control has no issues. I also disconnected every vacuum link from the ball to the engine block and tried to blow air through to check for leaks. Doesnt seem to have any leaks.
Is replacing my control switches the next step?
#2
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Ive got a 98xj that doesnt switch to any vents other than defrost.
Vacuum system seems to be working fine. Cruise control has no issues. I also disconnected every vacuum link from the ball to the engine block and tried to blow air through to check for leaks. Doesnt seem to have any leaks.
Is replacing my control switches the next step?
Vacuum system seems to be working fine. Cruise control has no issues. I also disconnected every vacuum link from the ball to the engine block and tried to blow air through to check for leaks. Doesnt seem to have any leaks.
Is replacing my control switches the next step?
Look for a broken tube to the HVAC check valve/tee. Not all XJ's have a check valve. If you have a check valve and it's defective the HVAC vacuum system may not work but the cruise control will.

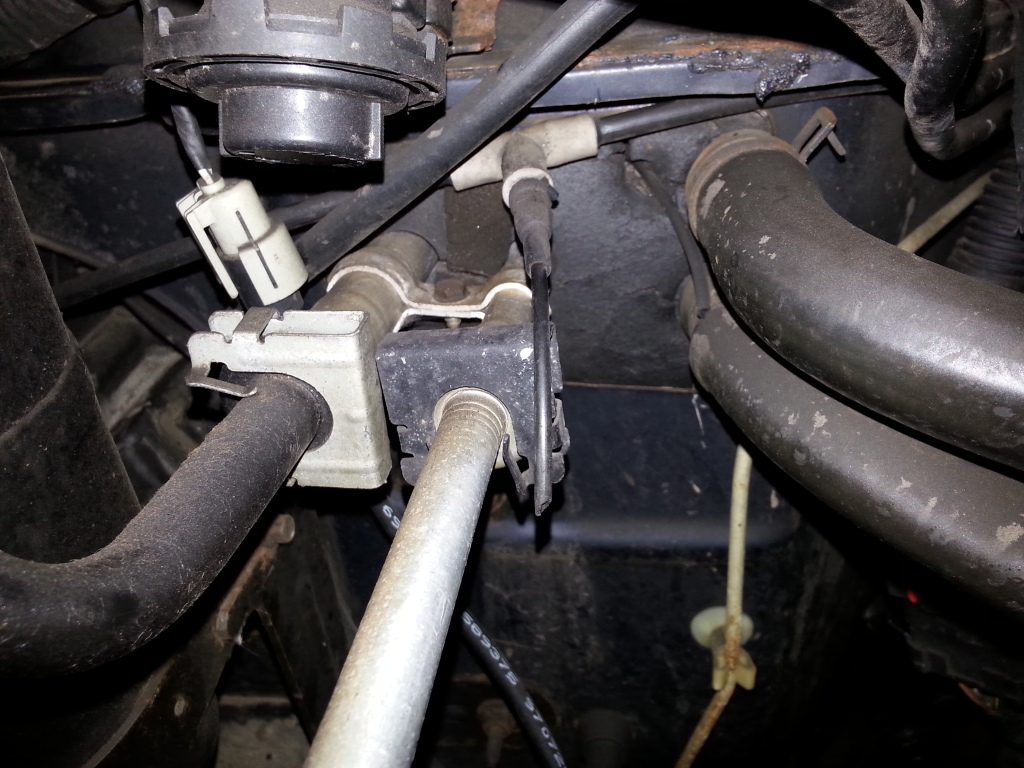

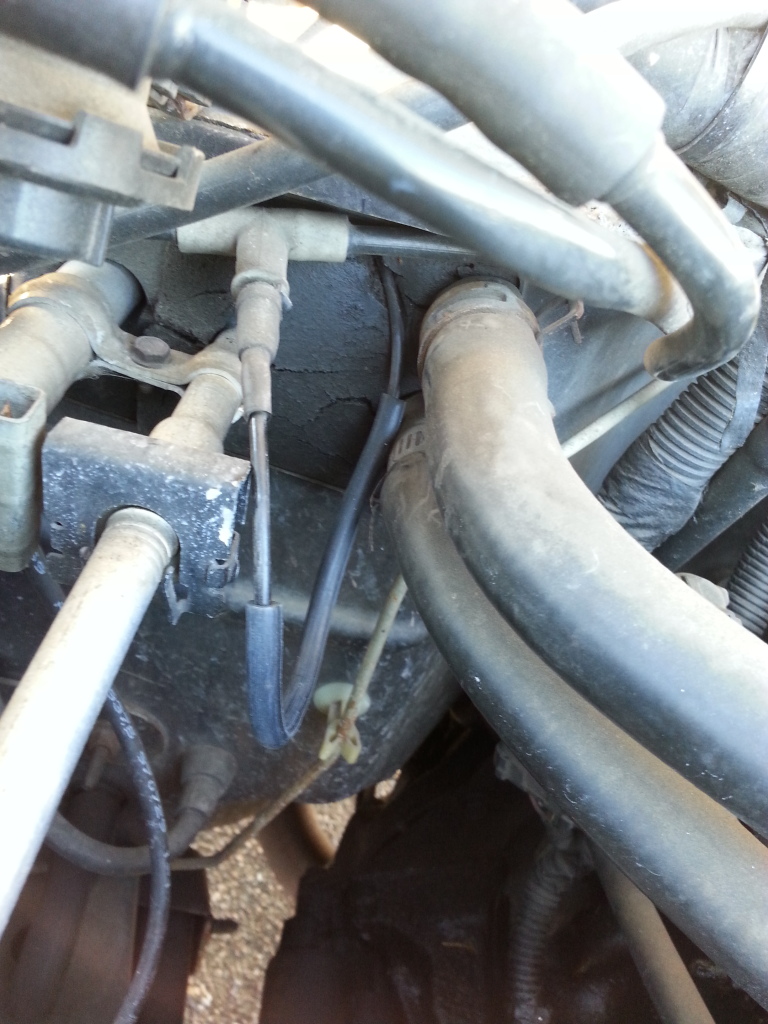

Fix for broken tube:

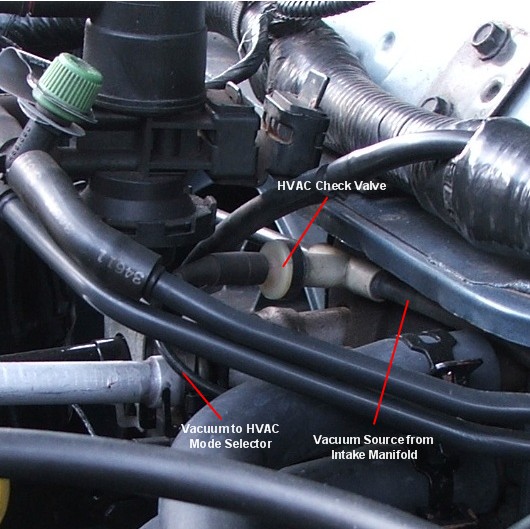

HVAC Check valve:
#3
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Pikeville, KY
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
Thanks for the thorough reply. My HVAC selector hose was cracked and I have repaired it like in the picture. However this did not resolve the issue.
What should I look at next?
What should I look at next?
#4
Member
Join Date: Feb 2014
Location: north of the Rio Grande, south of the Red, east of the Pecos, west of the Sabine
Posts: 172
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Comanche
Engine: 4.0
Those plastic lines are difficult to thoroughly check. You found one leak, and you likely have more. Check every inch with your fingers as well as your eyes. Any rough spots you can feel are likely to be a break or abrasion where a leak will occur.
#5
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0

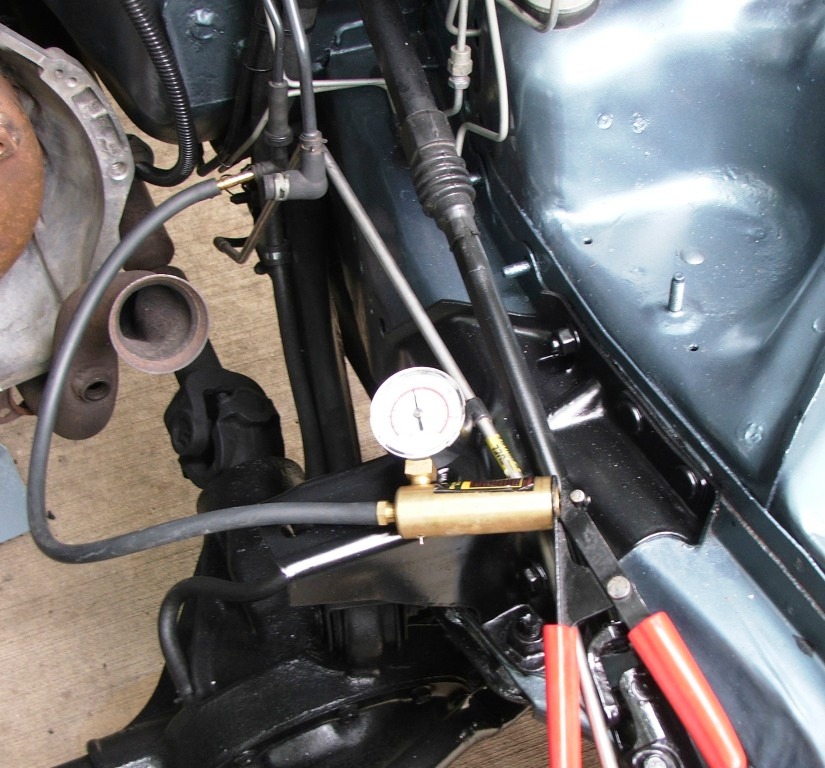

See pic. I removed my engine so I could show you where you plumb it in. :-)
The HVAC door actuators only need around 8 in/hg to operate. You can pump the system down to around 20 in/hg and let it sit. If it holds the engine bay vacuum system is tight.
If it holds, you can check the operation of each HVAC door one at a time. Listen for the door(s) to operate. You'll have to pump it down often to do this.
Edit: Forgot to post the pic...silly goose.
#6
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Pikeville, KY
Posts: 39
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
As it turns out the issue did resolve. It was the selector line repair that did it. It just took my xj a commute to normalize the pressure. Thanks for all your help CCKen.
