How to remove this dash piece? '96
Hey all,

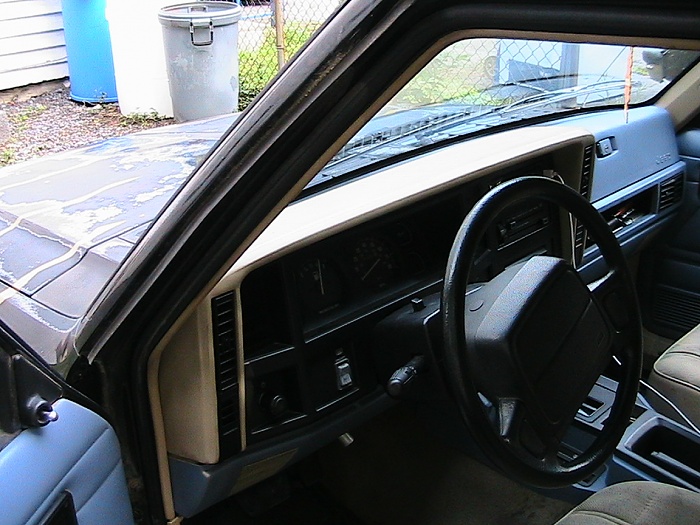

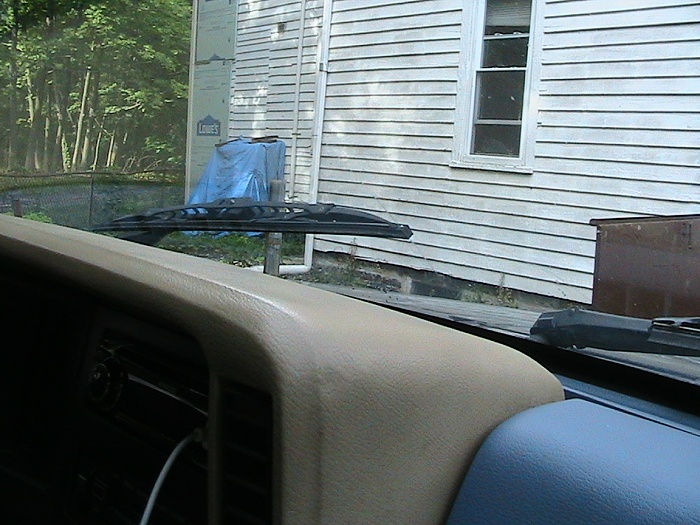

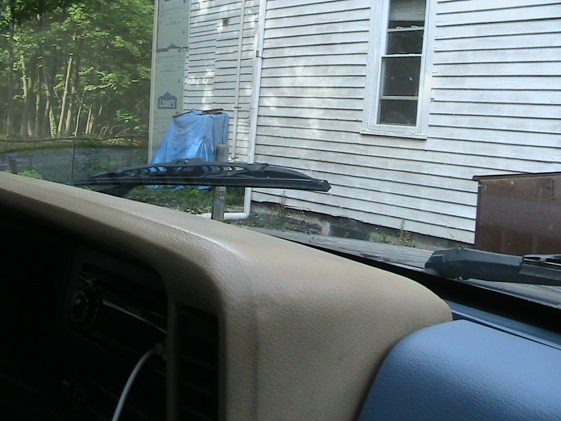

I'm in the process of repainting my interior (blue) but I can't get this one piece out (tan) I took the best pictures the best I could in order to point out the part. Does anyone know if this actually comes out?
I'm in the process of repainting my interior (blue) but I can't get this one piece out (tan) I took the best pictures the best I could in order to point out the part. Does anyone know if this actually comes out?
#2
Seasoned Member
Join Date: Oct 2010
Location: Colorado Rocky Mountains
Posts: 486
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
the haynes manual shows where all the screws are... there are some vertical screws up under the windshield, maybe under the defrost cowl above the dash, think a stubby screwdriver would help there. There are some sideways ones down below (gotta take the lower dash panel off to see them, they're up in there) that you loosen and then it pivots out towards the seat if I remember correctly. There may be some screws behind the trim, kinda by the gauge cluster too, I forget. It definitely has a lot of screws, but it definitely comes out!
Last edited by Potatowalker; 07-27-2011 at 05:04 PM. Reason: detail
#4
Senior Member
Never taken one like that apart, but Id guess the kick panel under the steering wheel has to come out, then some of the fascia around the vents, stereo, gauges. Then probably that piece. Just start taking things off one at a time, its a dash, not rocket appliances.
My '99 is quite different, but thats how its done. Haynes manual should show how its done for your year. Im almost positive it does.
My '99 is quite different, but thats how its done. Haynes manual should show how its done for your year. Im almost positive it does.
#5
Junior Member
Thread Starter
Join Date: Mar 2011
Location: backwoods preacher boy mountain hut
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 IL6
My Haynes isn't very descriptive but I will double check it. It's the only piece of the dash that is vinyl and NOT plastic that's why I'm wondering if it doesn't come out.
I used Dupli-Color Vinyl and Carpet paint and did 3 thin coats (on the doors as well as you can see, it's been about month since I've done it and it's really nice, everyone's very impressed by it and in my opinion if you tape everything off properly it looks new!
Not to hijack but what are you using to paint the dash and trim? How does it hold up? Scratch easy?
Trending Topics
#8
Seasoned Member
Join Date: Oct 2010
Location: Colorado Rocky Mountains
Posts: 486
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1999
Model: Cherokee
Engine: 4.0 I6
That's what I was thinking I'd probably do were I in your shoes. It looks like a real PITA to get out, and I've done pretty much everything around it and it wasn't fun. I'd pull stuff off around it and just tape/paint it in place!
#9
Senior Member
Join Date: Apr 2011
Location: here today gone tomorrow
Posts: 746
Likes: 0
Received 3 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: 4.0
If you locate the write up for replacing the AC evaporator, you'll see how the entire dash comes out.
If it were me I would tape as much as possible and paint it in place.
If it were me I would tape as much as possible and paint it in place.
#10
Junior Member
Thread Starter
Join Date: Mar 2011
Location: backwoods preacher boy mountain hut
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 IL6
The paint is in a spray can, and the windshield is BIG time in the way to try to be painting the top face of it, I'd have to be <1inch away from the surface and 8 inch is preferable.
