How do i fit my wheel arches?

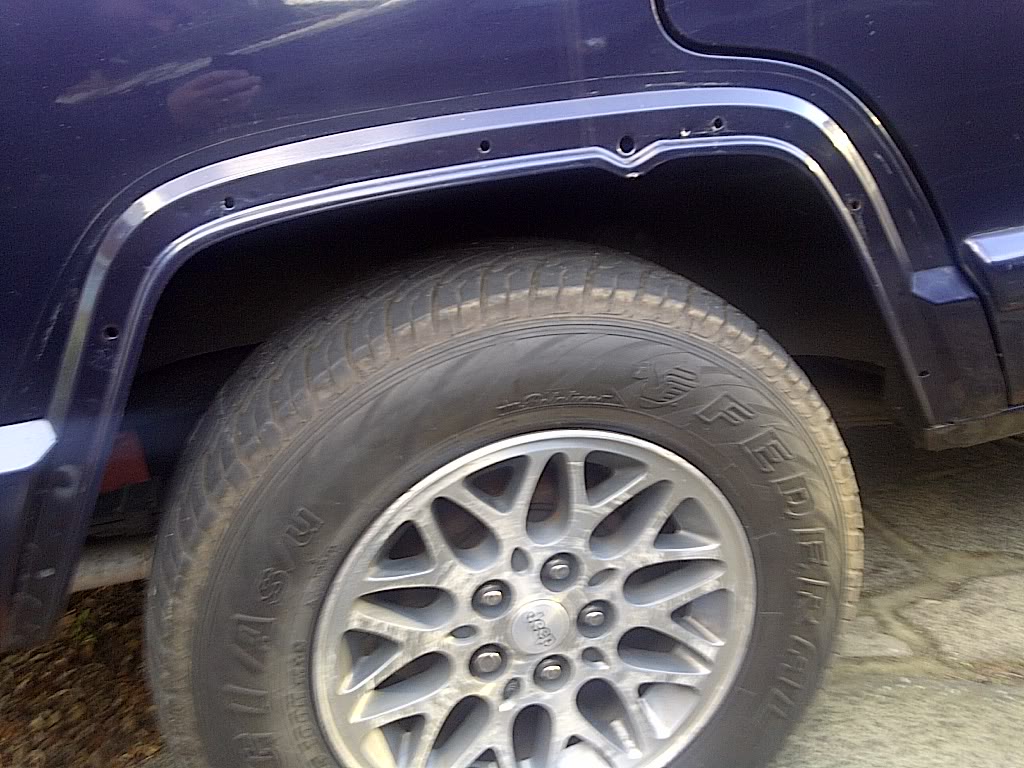

I have a 1998 Jeep Cherokee 4L auto, when i got it, all the wheel arches and trim were in the boot, looking at the many parts, i can not work out how they go on
.

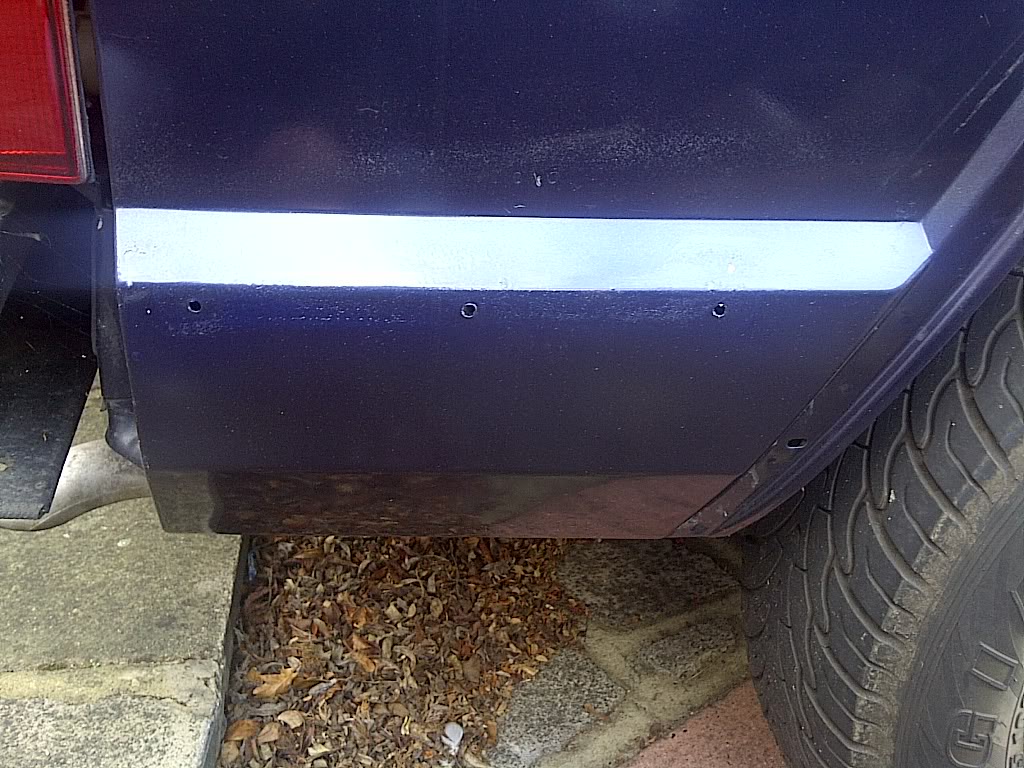

Most of the bolts were broken so i have grinded them down so i can drill holes for new bolts, but i can not see any logical way for them to go on the jeep, especially the rear valance bit that goes up to the bumper as there is no way you can do up the nuts as it is a box section that has no access?

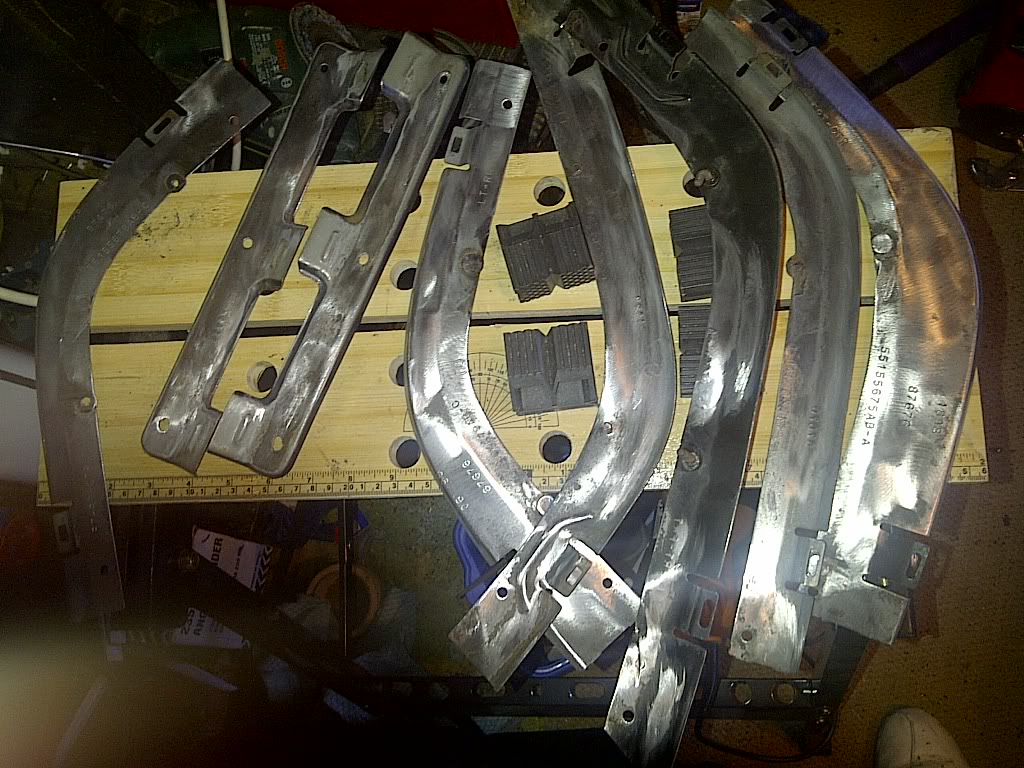

Here are some pics of my jigsaw puzzle......
.Most of the bolts were broken so i have grinded them down so i can drill holes for new bolts, but i can not see any logical way for them to go on the jeep, especially the rear valance bit that goes up to the bumper as there is no way you can do up the nuts as it is a box section that has no access?
Here are some pics of my jigsaw puzzle......
01-23-2012, 02:24 AM
#3
CF Veteran
Join Date: Nov 2010
Location: some small town oregon
Posts: 15,581
Likes: 0
Received 8 Likes
on
8 Posts
Year: 1989
Model: Cherokee
Engine: 4.0
Originally Posted by leejunfan
I have a 1998 Jeep Cherokee 4L auto, when i got it, all the wheel arches and trim were in the boot, looking at the many parts, i can not work out how they go on.
Most of the bolts were broken so i have grinded them down so i can drill holes for new bolts, but i can not see any logical way for them to go on the jeep, especially the rear valance bit that goes up to the bumper as there is no way you can do up the nuts as it is a box section that has no access?
Here are some pics of my jigsaw puzzle......
.Most of the bolts were broken so i have grinded them down so i can drill holes for new bolts, but i can not see any logical way for them to go on the jeep, especially the rear valance bit that goes up to the bumper as there is no way you can do up the nuts as it is a box section that has no access?
Here are some pics of my jigsaw puzzle......
01-23-2012, 08:12 AM
#4
CF Veteran
Join Date: Jun 2011
Location: S.E. Tx
Posts: 1,845
Likes: 0
Received 2 Likes
on
1 Post
Year: 1992
Model: Cherokee
Engine: 4.0 I6 firepower ignition, cat-back w/ magnaflow muffler, poweraid tb spacer, optima blue top
The curved brackets fit over the lips of the flares to wedge them between the brackets and the body. If you have a welder or someone that does you can remove the old broken bolts and weld on some new bolts.
As for the straight brackets, they mount to the body for the plastic trim. I don't have any experience with their mounting as i have an older xj.
As for the straight brackets, they mount to the body for the plastic trim. I don't have any experience with their mounting as i have an older xj.
01-23-2012, 08:29 AM
#5
Junior Member
Join Date: Mar 2011
Location: California PA
Posts: 76
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0 IL6

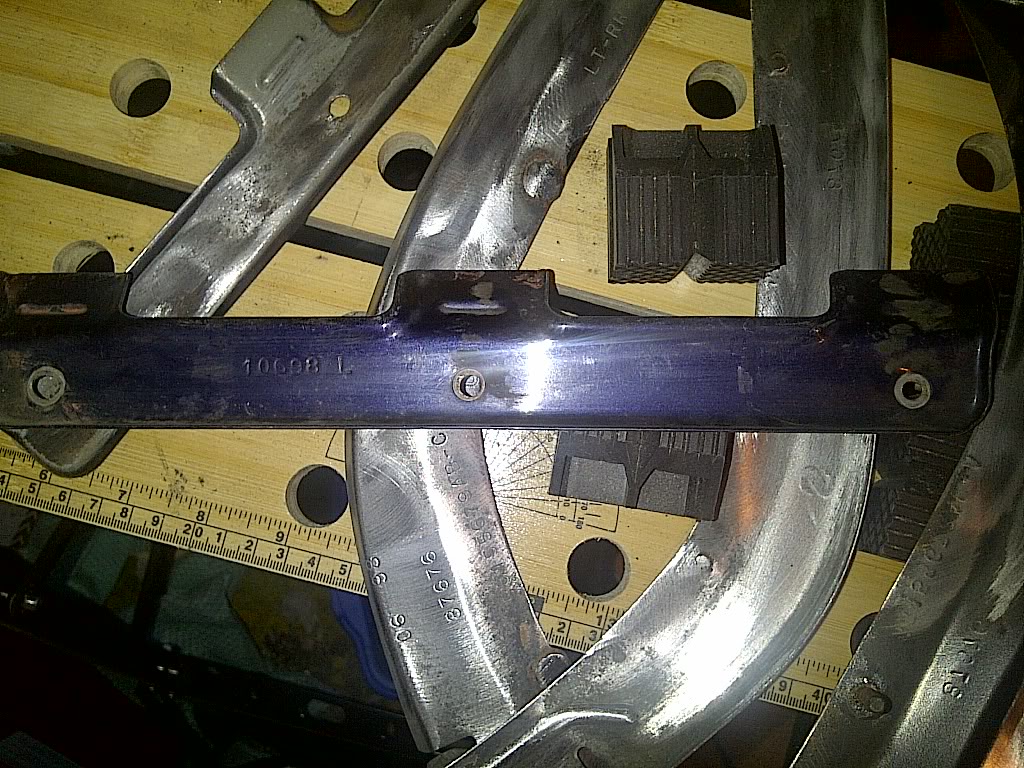

There are letters on them to tell you where they go. For example in the close up picture you have you can see LT-RR that one is the Left right rear bracket. This should help you figure out where they go
