Didi I see that right? It looks like there is no backing plate or brake shoes on the left rear.



Looks that way, lol.

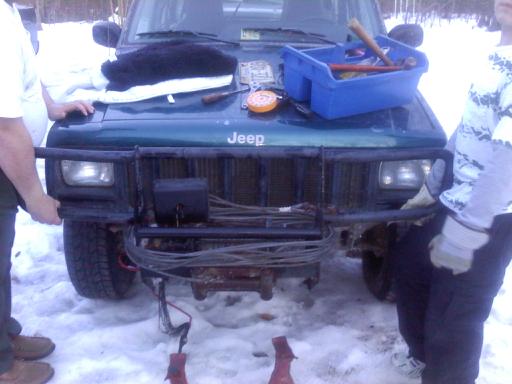

hmm i might this summer (do a full kit) but for now when i do switch it i will ride the blocks here are some pics of the bumper i making brakets for to mount it came off a 1988 sr5 toyota just seeing how it would look on a black cherokee






the winch works it needs a new control box its a 6000 and my dad gave it to me for free along with the bumper and tow hooks and some mic fearson lights.
(i getting new jeep i am just seeing what it would look like)



yea...it is a peace it only has 3 bolts on that tire.



those u bolts look like there just about new!!! ya if you still have around 300$ you can make your own lift kit from the junkyard. you can do a 4 inch lift or so with 2 rear leafs from a s10 or darango or something like that, and than you can get a 2 inch lift by useing front coils out of a grand cherokee and than another 2 inch spacer to make a 4 inch lift. but it looks like you have stock lower control arms so you probly only have a cheap 3 inch lift. and if you do a 4 inch lift you need bent lower control arms, and a transfercase drop or slip yoke eliminator



wow looks like u need a SYE baaaaaad!!! don't flex that thing at all or ur drive shaft is gonna fall out!!!!!! lol



unless that pic of ur Tcase is flexed out mega!?!?



ok some one hook me up with this sye gimme a link for a cheap 1 and maybe a ling for the shocks since the are stock? i am new soany help would be thanked



Shocks- http://www.4wd.com/productdetails.as...mpaign=product

hack & tap SYE- http://shoplive.rompalicious.com/rub...=en#googlebase

4.5" lift kit- http://www.roughcountry.com/jeep_xj_4.html

remember google is your friend!!! lol



ok thanks i will get me some the last thing i need is it falling out on the highway goin 70



Ziggy had suggested stainless steel bolts. Do not use stainless on any suspension component not designed for them. Stainless fasteners are most always considered Grade 3 and cannot take the stress of a Grade 5 or 8. To make removal easier in the future, use a thin coat of never seize.



some one said you need an sye bad. i recomend one but you dont need it BAD. it looks bad because it is missing the dust boot that is supposed to be there.

try a tcase drop. cost ya about $5 to make one
http://www.go.jeep-xj.info/HowtoTCdrop.htm

some one also said u-bolts stretch over time. they strech as soon as you tighten them down. you should never reuse u bolts. (i do)

x2 DO NOY USE STAINLESS BOLTS for any suspention component

and get ride of the block and do a bastard pack. blocks are dangerous with a leaf spring that is soft as a cherokees (provides to much leverage and can actually snap leaf in half

http://www.lunghd.com/Tech_Articles/...udget_Lift.htm



well carfleet i was not aware of that thank you for correcting me. i personaly would have thought stainless to be better but oviously it is weaker since it isnt hardened.



ok if its not to much out of the way.how can i make a $5 drop cuz i wana do it cheap lol and 2nd in the pic for drive shaft how much dose the boot cover cuz i realy cant aford a $1000 fix if everything comes apart on me all my jeep is gana do is beach driving and a little bit of trail and race that all.(got a guy in a branco 2 and a 88 thunderbird to show off too lol aka my freands)



that link he posted tells you step by step! you can just get a 1"x1" square tube from home depot to use & follow those steps!

Also thanks for correcting me on that SYE I guess I've just never seen it that far out without a boot...
