Head Gasket?
#1
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Head Gasket?
Quick story....
2000 XJ 4.0, Auto 160k miles
-No heat then overheated
-Original Thermostat So I changed it.
-Original Waterpump So I changed it.
After repairs, During idle...
-Top hose hot.
-Lower hose cold.
-Heater core hoses both cold.
-Fan kick on and works.
Tried to burp it and air it out as we know jeeps are a pain the *** to air out. Ran it for 20 min sections about 3 times. Total of 1 hour.
Same symptoms with top hose hot, lower hose and heater core hoses cold too.
Seems like there is a blockage of some sort, but Radiator is not blocked as I flushed it no problem when I took the radiator out of the car to flush with a water hose.
Still getting cold heat.
Thinking head gasket, but would a head gasket cause lower hose to be cold? Im ready to pull the head out. My main question is i know the head gasket on these are easy to get damaged but i want to make sure it is before i pull the head. Right now its snowing here and its sunday and no parts store are open. I wanted to buy one of those turkey basters head gasket emissions tester to test for it. is this a good idea?

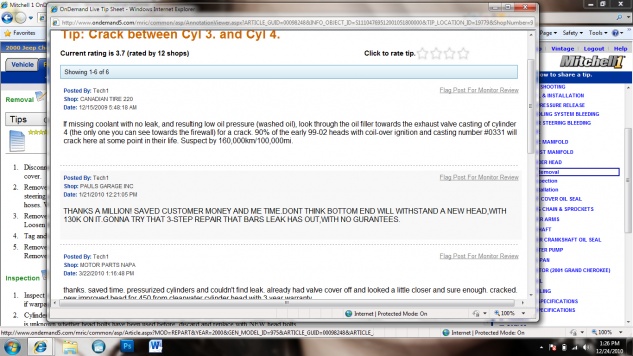

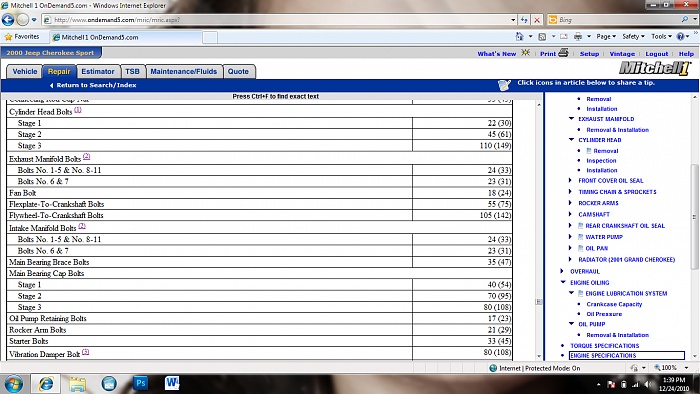

if anyone searches and finds this thread and is looking on how to pull the head out and details instructions. I have Mitchel on demand and here is the details instructions on how to pull head out. if anyone needs to.
2000 XJ 4.0, Auto 160k miles
-No heat then overheated
-Original Thermostat So I changed it.
-Original Waterpump So I changed it.
After repairs, During idle...
-Top hose hot.
-Lower hose cold.
-Heater core hoses both cold.
-Fan kick on and works.
Tried to burp it and air it out as we know jeeps are a pain the *** to air out. Ran it for 20 min sections about 3 times. Total of 1 hour.
Same symptoms with top hose hot, lower hose and heater core hoses cold too.
Seems like there is a blockage of some sort, but Radiator is not blocked as I flushed it no problem when I took the radiator out of the car to flush with a water hose.
Still getting cold heat.
Thinking head gasket, but would a head gasket cause lower hose to be cold? Im ready to pull the head out. My main question is i know the head gasket on these are easy to get damaged but i want to make sure it is before i pull the head. Right now its snowing here and its sunday and no parts store are open. I wanted to buy one of those turkey basters head gasket emissions tester to test for it. is this a good idea?
if anyone searches and finds this thread and is looking on how to pull the head out and details instructions. I have Mitchel on demand and here is the details instructions on how to pull head out. if anyone needs to.
Last edited by fabian9931; 12-26-2010 at 02:15 PM.
#3
CF Veteran
Join Date: Dec 2008
Location: eaton ohio
Posts: 1,533
Likes: 0
Received 0 Likes
on
0 Posts
Year: 93
Model: Cherokee
Engine: 4.0
Should def make those instructions a sticky. But i doubt its your head gasket. Try flushing the heter core and see what that does
#4
You said you flushed the radiator, what about the engine and the heater core. A lot of times PO's will use radiator stop leak and over do it stopping everything up. Good luck, keep us posted.
EDIT: I also doubt it is your head or head gasket either. Do you have water in your oil?
EDIT: I also doubt it is your head or head gasket either. Do you have water in your oil?
#5
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
But why flush the heater core if it doesnt even get that far yet? Not like one hose on the heater core is hot and the other cold. But both are cold.
You said you flushed the radiator, what about the engine and the heater core. A lot of times PO's will use radiator stop leak and over do it stopping everything up. Good luck, keep us posted.
EDIT: I also doubt it is your head or head gasket either. Do you have water in your oil?
EDIT: I also doubt it is your head or head gasket either. Do you have water in your oil?
Dip stick is normal. But funnel looks like it could be mixed. its a tricky one. cant say it is oil cant say its not, its tricking me big time. I never used radiator leak before. This past summer I did have that muddy rusty thick gritty stuff in my radiator I guess from the build up, Thats why i flushed it. Even took out the resevoir and washed that with boiling water to get the stains out. I personally sometimes think that its not a headgasket and just a bad air pocket because those other hoses are still cold! but im no master tech but i have some what mechanically inclined lol
#7
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Trending Topics
#8
CF Veteran
Join Date: Nov 2010
Location: In the middle of Minnesota!
Posts: 5,804
Received 99 Likes
on
88 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
You have a 2000, which came from the factory with the "infamous" 0331 head, which has a casting defect between cylinders 3-4.
Overheating makes this head EXTREMELY prone to cracking.
Your cooling system should burp itself with about 3, maybe 4 complete cycles of heat up and coold own.
The fact that you had an overheat and are now having these symptoms does make the head suspect here.
The #1 clue for a cracked 0331 head is coolant loss. Are you losing coolant from the reservoir?
Many can see the crack by shining a good light down through the oil filler hole, or by removing the valve cover gasket. Other tests include the "block test", cooling system pressure test, compression test, and the comprehensive cylinder leakdown test.
Overheating makes this head EXTREMELY prone to cracking.
Your cooling system should burp itself with about 3, maybe 4 complete cycles of heat up and coold own.
The fact that you had an overheat and are now having these symptoms does make the head suspect here.
The #1 clue for a cracked 0331 head is coolant loss. Are you losing coolant from the reservoir?
Many can see the crack by shining a good light down through the oil filler hole, or by removing the valve cover gasket. Other tests include the "block test", cooling system pressure test, compression test, and the comprehensive cylinder leakdown test.
#9
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
You have a 2000, which came from the factory with the "infamous" 0331 head, which has a casting defect between cylinders 3-4.
Overheating makes this head EXTREMELY prone to cracking.
Your cooling system should burp itself with about 3, maybe 4 complete cycles of heat up and coold own.
The fact that you had an overheat and are now having these symptoms does make the head suspect here.
The #1 clue for a cracked 0331 head is coolant loss. Are you losing coolant from the reservoir?
Many can see the crack by shining a good light down through the oil filler hole, or by removing the valve cover gasket. Other tests include the "block test", cooling system pressure test, compression test, and the comprehensive cylinder leakdown test.
Overheating makes this head EXTREMELY prone to cracking.
Your cooling system should burp itself with about 3, maybe 4 complete cycles of heat up and coold own.
The fact that you had an overheat and are now having these symptoms does make the head suspect here.
The #1 clue for a cracked 0331 head is coolant loss. Are you losing coolant from the reservoir?
Many can see the crack by shining a good light down through the oil filler hole, or by removing the valve cover gasket. Other tests include the "block test", cooling system pressure test, compression test, and the comprehensive cylinder leakdown test.
BUT. would a head gasket or cracked head make the lower hose and heater core hoses cold????????? that throws me a curve ball because to me as i stated before im no master tech but to me if all hoses were hot and it was flowing and still overheated then i would assume head gasket.
Last edited by fabian9931; 12-26-2010 at 06:01 PM.
#12
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
ok update: tried to bleed it more. 2 more times. but before the last time i removed the front headlights grill and center grill to access radiator more freely. ran car for 10 min to get it to regular operating temperature again as stated top hose hot. lower cold. and heater core hoses cold too... so picture viewing the car from the front. the top radiator hose is on the top left corner and the lower is on the bottom right. the top left area of the radiator is hot, but the lower left corner is cold. also cold is the whole bottom of the radiator plus the whole right side area were the lower radiator hose is too. even the radiator cap neck is cold. only hot part is where the top hose connects and about maybe 3 inches down, then gets cooler. shouldnt it be somewhat all hot? sounds like a clogged radiator?
#13
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
another update. changed radiator. it was clogged but not 100% did let some circulation through but not enough. now with new radiator installed i get this...

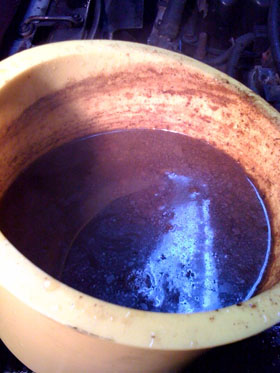

both upper and lower hoses get hot. heater core hoses get hot too. car doesnt overheat. heat blows alittle more than warm, enough to shut me up and deal with it. took it for a 5 min ride. heat ended getting cold. pulled it into my garage and heater core hoses were cold and also radiator hoses. ended up blowing and water flushing the heater core and heater core hoses. same thing. so also when i was burping the car the yellow radiator funnel always bubbled, never stopped and stayed steady. it was smoking from there too, but must be from it being 25 degrees out and my garage door was open. i will buy a block tester tomorrow morning and test it. what do you guys think
both upper and lower hoses get hot. heater core hoses get hot too. car doesnt overheat. heat blows alittle more than warm, enough to shut me up and deal with it. took it for a 5 min ride. heat ended getting cold. pulled it into my garage and heater core hoses were cold and also radiator hoses. ended up blowing and water flushing the heater core and heater core hoses. same thing. so also when i was burping the car the yellow radiator funnel always bubbled, never stopped and stayed steady. it was smoking from there too, but must be from it being 25 degrees out and my garage door was open. i will buy a block tester tomorrow morning and test it. what do you guys think
#14
Seasoned Member
Join Date: Nov 2009
Location: Rio Rancho NM
Posts: 421
Likes: 0
Received 1 Like
on
1 Post
Year: 1996
Model: Cherokee
Engine: 4.0
sounds like a major blockage in the block. Old radiator was plugged due to whatever plugged the block up. How long have you had it? I would wonder if the PO put that stuff in that is supposed to fix a blown head gasket without tear down. That would be like a bucket of bars leak. If so your block may need tear down and tanked to get it cleaned out.
#15
Newbie
Thread Starter
Join Date: Jan 2010
Posts: 29
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
sounds like a major blockage in the block. Old radiator was plugged due to whatever plugged the block up. How long have you had it? I would wonder if the PO put that stuff in that is supposed to fix a blown head gasket without tear down. That would be like a bucket of bars leak. If so your block may need tear down and tanked to get it cleaned out.
