Fuel tank leak, specific question
#1
CF Veteran
Thread Starter
Fuel tank leak, specific question
OK, Here is the situation: I've got a leak where the barb fitting (for the fuel sending line) goes through the circular metal plate on the unit. Given that the tank itself isn't pressurized much, can I remove the unit, clean up around the fitting, and JB weld it? I simply don't have the money to replace it yet. For the time being I've just been filling up no more than half way
#3
CF Veteran
Thread Starter

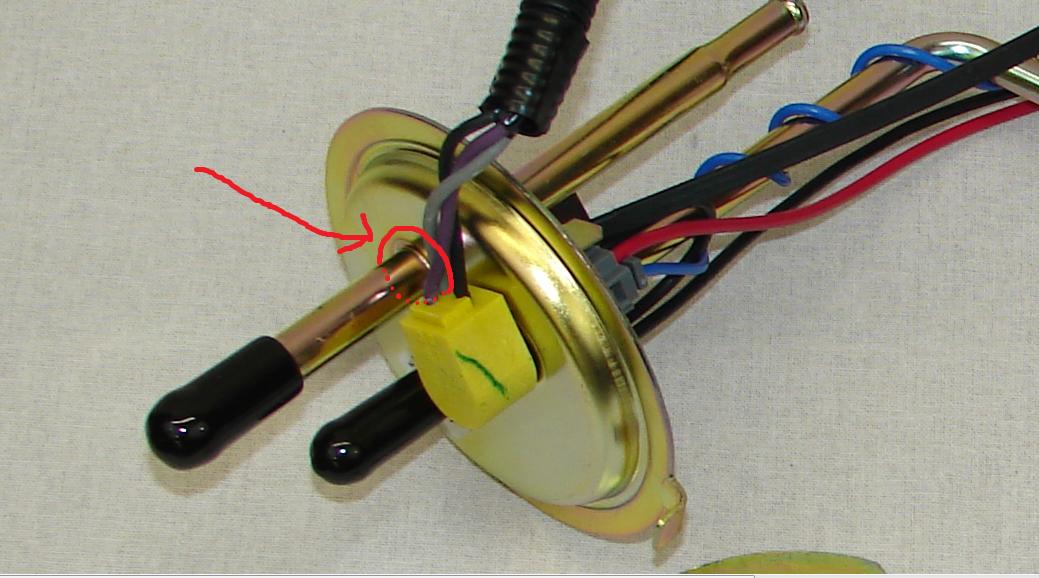

Yessir, but let me reiterate, it's not the o-ring/locking ring seal, not the fuel lines themselves, but where the barb fitting passes through. Actually, here is a pic indicating where the issue is. Rather, the smaller one is leaking, I suspect from all the leverage of the weight of the pump/filter etc.
#5
Member
Join Date: Aug 2012
Location: Atlanta Georgia
Posts: 171
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Well after having a not so fun time replacing my own fuel pump recently AND knowing now what they cost ( found my cheapest on rockauto.com AND it was a made in U.S.A Carter pump) I would say it's at least worth a try. If you get it good and clean and you let it set up good it just might hold you over til you can do a full replacement.
#6
CF Veteran
Thread Starter
OK, now that I've put a little more thought into in, I'm thinking soldering might be a good idea too, maybe with JB weld on top. Only issue would be making sure the solder flows properly, and sticks. What do you guys think?
#7
CF Veteran
Join Date: Sep 2011
Location: Riviera, Texas
Posts: 4,172
Likes: 0
Received 4 Likes
on
4 Posts
Year: 1998 Sport
Model: Cherokee
Engine: 4.0
Good luck with it and let us know how it works out.
Trending Topics
#8
CF Veteran
Thread Starter
OK, after some planning and checking out the area I've got a final plan. I'm going to get a small piece of steel tube, large enough to fit over the barbed fitting. Gonna weld it in place around the barb as a collar. Then I'll fill the area in between with JB weld (which is oil/gas resistant.) That should be decently strong and hold for a long time.
The more I thought about it and asked a few peoples opinions, soldering would not make a good bond on steel.
Anyways, I'm gonna do this on Monday, so I'll let you all know Tuesday if it worked!
The more I thought about it and asked a few peoples opinions, soldering would not make a good bond on steel.
Anyways, I'm gonna do this on Monday, so I'll let you all know Tuesday if it worked!
#9
Senior Member
Join Date: Jan 2011
Location: Joliet, Il
Posts: 730
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1996
Model: Cherokee
Engine: HO4.0 I6
I have just found out the hard way that my tank is leaking from a similar area. I had just replaced the tank thinking that it was the original problem but I guess not. How where you able to tell for sure that that was where your tank was leaking? I don't want to go through the hassle of dropping the tank again to check it really hard. And any advice on how to do mine? I don't have access to a welder. Sorry to steal the thread here

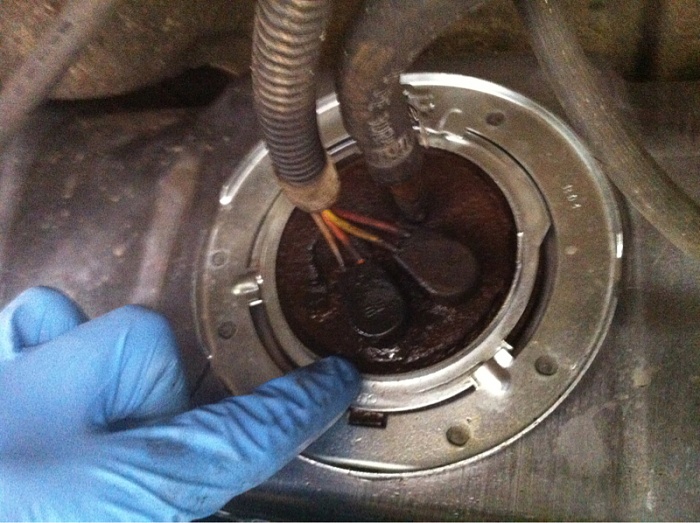

I'll post a picture of where I see the fuel kind of settling now. Before I replaced it there was no way I could tell. Now i can see the fuel dripping on my newly painted skid...
I'll post a picture of where I see the fuel kind of settling now. Before I replaced it there was no way I could tell. Now i can see the fuel dripping on my newly painted skid...
