Fuel injector question
#31
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#32
Newbie
Join Date: Jan 2015
Location: Tigard, OR
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Alright so if I'm understanding correctly, the hose circled in green is the MAP sensor hose? And it should be attached to the plug circled in yellow? It had fallen down behind the large hose so I didn't realize it wasn't plugged in. I had the red-circled hose plugged into it instead. I'm not seeing anywhere else to plug the odd-hose-out into. Any direction as to which goes where?
#33
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Alright so if I'm understanding correctly, the hose circled in green is the MAP sensor hose? And it should be attached to the plug circled in yellow? It had fallen down behind the large hose so I didn't realize it wasn't plugged in. I had the red-circled hose plugged into it instead. I'm not seeing anywhere else to plug the odd-hose-out into. Any direction as to which goes where?

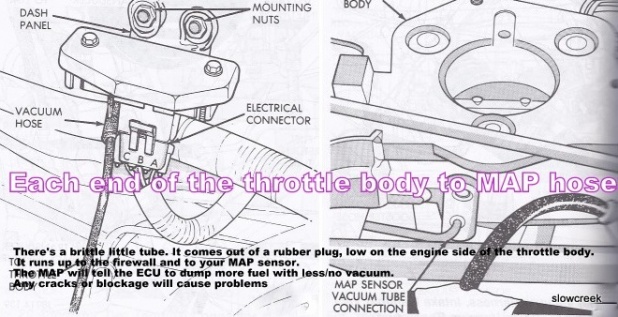

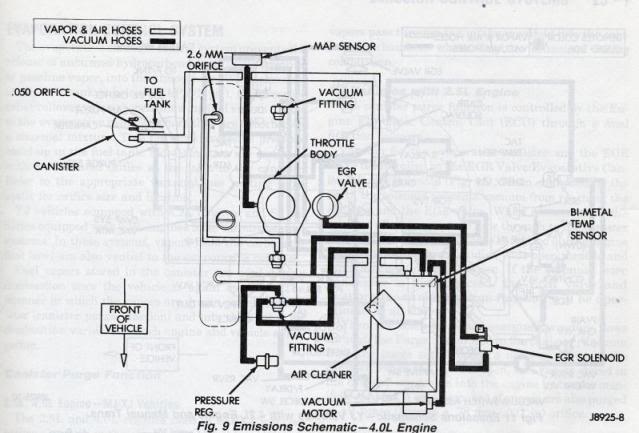

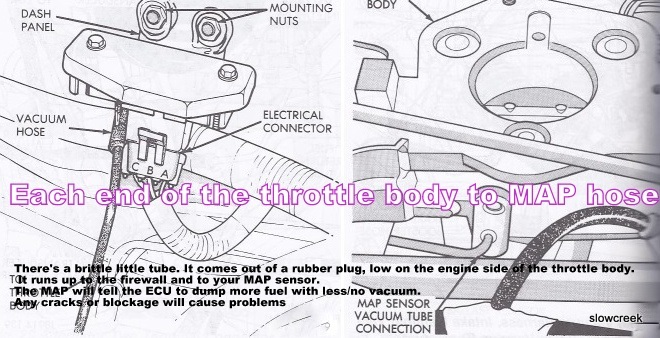

Perhaps this will help:
#34
Newbie
Join Date: Jan 2015
Location: Tigard, OR
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Yeah the guy who originally had the Jeep knew what he was doing and made a bunch of great modifications. Unfortunately, there were 2 owners between him and me who screwed up a lot. I'm in contact with the original owner and he and I are undoing the messes they made little by little.
#35
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Yeah the guy who originally had the Jeep knew what he was doing and made a bunch of great modifications. Unfortunately, there were 2 owners between him and me who screwed up a lot. I'm in contact with the original owner and he and I are undoing the messes they made little by little.
#37
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#38
Newbie
Join Date: Jan 2015
Location: Tigard, OR
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6

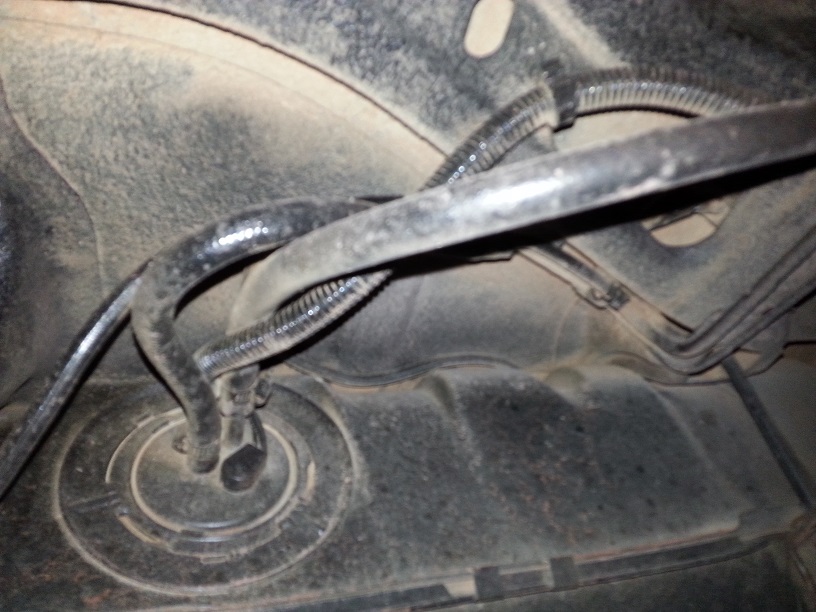

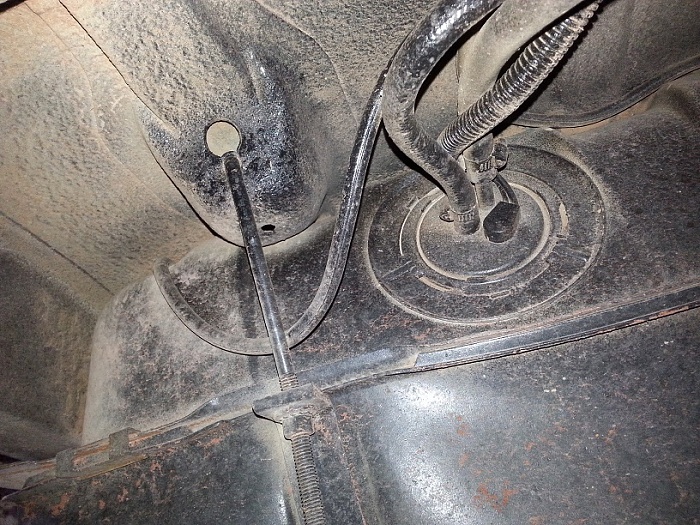

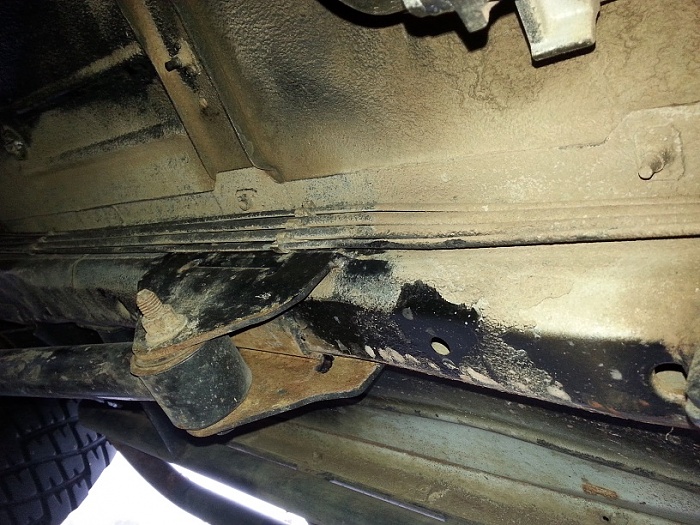

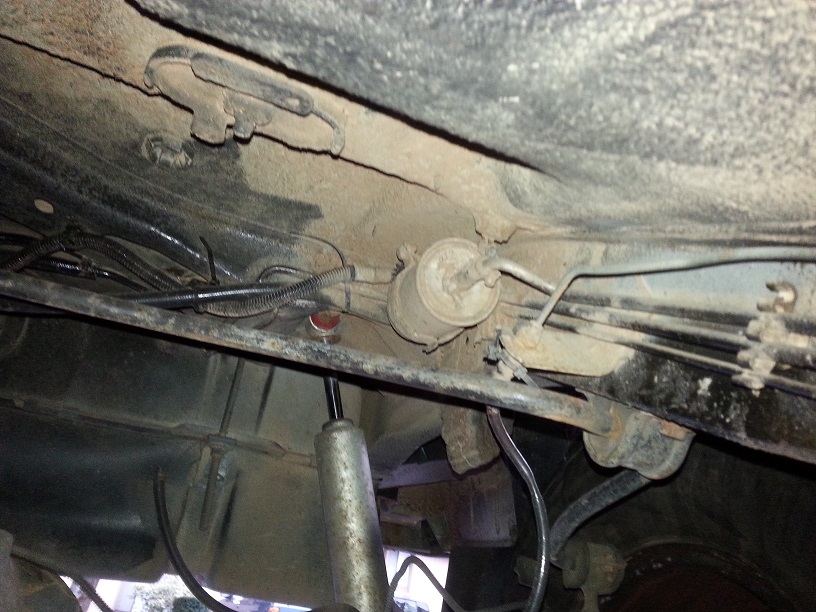

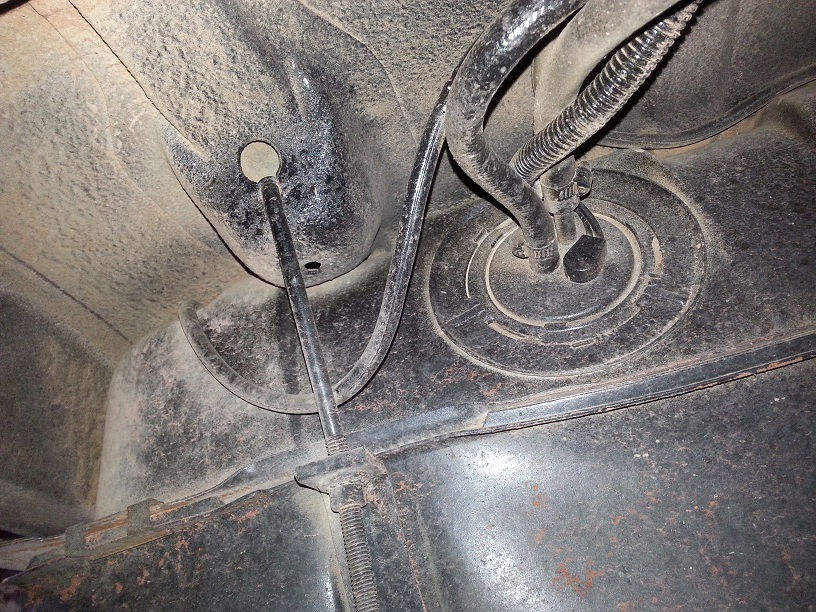

Alright, so the red circled hose connects to a small metal line. It runs down through the engine compartment, back along the undercarriage with a few others, and then plugs into a rubber line that disappears over the gas can. Any ideas what it is and where it should be plugged in? I have some pictures of the path if they will help.
#39
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
I wondered about that circled in red. The IAT, incoming air temp, goes there I think, just has two wires. The other bit reminds me of an Escher print.
#40
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Did hooking up the MAP line make it run OK?
#41
Newbie
Join Date: Jan 2015
Location: Tigard, OR
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Under the engine where the metal line comes down from the red hose. It's the one on the top.
Last edited by Lanthanaas; 04-06-2015 at 10:57 PM.
#43
Newbie
Join Date: Jan 2015
Location: Tigard, OR
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1989
Model: Cherokee
Engine: 4.0L I6
Alright, with the sensor hose plugged in, I'm still having the symptoms. Running rough, idling lower and lower until it's almost sputtering out.
#44
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,524 Likes
on
1,236 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#45
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Cleaning the IAC and adjusting the TPS is supper stuff also. They both are important for idle. Myself, the IAC plug it's self was stubborn to clean.
Oh, just saw Cruiser's last post. Maybe if it had been run much with the map line off, it's all carboned up.
Last edited by DFlintstone; 04-09-2015 at 10:31 PM.
