Fuel bleed off
#1
Member
Thread Starter
Join Date: Nov 2012
Location: Stanwood WA
Posts: 150
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.0
Fuel bleed off
I keep loosing my prime of fuel. In the morning or after work I crank it and it pops then it dies and I have to wait on fuel pump or crank for a bit. Is there a check valve if so where is it. I have a 90 xj renix fuel system. Thanks.
#2
CF Veteran
Join Date: Apr 2012
Location: Wisconsin
Posts: 5,302
Likes: 0
Received 19 Likes
on
16 Posts
Model: Cherokee
Yeah, there's a check valve. I don't know where it is on the Renix, later models it's part of the pump assembly, I'd guess Renix is similar, but I"m guessing.
You can get around the problem by turning the key to ON a couple of times to let the pump run and build pressure back up.
You can get around the problem by turning the key to ON a couple of times to let the pump run and build pressure back up.
#3
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

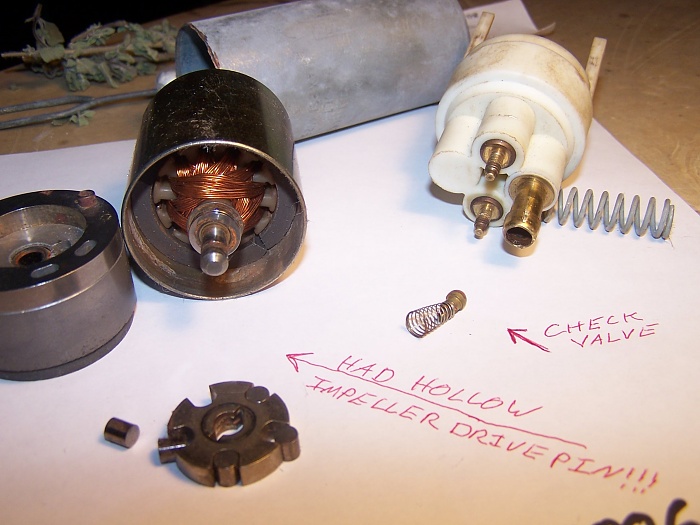

Yea, the check valve is in outlet. This is the 87-90 pump. The darn pin that drives the impeller gave it up...ran fine though. Stranded me in the rain..of course.
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Yeah, there's a check valve. I don't know where it is on the Renix, later models it's part of the pump assembly, I'd guess Renix is similar, but I"m guessing.
You can get around the problem by turning the key to ON a couple of times to let the pump run and build pressure back up.
You can get around the problem by turning the key to ON a couple of times to let the pump run and build pressure back up.
Oddly enough I had this happening on my Comanche. Did the fuel pressure test and a fuel pump test from the FSM. After that no more issues. I wonder if some crap gets in the check valves.
#5
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
Sure seems possible. Mine "got better" as well.....but there was some injector swapping going on. (a leaking injector could let the pressure drop too).
I wonder if a guy could cap off the fuel line, let the pressure build as high as it will, then suddenly let it go to maybe dislodge something in the check valve. Of course if it won't fit out....it won't get out.
I wonder if a guy could cap off the fuel line, let the pressure build as high as it will, then suddenly let it go to maybe dislodge something in the check valve. Of course if it won't fit out....it won't get out.
Trending Topics
#8
Senior Member
Join Date: Mar 2013
Location: Texas
Posts: 691
Likes: 0
Received 2 Likes
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0L
I don't know about a '90, but on a '93 it is easy to instal an aftermarket check valve in the rubber line behind the fuel filter, no messing with the metal line. I got the valve for $17 off eBay 4 years ago. Holds full pressure at least 3 days -- no waiting for prime, just turn key and start.
#9
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,876
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
