Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Freeze Plugs Replacement.

Thread Tools

Search this Thread

Old Mar 4, 2022 | 10:24 PM
  #1
joelzcd's Avatar
Thread Starter
Newbie

Joined: Mar 2022
Posts: 4
Likes: 0
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L 242
Default Freeze Plugs Replacement.

Hi, i have no idea which models or brand for freeze plugs to buy online, could anyone help me? I have a XJ 2001 / Engine 4.0 (I think 242). I could upload a pic of the engine if neccesary. I'm planning to do the job myself and learn a little about it watching a tutorial before. Thanks.
Reply
Old Mar 5, 2022 | 09:15 AM
  #2
Randy Bobani's Avatar
Seasoned Member

Joined: Jul 2020
Posts: 347
Likes: 132
From: Sand Pit
Model: Cherokee (XJ)
Default

mellingmpe256br

dorman567017

enginetechpk256
Reply
Old Mar 5, 2022 | 11:03 AM
  #3
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,577
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

Are yours rusted out?
Reply
Old Mar 5, 2022 | 05:37 PM
  #4
joelzcd's Avatar
Thread Starter
Newbie

Joined: Mar 2022
Posts: 4
Likes: 0
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L 242
Default

Originally Posted by cruiser54
Are yours rusted out?
Yes, one is leaking already.
Reply
Old Mar 5, 2022 | 06:15 PM
  #5
boxburn's Avatar
CF Veteran

Joined: Oct 2018
Posts: 1,577
Likes: 279
From: United Kingdom
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Default

IIRC they're all 2" plugs. I originally bought a set of Crown plugs which were a fraction too large. I ended up getting a brass set from a UK supplier. There are 2 on the back of the engine which requires removal to get at, although I'm sure I read you can drop the transmission to gain access. The one on the head would be a pain though.

I at first did the ones on the side of the block only and 6 months later had to be recovered home to pull the engine and do the remaining 2.
Reply
Old Mar 5, 2022 | 06:23 PM
  #6
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,577
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default


Reply
Old Mar 5, 2022 | 06:27 PM
  #7
boxburn's Avatar
CF Veteran

Joined: Oct 2018
Posts: 1,577
Likes: 279
From: United Kingdom
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Default

Originally Posted by cruiser54

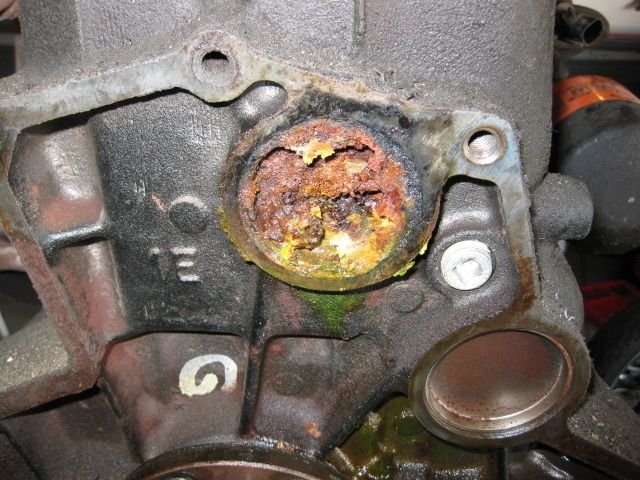

That one right there was the reason I got recovered home, although I don't think it was that crusty.
Reply
Old Mar 5, 2022 | 06:33 PM
  #8
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,577
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

and I'm sure you didn't use a Fram filter either!!
Reply
Old Mar 5, 2022 | 09:15 PM
  #9
joelzcd's Avatar
Thread Starter
Newbie

Joined: Mar 2022
Posts: 4
Likes: 0
Year: 2001
Model: Cherokee (XJ)
Engine: 4.0L 242
Default

Originally Posted by boxburn
IIRC they're all 2" plugs. I originally bought a set of Crown plugs which were a fraction too large. I ended up getting a brass set from a UK supplier. There are 2 on the back of the engine which requires removal to get at, although I'm sure I read you can drop the transmission to gain access. The one on the head would be a pain though.

I at first did the ones on the side of the block only and 6 months later had to be recovered home to pull the engine and do the remaining 2.
Well, i'll replace only the ones on the side first, but i'm comfused about the ones recommended by @Randy Bobani (mellingmpe256br) here
Amazon Amazon
, or get these from https://www.autozone.com/external-engine/freeze-plug/p/dorman-freeze-plug-567-017/19813_0_0 (Since i read almost everyone talking about these on the Amazon's reviews). Also, both pack a different amount of plugs.
Reply
Old Mar 5, 2022 | 10:00 PM
  #10
cruiser54's Avatar
::CF Moderator::

Joined: Aug 2011
Posts: 43,971
Likes: 1,577
From: Prescott, Az
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Default

sometimes the cam plug is included in a kit.
Reply
