Extra bolts after manifold replacement?

Thread Tools

Search this Thread

Old Apr 17, 2020 | 01:19 AM
  #1
cletus141's Avatar
Thread Starter
Junior Member

Joined: Jun 2016
Posts: 39
Likes: 0
Model: Cherokee
Default Extra bolts after manifold replacement?

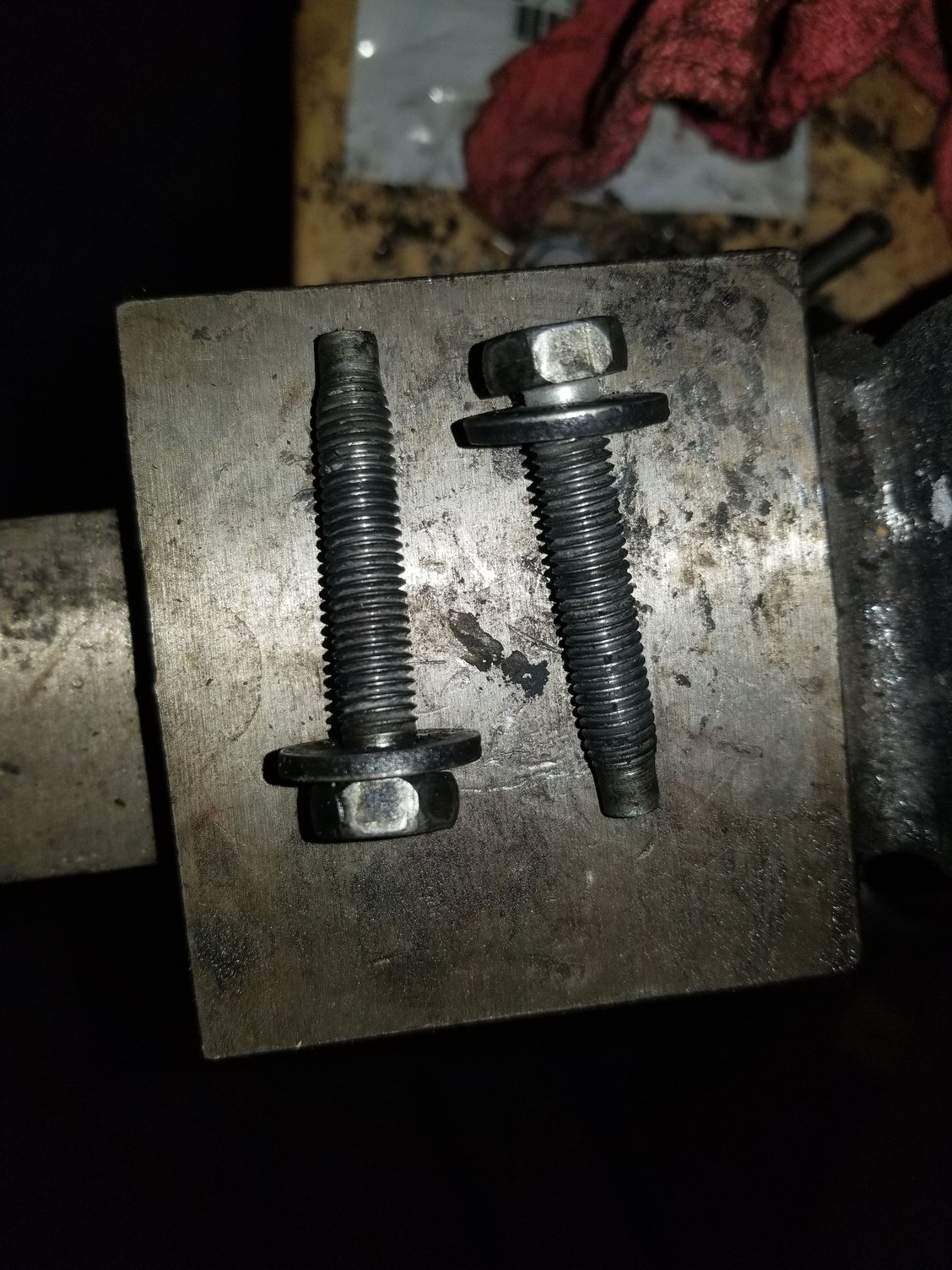

These were left over after exhaust manifold was replaced. M8 by about 40mm. Any ideas? Couldn't find anything. Runs ok now.
Reply
Old Apr 17, 2020 | 06:52 AM
  #2
Cummins93's Avatar
CF Veteran
10 Year Member
Liked

Joined: Mar 2015
Posts: 1,203
Likes: 155
From: Northern CT
Year: 1995
Model: Cherokee
Engine: Turbo 4.0
Default

You are sure they are 8mm? Bolt head is what? What did you take off the intake when you pulled it?
Reply
Old Apr 17, 2020 | 11:09 AM
  #3
5-Speed's Avatar
::CF Moderator::
Premium Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2016
Posts: 3,540
Likes: 416
From: SoCal
Year: 1987
Model: Cherokee (XJ)
Engine: 4.0
Default

I am going to say those look like something that go on the PS bracket where it connects back to the intake manifold.
Reply
Old Apr 17, 2020 | 11:50 AM
  #4
PatHenry's Avatar
CF Veteran

Joined: Nov 2017
Posts: 3,700
Likes: 238
From: Groton, MA
Year: 1995
Model: Cherokee(XJ)
Engine: I6 4.0L
Default

Originally Posted by 5-Speed
I am going to say those look like something that go on the PS bracket where it connects back to the intake manifold.
Agree - looks like the power steering adjustment/bracket bolts.
Reply
Old Apr 17, 2020 | 12:35 PM
  #5
cletus141's Avatar
Thread Starter
Junior Member

Joined: Jun 2016
Posts: 39
Likes: 0
Model: Cherokee
Default

They are too long for PS, which has all bolts in it. I even pulled the PS bracket off the manifold/waterpump completely. PS attaches with 3 different brackets. Big bracket that attaches to WP/IntMan, Small 3-bolt bracket to that, and the bracket that actually mounts to the pump, Pump-bracket. Big Bracket has 4 bolts; 2 on Waterpump and 2 on intake manifold. Pump bracket attaches to 3-bolt bracket with 2 bolts; the swivel at the top, and the slider at the bottom. I spent way too much time checking these, tapping holes, and die-ing bolts.

I'm not sure of head size. I was keeping all hardware in the airbox, so it's possible these were already in the airbox from a previous job.
Reply
Old Apr 17, 2020 | 02:04 PM
  #6
5-Speed's Avatar
::CF Moderator::
Premium Member
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2016
Posts: 3,540
Likes: 416
From: SoCal
Year: 1987
Model: Cherokee (XJ)
Engine: 4.0
Default

Are they for the air box? Arent there 2 that are in the bottom of it? Its been a while since I have worked on a Jeep so I am just guessing!
Reply
Old Apr 17, 2020 | 03:20 PM
  #7
cletus141's Avatar
Thread Starter
Junior Member

Joined: Jun 2016
Posts: 39
Likes: 0
Model: Cherokee
Default

Originally Posted by 5-Speed
Are they for the air box? Arent there 2 that are in the bottom of it? Its been a while since I have worked on a Jeep so I am just guessing!
Negative. the airbox bolts are shorter and installed.
