I need some help, but don't we all. I am hitting the brick wall. We all have been there and done that. In a 1984 Cherokee, where is the blinker relay, I have not seen any hint to where it is.
#5
CF Veteran
Join Date: May 2009
Location: Glen Burnie, MD
Posts: 1,844
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 H.O. K&N, Borla headers, custom down pipe, magnaflow hi-flo cat, flowmaster to turn down tip

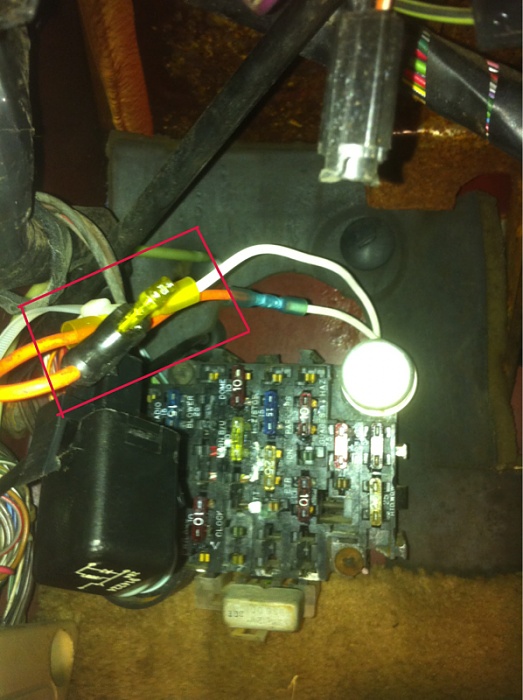

ok there is a fuse that allows your blinkers to operate, and there is a relay that determines the speed of the blinkers and also allows them to operate. the relay is round and in the either top right corner of your fuse box under the dash to the left of the steering wheel, or in the bottom left hand corner of the fuse box
#6
Junior Member
Thread Starter
Join Date: Feb 2011
Posts: 59
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
I should have not started a new thread, but I am learning! This was posted on the new thread..,
I have posted several times about electrical problems, mainly the blinkers. Latest problem was left blinkers being on solid while the right one flashed. Finally got some time tonight, and worked on it. Found front left blinker light was not making good contact, at the rounded ***** of the bulb. Then found two flaky grounds at the rear sockets on the left side. I was approaching everything wrong, I assumed that since the left blinkers stayed on solid that the problem was at the flasher/steering switch. I haven't got any experience with vehicle electronics, but I am learning. It always feels good tackling a problem and getting resolved. It is always the last thing you do, that fixes it! Thanks for the replies...just a learning curve.
I have posted several times about electrical problems, mainly the blinkers. Latest problem was left blinkers being on solid while the right one flashed. Finally got some time tonight, and worked on it. Found front left blinker light was not making good contact, at the rounded ***** of the bulb. Then found two flaky grounds at the rear sockets on the left side. I was approaching everything wrong, I assumed that since the left blinkers stayed on solid that the problem was at the flasher/steering switch. I haven't got any experience with vehicle electronics, but I am learning. It always feels good tackling a problem and getting resolved. It is always the last thing you do, that fixes it! Thanks for the replies...just a learning curve.
