72mustang

As of last night my blinkers, wipers, radio, and heater will not work. Also my head lights want to cut out randomly. Any ideas at all guys? Need to know ASAP as I depend on this to get me to work and class.

VTJeep

what have you checked so far?

72mustang

To be honest I'm lost when it comes to electrical stuff. I'm starting to check fuses right now. Any recommendations?

72mustang

Also my Jeep is a 1987 Cherokee 4.0

VTJeep

seems like its usually a relay that causes this issue. its probably under the dash somewhere.
check the fuse box by passenger feet and also under hood (your fuse locations are prob little different than my 99, so idk about locations...) also check all grounds wires. do some thread searches for this, too!
sorry im not more help..

freegdr

try turning the key in accesory position see if these things work

freegdr

wait headlights should work with key off, ground issue possible

72mustang

Didn't do anything in the accessory position either

72mustang

Headlights are the only thing that does work

72mustang

They just like to cut out while driving

freegdr

check grounds by oil dip stick tube and rear of motor drivers side fire wall ,if all fuses check good

72mustang

All fuses look to be good. Is there anyway I could get a pick of where Exactly they are located on this year? Sorry just not real sure

72mustang

Neither ground seems to be loose or anything. I read something about an ignition control switch being looped in with everything I'm having problems with and possibly causing it. ?????still lost

freegdr

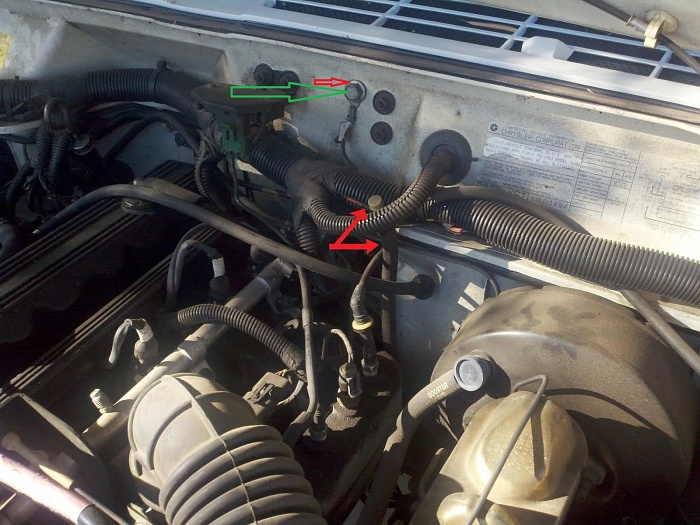

follow the oil dip stik down theres three or four wires bolted to the engine check them out the otheres here in the green arrow

72mustang

I checked them both and both seem to still have good contact and tight on both ends....what's next?
