These what your after?

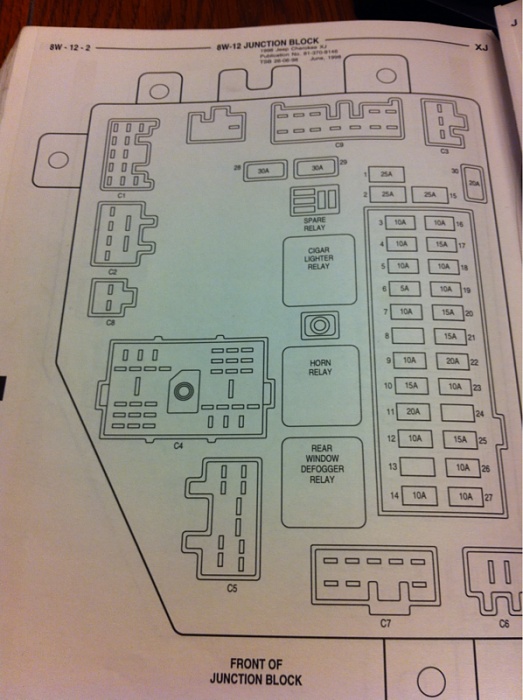

The last pic(prob the fuse box your referring to) doesn't list specific items like you want,only specific circuits.. I can fish through them if you need a particular circuit traced but there's 27 so it's not practical to take pics of them all haha



Wow! I spent all day checking grounds under the hood. Tearing apart dashboard, gauge cluster, following wires for hours. I finally fixed the problem and it happened to be by accident. Don't laugh though. I was going to use my meter to check something around fuse block on inside kick panel. I put the black lead on a bolt that is apparently for the ground plate that grounds the fuse block. Holy crap sparks. Tightened the bolt. Problem solved. Wow!



Glad to hear it. Definately what u described it had to be a ground somewhere.



Ya completely screwy! Lol.



Glad you found the problem. It's crazy how grounds can cause a system to go completely haywire.
