driveshaft/sye problem

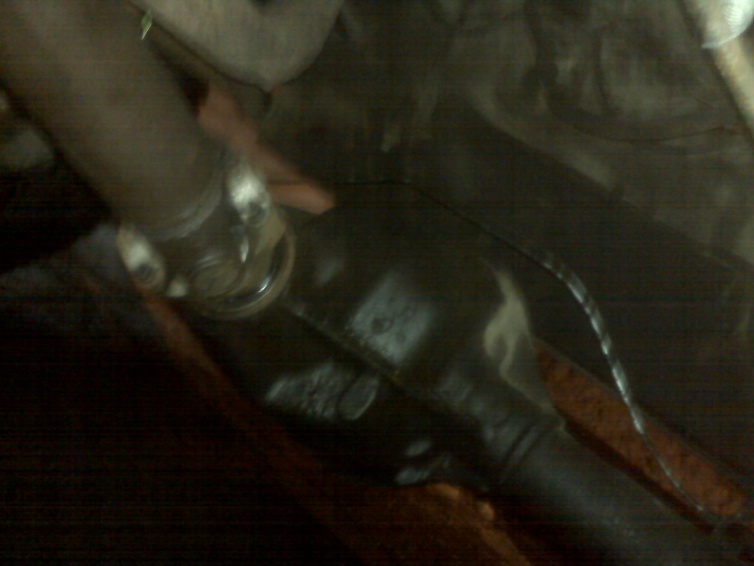

hey guys i been having hell of a time, ok first was the sye problem in which the drive shaft fellout so i just dropped the rear 1 inch and by the books it would have put my driveshaft back 1 more inch resulting in no more vibration and no more shaft fall out but the drive shaft part that goes into the sye is at the same place it was when i started before the drop so now i dont know what to do, plz help!!!
#4
CF Veteran
Join Date: Nov 2008
Location: Paso Robles Ca
Posts: 2,473
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1991
Model: Cherokee
Engine: 4.0
hey guys i been having hell of a time, ok first was the sye problem in which the drive shaft fellout so i just dropped the rear 1 inch and by the books it would have put my driveshaft back 1 more inch resulting in no more vibration and no more shaft fall out but the drive shaft part that goes into the sye is at the same place it was when i started before the drop so now i dont know what to do, plz help!!!
do you have the stock drive shaft in it still
I don't think you have a SYE or you wold not be having this problem
if you do in fact have a sye then your shaft is to short for the lift you have
lowering your jeep 1" will not give you 1" more bite on the shaft
depending on the angle you would be lucky to get 1/4" more
#5
Senior Member
Join Date: Dec 2009
Location: Fort Lauderdale
Posts: 642
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
what lift do you have
do you have the stock drive shaft in it still
I don't think you have a SYE or you wold not be having this problem
if you do in fact have a sye then your shaft is to short for the lift you have
lowering your jeep 1" will not give you 1" more bite on the shaft
depending on the angle you would be lucky to get 1/4" more
do you have the stock drive shaft in it still
I don't think you have a SYE or you wold not be having this problem
if you do in fact have a sye then your shaft is to short for the lift you have
lowering your jeep 1" will not give you 1" more bite on the shaft
depending on the angle you would be lucky to get 1/4" more
#6
Member
Thread Starter
Join Date: Dec 2009
Location: Roseville MN
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 HO

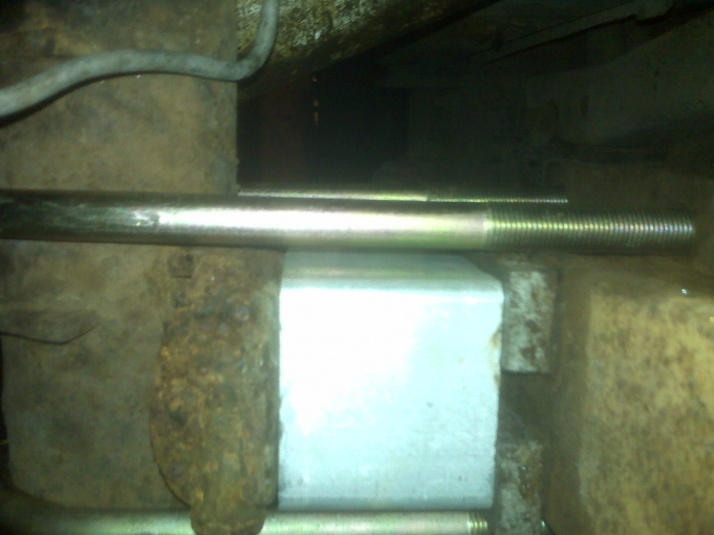

stock driveshaft have no clue, and you might be right on the sye, but as far as the lift kit its is an older trial master. but i had 2 inch blocks then i cracked one and the orielly auto parts near me only has 3 inches so i bought those just so i could have it sit and not get in the way while i waited for the 2 inches but the i drove it the the gas station long story short driveshaft fell out so then 2day i put in the 2inch blocks but the shaft still stuck out the same but before the 3 inches i never had a problem now i do so i dont know what to do
#7
Senior Member
Join Date: Jan 2010
Location: Taylorsville, UT
Posts: 855
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L
hey guys i been having hell of a time, ok first was the sye problem in which the drive shaft fellout so i just dropped the rear 1 inch and by the books it would have put my driveshaft back 1 more inch resulting in no more vibration and no more shaft fall out but the drive shaft part that goes into the sye is at the same place it was when i started before the drop so now i dont know what to do, plz help!!!
As stated, there is not a 1:1 relationship with lift height or transfercase height versus driveshaft length. As an example, on my front driveshaft, I had the axle flexing about 12" from droop to stuff (at the shock; the actual diff movement would be a bit less than that), and there was about 3/4" difference in the length of the driveshaft. 1" up or down will not translate to very much movement at all in the driveshaft. You need a longer driveshaft to run at the height you are at. No better or cheaper way around it.
Last edited by FloydXJ; 01-18-2010 at 06:54 PM.
Trending Topics
#10
Member
Thread Starter
Join Date: Dec 2009
Location: Roseville MN
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 HO
right know its is boiling down to if i need a new drive shaft i am gunna junk it or sell it i really hope nether but i am out of money
#12
Senior Member
Join Date: Dec 2009
Location: Fort Lauderdale
Posts: 642
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0

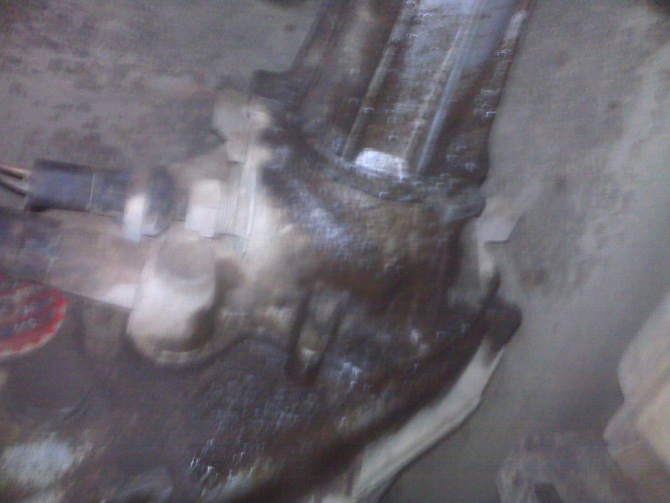

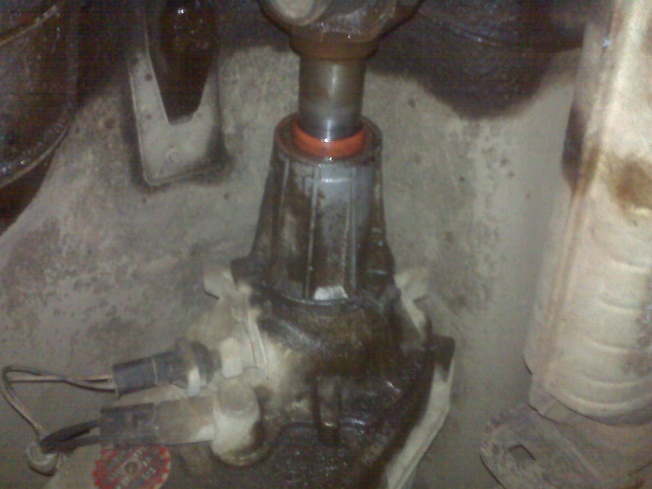

you have a slip yoke (not an SYE) and a stock drive shaft. you are gna need the SYE and the CV drive shaft. but thats a nice jeep man dont junk it you could prob get some good cash for it
#13
Member
Thread Starter
Join Date: Dec 2009
Location: Roseville MN
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1991
Model: Cherokee
Engine: inline 6 HO

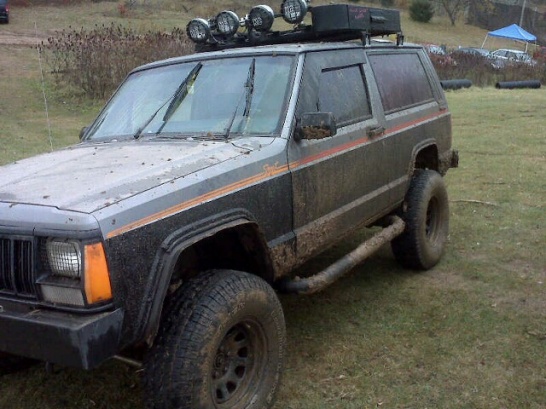

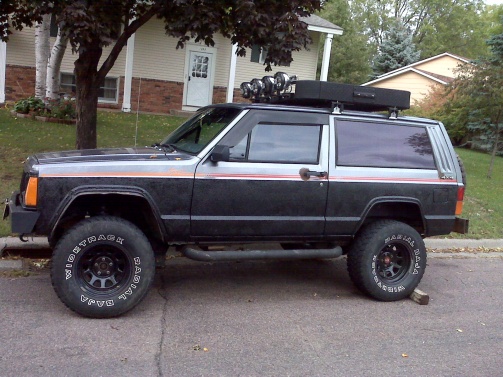

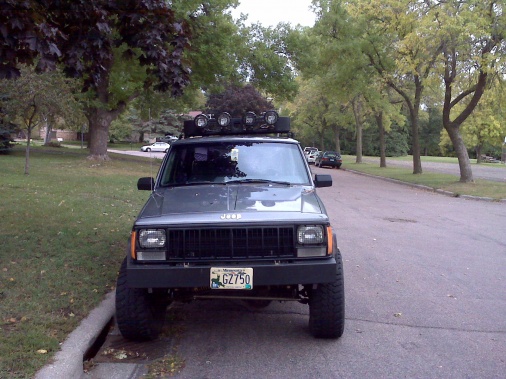

well looks like im selling it then crap it was so much fun to but money is to tight to fix(i kno this isnta selling threat but 1700 is what i want at least even tho i have put in way more but F*** it)
#14
Senior Member
Join Date: Dec 2009
Location: Fort Lauderdale
Posts: 642
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
try som junk yards you never know when somone might roll a jeep with the SYE on it. remember YJ,TJ,XJ, AND ZJ all use the same one
