Defrost, vents closing?? vacuum leak?
#1
Junior Member
Thread Starter
Join Date: Jan 2011
Location: Portland
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: '97
Model: Cherokee
Engine: 4.0
Defrost, vents closing?? vacuum leak?
My 97 Cherokee seems to have a vacuum leak somewhere behind the dash. When I start the engine, my dash vents work for about 2-3 seconds then they quit working(hear the doors slam shut). The fan keeps blowing but nothing comes out. When I switch the setting from defrost to anything else you can here the doors moving around but still no air. Before this, it worked fine until i was under a hard throttle, then anytime I accelerated and now I have nothing.. Anyone know where a common vacuum leak is behind the dash. I have already checked the engine bay and the vacuum line going through the fire wall..
Thanks for any help..
Is there a way to pressurize the system to hear for leaks?
Thanks for any help..
Is there a way to pressurize the system to hear for leaks?
#2
CF Veteran
I just went through a similar ordeal with my wife's Blazer. Vacuum lines at the reservior were rotten. Check at the reservior inside the right corner of the front bumper.
#3
Senior Member
Join Date: Apr 2010
Location: Marshall, WI
Posts: 720
Likes: 0
Received 1 Like
on
1 Post
Year: 1994
Model: Cherokee
Engine: 4.0L i6
My 97 Cherokee seems to have a vacuum leak somewhere behind the dash. When I start the engine, my dash vents work for about 2-3 seconds then they quit working(hear the doors slam shut). The fan keeps blowing but nothing comes out. When I switch the setting from defrost to anything else you can here the doors moving around but still no air. Before this, it worked fine until i was under a hard throttle, then anytime I accelerated and now I have nothing.. Anyone know where a common vacuum leak is behind the dash. I have already checked the engine bay and the vacuum line going through the fire wall..
Thanks for any help..
Is there a way to pressurize the system to hear for leaks?
Thanks for any help..
Is there a way to pressurize the system to hear for leaks?
#4
Junior Member
Thread Starter
Join Date: Jan 2011
Location: Portland
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: '97
Model: Cherokee
Engine: 4.0
I found the res. and there is no hose going to it

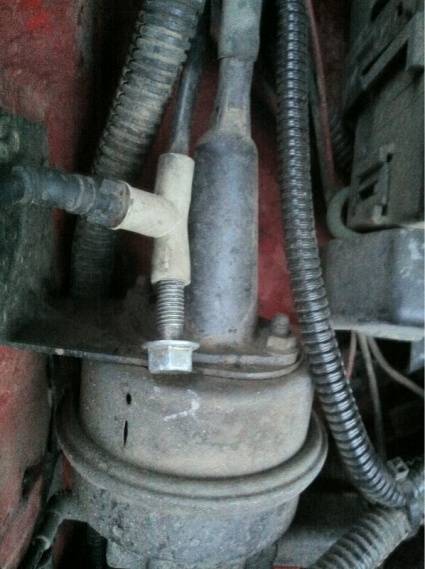

I looked under the hood and found a bolt to plug where a vacuum line is supposed to be.
I looked under the hood and found a bolt to plug where a vacuum line is supposed to be.
#5
Member
Join Date: Jul 2012
Location: Louisville, KY
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
Year: 94
Model: Cherokee
Engine: 4.0 I6
I have a buddy who was having this problem just last week. He said the piece of metal that goes from the actuator to the door itself was loose, so the door just shut back after it opened.
#6
Junior Member
Thread Starter
Join Date: Jan 2011
Location: Portland
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: '97
Model: Cherokee
Engine: 4.0
Trending Topics
#11
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
With no vacuum being applied vent should be in defrost mode it sounds like vacuums being applied to wrong valves behind dash is the vacuum ball hooked up behind front bumper? Should be hooked up thru the fitting with the bolt in it ?
#12
Junior Member
Join Date: Apr 2012
Location: SW of Wichita
Posts: 51
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
This may be a good time to examine that little vacuum check valve at the intake manifold. It may not be the main problem, but that little valve gets ignored a lot and can cause control problems under load. It's designed to keep vacuum stored in the reservoir so that the various doors/actuators hold their positions during open throttle operation (like climbing a hill with a trailer).
#13
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
First reconnect the vacuum line from that tee fitting (bolt) to the vacuum reservoir then try it before nuking your dash.
For your reference, here's a pic of three of the vacuum valves on the HVAC unit. The Recirculation Door Actuator is not shown (on cabin side of the HVAC unit). The Blend-Air Door electric motor is on the bottom of the HVAC unit.
For your reference, here's a pic of three of the vacuum valves on the HVAC unit. The Recirculation Door Actuator is not shown (on cabin side of the HVAC unit). The Blend-Air Door electric motor is on the bottom of the HVAC unit.
Last edited by CCKen; 01-12-2013 at 10:37 AM.
#14
Junior Member
Thread Starter
Join Date: Jan 2011
Location: Portland
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: '97
Model: Cherokee
Engine: 4.0
No the ball is not hooked up yet. I'll have to get that done.
#15
Junior Member
Thread Starter
Join Date: Jan 2011
Location: Portland
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Year: '97
Model: Cherokee
Engine: 4.0
Thank you all for your help, I picked up a V line tonight and will install it in the morning. it the problem still occurs then I will go from there.
