Dash indicator lights re-design.
#1
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Dash indicator lights re-design.
Morning/Noon everyone!
Need some advice and assistance. My '91 XJ is doing another one of those 'break something little that annoys you' things.
My 4x4 indicator light does not work. I do not know what happened to it as it worked before. I even pulled the dash cover to replace the little bulb (PAIN!!) and no good. I have the disco CAD axle and last winter I locked the front axle together with the simple CAD eliminate by moving the fork over and keeping it in place with the clip. 4x4 light still never shines. I even pulled the sensor connector at the CAD housing and bridged the connectors. No go.
I hate this and am all for simplicity yet ease to fix and determine. I know after my CAD disconnect that I have probably umpteen miles of useless wiring and cracked vacuum lines to kill (sense the stock light will be useless even if working because of the CAD lock). So, drawing board time!!
I want to basically redesign what is behind this part of the dash (where the CEL, 'Maintenance Required', 4X4, etc. lights are at).

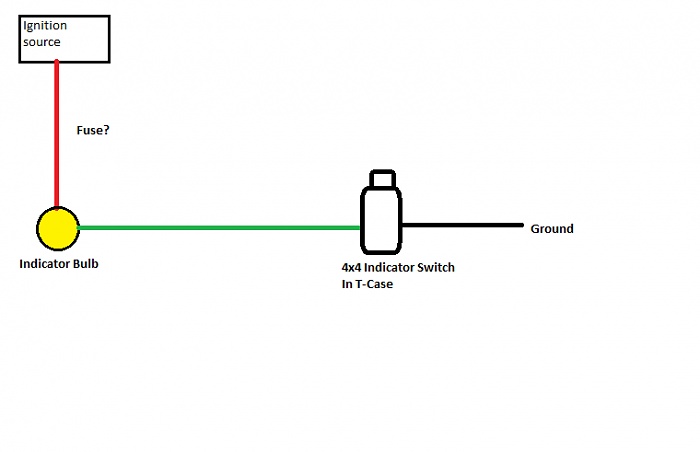

My question is what is the best way to go about this? I am not so much worried about the CEL, Maintenance light, E-Brake light, low washer light. They work ok. For the 4x4 indicator light, I think I am going to go with a small white LED if I can. But LED's take low volts. Would I be better off getting a typical 12v bulb and socket? Also, I am going to utilize a post-CAD axle year 4x4 indicator switch that screws into the t-case. If I recall, the switches are the same in shape and thread. All I need to do is unthread mine, rip out the existing wiring and vacuum lines, then screw in the new switch which is simply a ball that gets compressed with the 4x4 active. After that, as simple as running wiring from the switch to the light behind the dash. Should a fuse be utilized? If so, what size? This is going to be a simple circuit tapped into an ignition-hot source (so the light only activates when Jeep is on). Basically this:
Any input is welcome! Thanks!
Need some advice and assistance. My '91 XJ is doing another one of those 'break something little that annoys you' things.
My 4x4 indicator light does not work. I do not know what happened to it as it worked before. I even pulled the dash cover to replace the little bulb (PAIN!!) and no good. I have the disco CAD axle and last winter I locked the front axle together with the simple CAD eliminate by moving the fork over and keeping it in place with the clip. 4x4 light still never shines. I even pulled the sensor connector at the CAD housing and bridged the connectors. No go.
I hate this and am all for simplicity yet ease to fix and determine. I know after my CAD disconnect that I have probably umpteen miles of useless wiring and cracked vacuum lines to kill (sense the stock light will be useless even if working because of the CAD lock). So, drawing board time!!
I want to basically redesign what is behind this part of the dash (where the CEL, 'Maintenance Required', 4X4, etc. lights are at).
My question is what is the best way to go about this? I am not so much worried about the CEL, Maintenance light, E-Brake light, low washer light. They work ok. For the 4x4 indicator light, I think I am going to go with a small white LED if I can. But LED's take low volts. Would I be better off getting a typical 12v bulb and socket? Also, I am going to utilize a post-CAD axle year 4x4 indicator switch that screws into the t-case. If I recall, the switches are the same in shape and thread. All I need to do is unthread mine, rip out the existing wiring and vacuum lines, then screw in the new switch which is simply a ball that gets compressed with the 4x4 active. After that, as simple as running wiring from the switch to the light behind the dash. Should a fuse be utilized? If so, what size? This is going to be a simple circuit tapped into an ignition-hot source (so the light only activates when Jeep is on). Basically this:
Any input is welcome! Thanks!
#2
CF Veteran
Join Date: Aug 2009
Location: Hanover,Ont, Canada
Posts: 1,047
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.o
How about moving the switch from the cad, to the vacumm switch location in the t case? i think it is the same ball type switch. re wire a new indicator from there..
#3
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
But on the note of rewiring, should I use a fuse and 12v bulb or can I somehow wire in an LED?
#4
CF Veteran
Join Date: Aug 2009
Location: Hanover,Ont, Canada
Posts: 1,047
Likes: 0
Received 3 Likes
on
3 Posts
Year: 1991
Model: Cherokee
Engine: 4.o
You should always use a fuse for circuit protection, prevent future damage in the evnt of a short circuit. led requires a lot less amperage, either one will work. Basically a simple circuit in which the switch completes it. You could wire it so the switch completes the circuit to ground when closed...
#6
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
If'n I wanted to redo the whole kit-and-kaboodle with a custom indicator light setup, would it be as simple as finding the wires to each indicator light and just splicing it to wiring for a new bulb?
Also, I know LED's use much less amperage, but do they take 12v or do I have to wire in something?
Also, I know LED's use much less amperage, but do they take 12v or do I have to wire in something?
Trending Topics
#13
CF Veteran
Thread Starter
Join Date: Oct 2009
Location: Fauquier County, Virginia
Posts: 2,867
Likes: 0
Received 15 Likes
on
13 Posts
Year: 1991
Model: Cherokee
Engine: I-6 4.0 HO
Anyone have wire colors for the CEL and low washer fluid level light? I think I have traced the e-brake light. Haynes sucks.
