dark oil? sprayed all over bottom of engine
#1
Junior Member
Thread Starter
Join Date: Mar 2012
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
dark oil? sprayed all over bottom of engine
My dad was in a really bad accident with his tractor last night and my sister called me and told me and I freaked out and flew home in my jeep to say hi before they air lifted him from our house. I parked out on the side of the road to our neighbor hood because there was no were else to park and my jeep got left there for the past day. I got home this morning and drove my jeep back to our house. and as I was about to go into the house I decided for some reason to look under neath it and there was a thin spray of dark oil like stuff all over the bottom of part of the engine and other stuff. I also noticed that there was some oil around the oil filter not a ton but enough to notice on a quick glance. I just got a lift kit on a couple weeks ago and I don't remember there being that stuff there when I getting it put on. Should I be worried? I got a friend to drive me to the hospital this morning to see my dad instead of taking my jeep because I wasn't sure if I should drive it. and didn't want to maybe make things worse. Any help would really be great!! idk when ill be back from the hospital today but I was going to try to take some pictures too for you guys. Thanks so much
DanielleMarie
DanielleMarie
Last edited by daniellemarie008; 05-28-2012 at 02:05 PM.
#2
Seasoned Member
Join Date: Mar 2010
Location: Modesto
Posts: 379
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 high output straight 6
Sounds like you have a leak somewhere, I would start by cleaning up the engine where it is oily the best you can ( I use dawn dishsoap gets rid of oil great! )
Then from there check your oil level to make sure it is at a safe level as long as it is start the engine and let it run a bit, shut it down after a few and see if you can spot where the leak is coming from .
Hope your dad will be ok, I'll be praying for your family
Then from there check your oil level to make sure it is at a safe level as long as it is start the engine and let it run a bit, shut it down after a few and see if you can spot where the leak is coming from .
Hope your dad will be ok, I'll be praying for your family
#3
Member
Join Date: Nov 2011
Location: the cold, wet UK
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
Where abouts on the engine is the oil? is it toward the back? since you say you have some around the oil filter could it be the filter o rings? lots of oil leaks head toward the back of the engine due to the angle it sits at. could also be valve cover gasket leaking.
providing you dont find puddles under your jeep i wouldn't worry about driving it, just keep an eye on your levels and guages.
hope your dad is ok.
providing you dont find puddles under your jeep i wouldn't worry about driving it, just keep an eye on your levels and guages.
hope your dad is ok.
#5
Junior Member
Thread Starter
Join Date: Mar 2012
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Sounds like you have a leak somewhere, I would start by cleaning up the engine where it is oily the best you can ( I use dawn dishsoap gets rid of oil great! )
Then from there check your oil level to make sure it is at a safe level as long as it is start the engine and let it run a bit, shut it down after a few and see if you can spot where the leak is coming from .
Hope your dad will be ok, I'll be praying for your family
Then from there check your oil level to make sure it is at a safe level as long as it is start the engine and let it run a bit, shut it down after a few and see if you can spot where the leak is coming from .
Hope your dad will be ok, I'll be praying for your family
Thanks you really can't imagine how much that means they ended up not being able to save his leg during surgery and had to take it off so I've have had a really ruff day to say the least.
I will def clean it off and try that when i get back
#6
Junior Member
Thread Starter
Join Date: Mar 2012
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
#7
Junior Member
Thread Starter
Join Date: Mar 2012
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Where abouts on the engine is the oil? is it toward the back? since you say you have some around the oil filter could it be the filter o rings? lots of oil leaks head toward the back of the engine due to the angle it sits at. could also be valve cover gasket leaking.
providing you dont find puddles under your jeep i wouldn't worry about driving it, just keep an eye on your levels and guages.
hope your dad is ok.
providing you dont find puddles under your jeep i wouldn't worry about driving it, just keep an eye on your levels and guages.
hope your dad is ok.
I think it was more towards the front. and no there wasn't any puddles
Trending Topics
#8
Member
Join Date: Nov 2011
Location: the cold, wet UK
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1997
Model: Cherokee
Engine: 4.0
cant think what that might be really from the front. i posted as i seem to have had oil leaking from most places haha. the only things i can think of up front would be steering box, power steering fluid or coolant.
im sure someone much more 'in the know' than me will have better ideas
im sure someone much more 'in the know' than me will have better ideas
#9
Seasoned Member
Join Date: Mar 2010
Location: Modesto
Posts: 379
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 high output straight 6
I am sorry to hear about the loss of your dads limb, I hope he will make a speedy recovery.
As far as the oil leak, does it seam like it is possibly coming from behind the harmonic balancer? there is a seal behing it on the timing cover and could possibly be the source of the leak since you said it appears to be from the front of the motor.
As far as the oil leak, does it seam like it is possibly coming from behind the harmonic balancer? there is a seal behing it on the timing cover and could possibly be the source of the leak since you said it appears to be from the front of the motor.
#10
Junior Member
Thread Starter
Join Date: Mar 2012
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
I am sorry to hear about the loss of your dads limb, I hope he will make a speedy recovery.
As far as the oil leak, does it seam like it is possibly coming from behind the harmonic balancer? there is a seal behing it on the timing cover and could possibly be the source of the leak since you said it appears to be from the front of the motor.
As far as the oil leak, does it seam like it is possibly coming from behind the harmonic balancer? there is a seal behing it on the timing cover and could possibly be the source of the leak since you said it appears to be from the front of the motor.

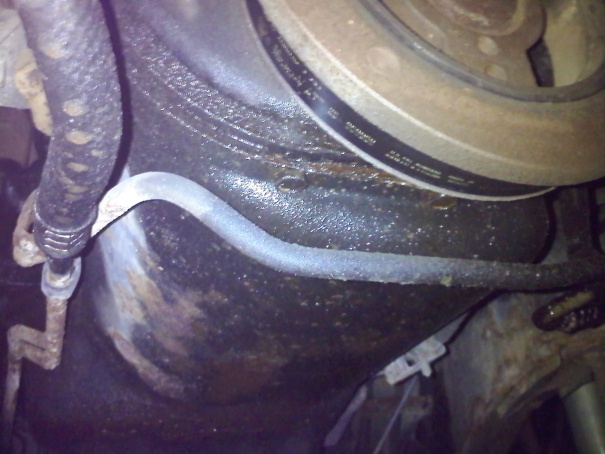

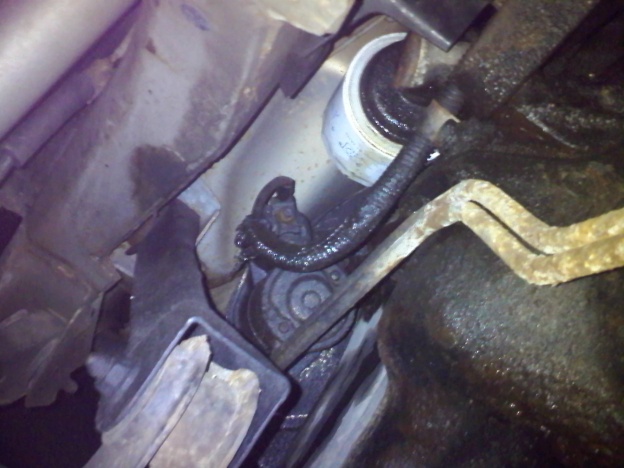

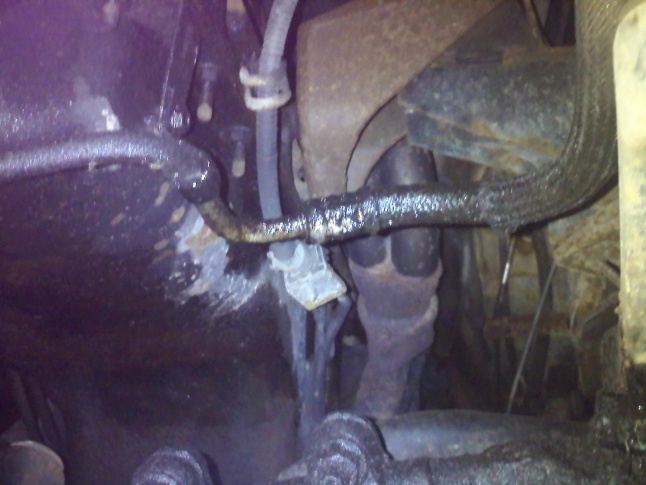

Haha i would love to say what exactly your talking about but i'm not sure what parts those are at the moment. I just got back from the hospital but it was already dark so I couldnt get any amazing pics but i did take some with flash for the moment being i'll up load them below! maybe you can tell some stuff from them
#12
Seasoned Member
Join Date: Apr 2011
Location: GSO NC
Posts: 328
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Engine: 4.0L HO
those don't look bad at all, keep an eye on all the fluid levels (engine oil, auto tranny fluid, power steering fluid). I would guess thats power steering fluid, on your tranny cooler line, could have been overfilled, overheated, or a small hose leak at the PS pump. Clean it all up (I spray brake parts cleaner on everything) and see if you can catch where its coming from.
#13
Seasoned Member
Join Date: Mar 2010
Location: Modesto
Posts: 379
Likes: 0
Received 1 Like
on
1 Post
Year: 1993
Model: Cherokee
Engine: 4.0 high output straight 6
Haha i would love to say what exactly your talking about but i'm not sure what parts those are at the moment. I just got back from the hospital but it was already dark so I couldnt get any amazing pics but i did take some with flash for the moment being i'll up load them below! maybe you can tell some stuff from them
Also the pulley with the belt on it in your pictures is the harmonic balancer/crank pulley. right behind it is a seal that goes into the timing cover.
If it is bad it can leak the way your describing from the front of the motor.
#14
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5
That sounds awful...sorry to hear that..
Anyway, something you want to watch, (as mentioned), the O rings in the filter adapter can harden and leak. It might blow oil all over, and back and drip off the bell housing. So if you find it there after cleaning & watching it, here's a pretty straight forward link on that >>> http://www.myjeepxj.com/cherokee-rep...filter-adapter
Anyway, something you want to watch, (as mentioned), the O rings in the filter adapter can harden and leak. It might blow oil all over, and back and drip off the bell housing. So if you find it there after cleaning & watching it, here's a pretty straight forward link on that >>> http://www.myjeepxj.com/cherokee-rep...filter-adapter
#15
those don't look bad at all, keep an eye on all the fluid levels (engine oil, auto tranny fluid, power steering fluid). I would guess thats power steering fluid, on your tranny cooler line, could have been overfilled, overheated, or a small hose leak at the PS pump. Clean it all up (I spray brake parts cleaner on everything) and see if you can catch where its coming from.
it's dark because all the parts covered with oil has picked up dirt while driving around
I'm also trying to figure this out on my new used xj and will be cleaning everything up tomorrow then checking fluid levels then monitoring
something tells me this is gonna take a while
