crankshaft sensor bolts ?
06-03-2015, 09:38 AM
#1
Newbie
Thread Starter
Join Date: Apr 2015
Posts: 8
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
crankshaft sensor bolts ?
hello recently changed my tranny and some how between the three people helping we forgot to disconnect the crankshaft senser from old trans before giving it off for core. so i know longer have the previous bolts can anyone tell me what size bolts i need to secure the crankshaft senser to the transmission if tried h8 1.25 30 mm long from o riellys it doens seem to want to start.
06-03-2015, 01:53 PM
#3
Junior Member
Join Date: Dec 2014
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Year: 2000 SE
Model: Cherokee
Engine: 4.0
Oddly enough I believe mine were 1/4-20 x 3/4" American size bolts. A 7/16" wrench fit on correctly and I can't find any metric bolt size that takes a 7/16" or 11 mm wrench. I didn't measure the bolt but that's what I got.
Last edited by Skb2706; 06-03-2015 at 01:58 PM.
06-03-2015, 02:00 PM
#4
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
hello recently changed my tranny and some how between the three people helping we forgot to disconnect the crankshaft senser from old trans before giving it off for core. so i know longer have the previous bolts can anyone tell me what size bolts i need to secure the crankshaft senser to the transmission if tried h8 1.25 30 mm long from o riellys it doens seem to want to start.
Those are special bolts. The parts catalogs don't even list them.
I think they are M6 bolts.
06-03-2015, 03:19 PM
#5
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

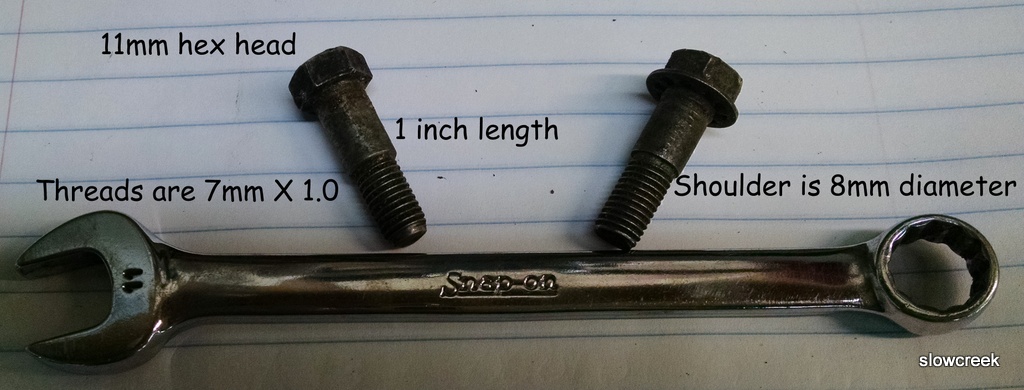

Here ya go.
The following users liked this post:
BillyBoy (01-31-2023)
06-03-2015, 07:03 PM
#7
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Trending Topics
06-03-2015, 07:05 PM
#8
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Not sure about this but I ran across a part number for "Crankshaft Bolts".
Part number 6503520. Dims are M7x1.00x25 mm. 25 mm is 1".
See if you can get one from the dealer and see if it looks like the bolts Cruiser's pic.
Part number 6503520. Dims are M7x1.00x25 mm. 25 mm is 1".
See if you can get one from the dealer and see if it looks like the bolts Cruiser's pic.
06-03-2015, 07:18 PM
#9
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Off Subject

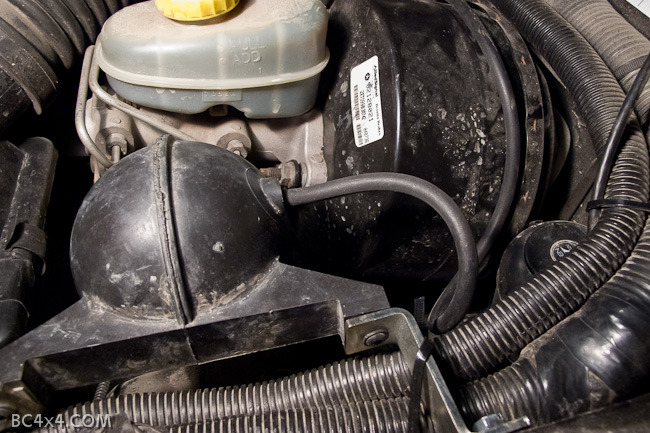

I don't know if you have these or not but I ran across two pics of a Vacuum Reservoir relocation - late model XJ. I think it's kind of cool for the off road/no front bumper pukes.
You always suggest relocation but no pics of a late model XJ relocation.
So help your self.
I already added them to my Vacuum Systems album.
06-03-2015, 07:41 PM
#10
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I don't know if you have these or not but I ran across two pics of a Vacuum Reservoir relocation - late model XJ. I think it's kind of cool for the off road/no front bumper pukes.
You always suggest relocation but no pics of a late model XJ relocation.
So help your self.
I already added them to my Vacuum Systems album.
You always suggest relocation but no pics of a late model XJ relocation.
So help your self.
I already added them to my Vacuum Systems album.
06-03-2015, 07:44 PM
#11
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
06-03-2015, 07:49 PM
#12
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
Well, well, well...looks like that part number I posted was a good one.
Edit: I'm so good sometimes it scares me. LOL
Yes, I will help myself to a cookie, thank you.
06-03-2015, 08:04 PM
#15
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,867
Received 1,525 Likes
on
1,237 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
