Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Coolant leak

Thread Tools

Search this Thread

Old Sep 8, 2020 | 06:06 PM
  #1
DOBBSE.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2019
Posts: 87
Likes: 0
Model: Cherokee (XJ)
Default Coolant leak

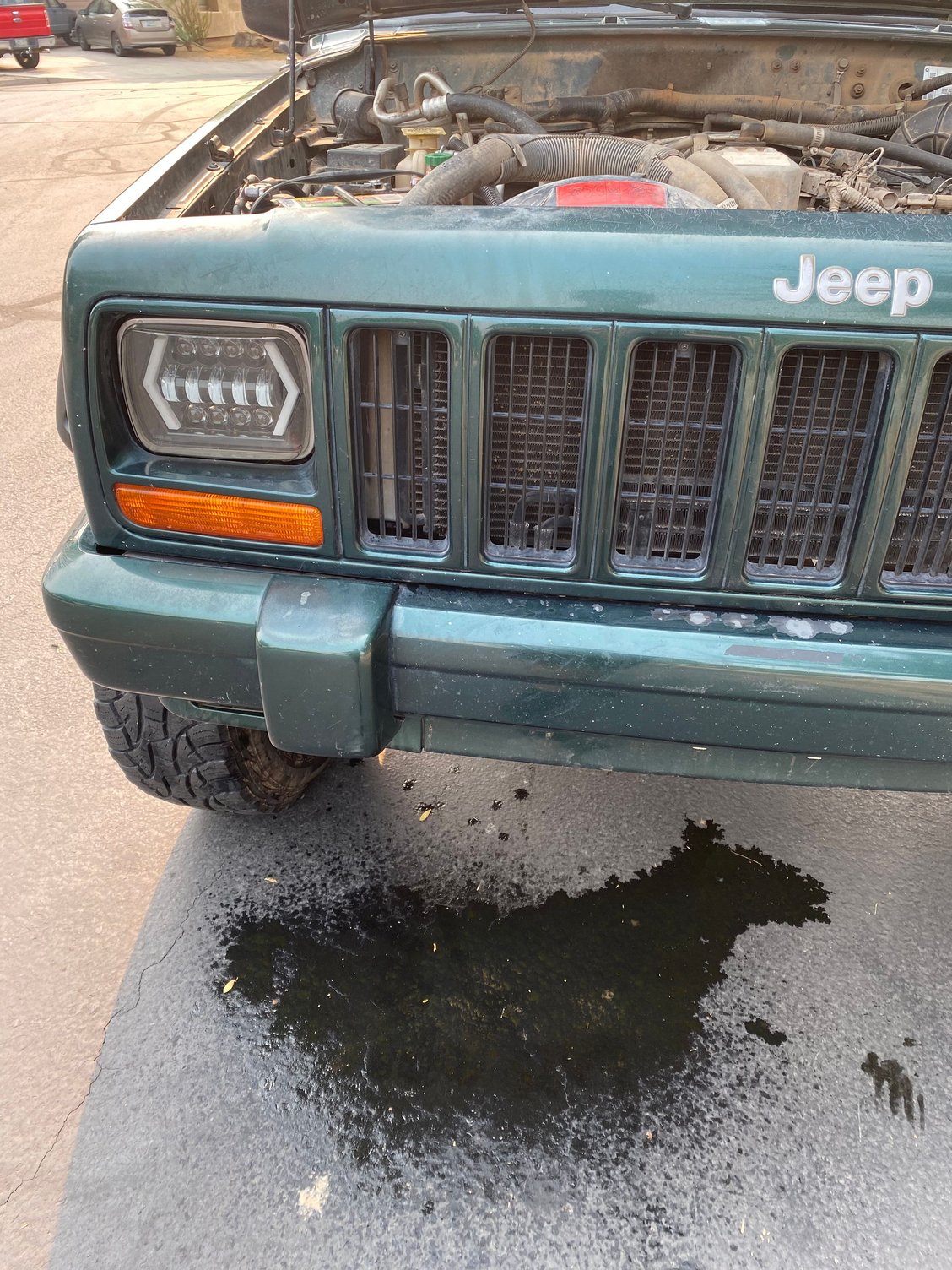

I have a 2000 jeep cherokee classic 4.0. I have Coolant leaking from somewhere around in front of the battery box. I can’t find the source, any suggestions would help please.

Reply
Old Sep 8, 2020 | 06:23 PM
  #2
fb97xj1's Avatar
CF Veteran

Joined: Dec 2015
Posts: 3,038
Likes: 338
From: PA
Year: 1997
Model: Cherokee
Engine: 4.0L
Default

Upper hose and surrounding area looks dry so the side tank of the radiator might have a crack in it, side tank seal is leaking, the drain is leaking, or the core itself. You will have to get in there to get a good look. Remove the battery and the grille if you have to.
Reply
Old Sep 8, 2020 | 06:30 PM
  #3
doublechaz's Avatar
Senior Member

Joined: Aug 2020
Posts: 614
Likes: 205
From: Prescott, AZ
Year: 1988
Model: Cherokee (XJ)
Engine: 4.0
Default

Also, perhaps the dentist style inspection mirror will help.

I had a tiny leak on a different vehicle a while back where I finally had to lay under it after driving home from work until it dripped before I could find where it was coming from.

If you really have bad luck you might end up having to add UV dye to the coolant and then using a UV flashlight to search it out.
Reply
Old Sep 8, 2020 | 07:02 PM
  #4
BlueRidgeMark's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Make it easy on yourself. Replace the radiator and hoses.
Reply
Old Sep 8, 2020 | 08:01 PM
  #5
DOBBSE.'s Avatar
Thread Starter
Junior Member

Joined: Oct 2019
Posts: 87
Likes: 0
Model: Cherokee (XJ)
Default

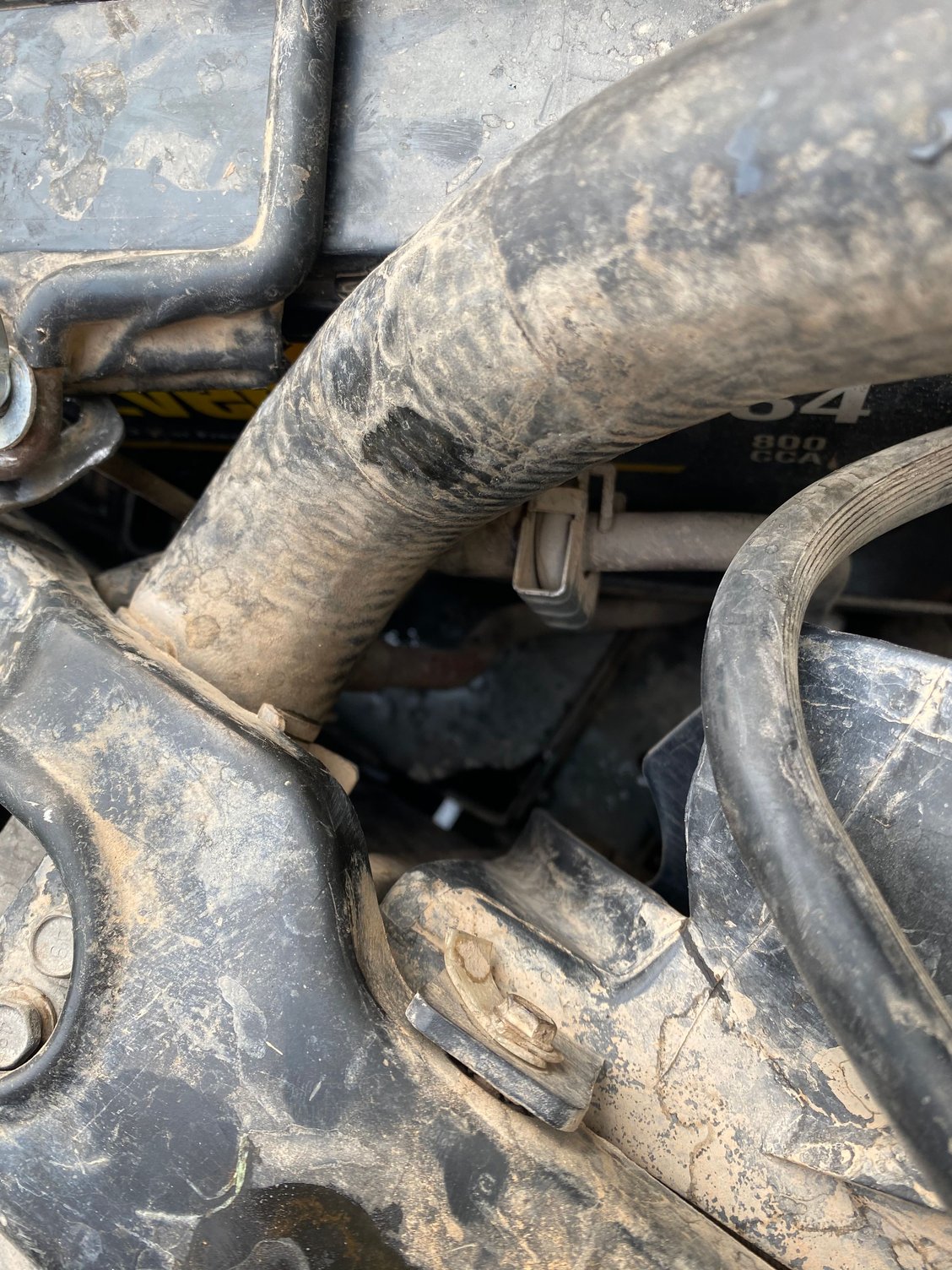

I looked at it closer while it was running and I found that it was leaking from the side of the radiator roght where this top hose connects
Reply
Old Sep 9, 2020 | 10:19 AM
  #6
Spencer_P's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Sep 2017
Posts: 1,560
Likes: 307
From: MO
Year: 1996
Model: Cherokee (XJ)
Engine: 4.0
Default

Was it the radiator itself that was leaking? One time that hose backed off enough to leak, from me resting my jump box on it a few times, all I had to do was push it back up and tighten the clamp.
Reply
Old Sep 9, 2020 | 10:30 AM
  #7
RocketMouse's Avatar
CF Veteran
5 Year Member
Liked

Joined: Nov 2017
Posts: 2,478
Likes: 275
From: Southern Texas (former AZ & Aus)
Year: 1999
Model: Cherokee(XJ)
Engine: I6 4.0L
Default

Originally Posted by BlueRidgeMark
Make it easy on yourself. Replace the radiator and hoses.
^^^^^^ this.... problem solved. Will save you time and headaches.
Reply
Old Sep 9, 2020 | 05:04 PM
  #8
boxburn's Avatar
CF Veteran

Joined: Oct 2018
Posts: 1,577
Likes: 279
From: United Kingdom
Year: 1995 RHD
Model: Cherokee (XJ)
Engine: 4.0l
Default

Originally Posted by BlueRidgeMark
Make it easy on yourself. Replace the radiator and hoses.
Also agree with this, coming from someone who replaced just the radiator and not to long after blew a hose. Also the guy who replaced the 5 "easy" freeze plugs and am now dealing with the hard 2 after one failed.
Reply
Old Sep 11, 2020 | 06:28 AM
  #9
BlueRidgeMark's Avatar
CF Veteran
10 Year Member
Liked
Loved
Community Favorite

Joined: May 2012
Posts: 7,965
Likes: 964
From: Lost in the wilds of Virginia
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Originally Posted by boxburn
. Also the guy who replaced the 5 "easy" freeze plugs and am now dealing with the hard 2 after one failed.

Hey, I think I'm entitled to an "I told you so!" on that one!
Reply
Old Sep 11, 2020 | 09:58 PM
  #10
4x4jeepmanthing's Avatar
CF Veteran

Joined: Jun 2016
Posts: 1,011
Likes: 20
From: CO
Year: 99
Model: Cherokee (XJ)
Engine: 4.0
Default

likely the tank to fin area cracked. you can visually confirm with UV dye if you cant see it leaking clearly. Its common for the fin to core area where they meet to crack, it allows the leaks to trickle down and make it hard to see where its coming from.
Reply
Old Sep 12, 2020 | 10:20 AM
  #11
lawsoncl's Avatar
CF Veteran
5 Year Member
Liked
Loved
Community Favorite

Joined: Dec 2017
Posts: 4,365
Likes: 1,215
Year: 1989
Model: Comanche (MJ)
Engine: 4.0
Default

Replace the radiator, and hoses/pump while you've got it all apart. Fix it soon, and do not let the engine overheat as the 2000 is prone to cracked heads when overheated.
Reply
