Coil Spring Bumper Touching...

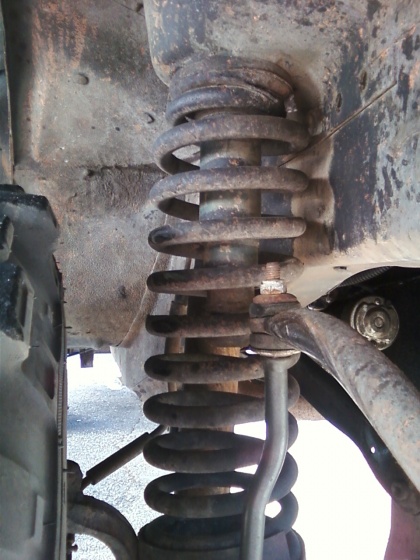

Well I think it is call the coil spring bumper not sure but when I jacked up my xj to check ball joints and such for DW I noticed this was on the side of the coil springs and not sure if this is normal or not.
#2
Senior Member
Join Date: Jul 2010
Location: Clover, S.C.
Posts: 620
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1998
Model: Cherokee
Engine: 4.0L
It looks like that is happening because while you have it jacked up, the axle is at full droop.
If it's not normal ( I never looked at mine while it was jacked up yet) maybe you have shocks that are longer than stock.
It's probably no big deal, as long as it's not binding too tightly.
If it's not normal ( I never looked at mine while it was jacked up yet) maybe you have shocks that are longer than stock.
It's probably no big deal, as long as it's not binding too tightly.
#3
Member
Join Date: Oct 2010
Location: New York
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0
mine does it I think its normal. I have a 4.5" lift and tried to put in longer bump stops in but you cant because there is no room. so I dont have any now
#5
Junior Member
Join Date: Oct 2009
Location: Hudson, WI
Posts: 89
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1996
Model: Cherokee
Engine: 4.0 liter K&N intake, Hushpower 40 series exhaust
I can't tell in the picture but do you have the coil spring isolators in place still? That holds the spring centered unless you droop till the spring is loose.
#7
Seasoned Member
Thread Starter
Join Date: Sep 2010
Location: Pensacola, Florida
Posts: 290
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 liter
Trending Topics
#8
Member
Join Date: Apr 2009
Location: Canada
Posts: 242
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L (242 CID) I6 MPI "Power Tech"
Did you center your axle after you lifted the Jeep?? Do you have an adjustable trackbar??
Did you extend your lower control arms appropriately?
Did you extend your lower control arms appropriately?
#9
Seasoned Member
Thread Starter
Join Date: Sep 2010
Location: Pensacola, Florida
Posts: 290
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 liter
I did not lift the jeep it is was lifted when I bought it around 6 weeks ago. I am pretty sure I do not have an adjustable trackbar how can I check for axle centered and if lca's were extended? I do not think the lca's were extended because that is what my tires hit when I turn to far or does this happen either way without any backspacing or spacers?
#10
CF Veteran
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors

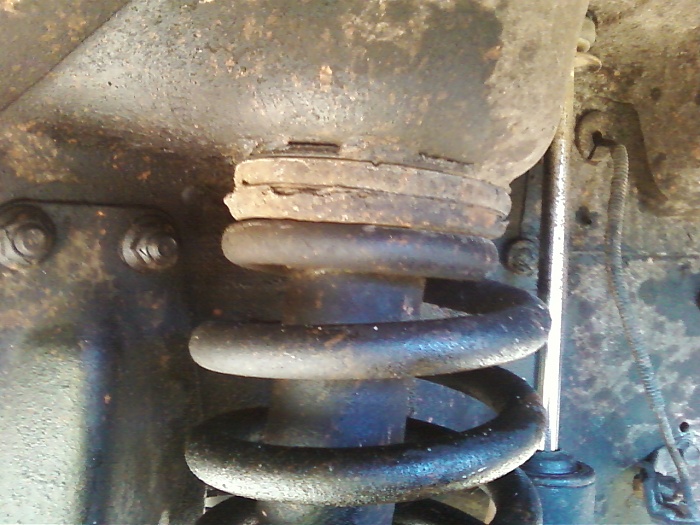

looks like you have aftermarket lcrs put up a pic of the top of the spring wher it goes to body you have a trac bar relocation bracket installed so you should be good there this a pic of thr bracket its on the pass side of the track bar cant see the other end where it bolts to drivers sideframe
#11
Member
Join Date: Apr 2009
Location: Canada
Posts: 242
Likes: 0
Received 1 Like
on
1 Post
Year: 2000
Model: Cherokee
Engine: 4.0L (242 CID) I6 MPI "Power Tech"
From that picture it is hard to tell, it's very dark. I can't see the control arms at all, do you have a better (brighter) picture? And one of the control arms?
The trackbar adjustable end will be on the top of the trackbar.
If you have stock control arms with 5" of lift, that is more than likely your problem. Stock lower control arms are 15.75", for 5" of lift they should be 16.6"...Stock upper control arms are 15", for 5" of lift they should be 15.25" to get all the angles correct.
The trackbar adjustable end will be on the top of the trackbar.
If you have stock control arms with 5" of lift, that is more than likely your problem. Stock lower control arms are 15.75", for 5" of lift they should be 16.6"...Stock upper control arms are 15", for 5" of lift they should be 15.25" to get all the angles correct.
#12
Seasoned Member
Thread Starter
Join Date: Sep 2010
Location: Pensacola, Florida
Posts: 290
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 liter
looks like you have aftermarket lcrs put up a pic of the top of the spring wher it goes to body you have a trac bar relocation bracket installed so you should be good there this a pic of thr bracket its on the pass side of the track bar cant see the other end where it bolts to drivers sideframe
#15
Seasoned Member
Thread Starter
Join Date: Sep 2010
Location: Pensacola, Florida
Posts: 290
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1994
Model: Cherokee
Engine: 4.0 liter

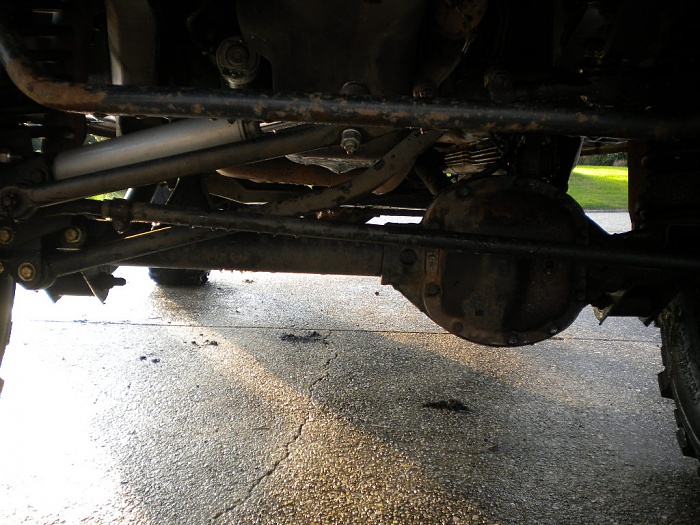

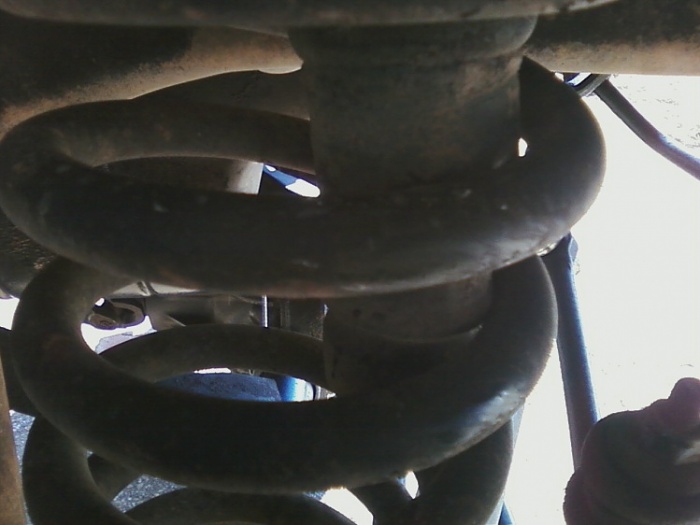

Ya they seem to be centered good and the 2 pictures I just posted are of the jeep on ground not jacked up and the one at beginning of thread is with it jacked up.
