money saving recovery hooks

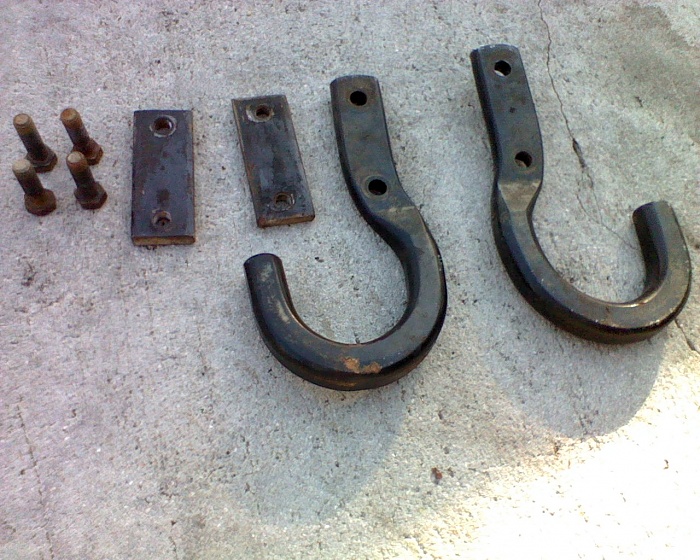

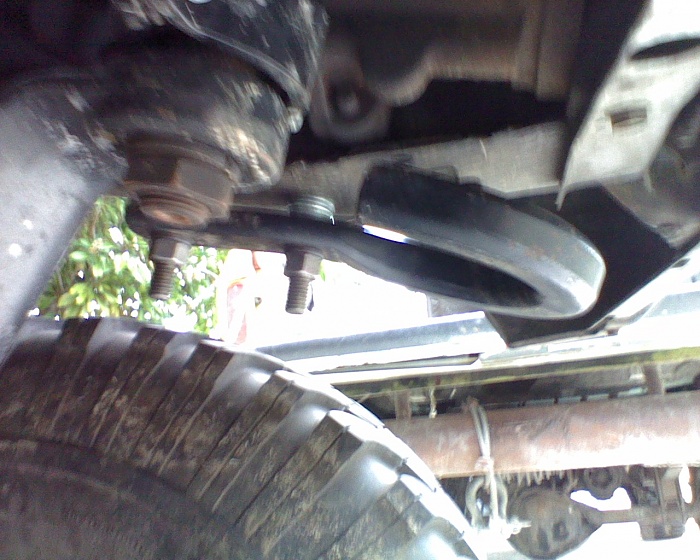

Got these hooks the other day in u pullit yard off a chevy truck,newer style cant miis them have a bend to them took hooks and bolt,and frame plate.Was looking at them today and noticed they are really close to the bolt pattern where the sway bar mounted. So i took a uni bit i bought at harbour freight for 14.99 cimes with two bits , Enlarged the holes in frame larged enought so the plate that came with the hooks can be used in side the frame to start the bolts straight.There is a small hole in the front of the frame rail that it fit in and wiggled it up so i could start the bolt in the chevy bracket i used longer bolts than came from the chevy. They were 12mmx1.75 and added washers to bring the hook down away from the frame on pass side to allow more room for hooking on to .On drivers side i dropped the bolts in the frame from the small hole on the side so they stuck down out of the frame and added washers and nuts. instant hooks . The frame is very thick in this area there is a plate in side for support .Better than the brackets and those litte bob the builder hooks offered on line i will test them this weekend dont think ther gonna pull out and you are not gonna bend them hooks.
Last edited by freegdr; 12-01-2010 at 02:21 PM.
#2
CF Veteran
Join Date: Feb 2010
Location: Cove, OR
Posts: 2,095
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1993
Model: Cherokee
Engine: 4.0
Looks good, hope you used grade 8 or better, using the washers as spacers isn't going to be as strong as sticking a piece of 1/4-3/8 by 2" wide and 4-5" long. It would make for less stress on the bolts when being pulled.
#4
CF Veteran
Join Date: Feb 2010
Location: Soddy Daisy TN
Posts: 5,420
Likes: 0
Received 0 Likes
on
0 Posts
Year: 97
Model: Cherokee
Engine: 4.0L
Might be better off with grade 5. Grade 8 will break whereas 5 will bend first. X2 on the washers. Looks good and nice recycling.
#6
CF Veteran
Remove the washers, you want it bolted down solid, that gap is the weak point.
If they're to flat, heat them and put a little bend.
Other than that they look good and should work with the backing plate in there.
If they're to flat, heat them and put a little bend.
Other than that they look good and should work with the backing plate in there.
#7
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
making plates to put where washers are they fit with out the washers but its tight for a six in 30 ft strap my super yanker fits with out it just fine
Trending Topics
#8
"CF Moderator"
Join Date: Sep 2008
Location: N.J. Shore Area
Posts: 3,045
Likes: 0
Received 2 Likes
on
2 Posts
Year: 1994
Model: Cherokee
Engine: l6 HO
#9
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
My friend sunk his Chevy pickup in mud See Album here and I tore one of his hooks right off the truck . Please be careful when pulling on one of these...Tj
#11
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
hugh thank ill deff keep my eye on it this weekend ive seen these ripped thru the frame but never broken
#13
CF Veteran
Thread Starter
Join Date: Mar 2010
Location: Broward County Fl.
Posts: 47,923
Likes: 0
Received 22 Likes
on
22 Posts
Year: 1989 xj sport 2dr
Model: Cherokee
Engine: 12 hole bosch Injectors
some time i have this heavy weight to pull out the super yanker rope really absorb the shock so its not so hard of a hit
