Hi names joe from El Paso Texas.
I have been dealing with my wiring for my 1986 2.5 4 cylinder cherokee. I have been trying to find pictures if engine bays for my year and engine for reference but no luck. If some of you could take the time to post pictures if your engine bays you would be the biggest help!

Also if someone can trace the fuel wires from the fuel pump up and let me know where they connect. The PO cut the two wires and ran only one up but left another just hanging there and I can't find where it goes. It has to be the gauge wire since the gauge always reads full.

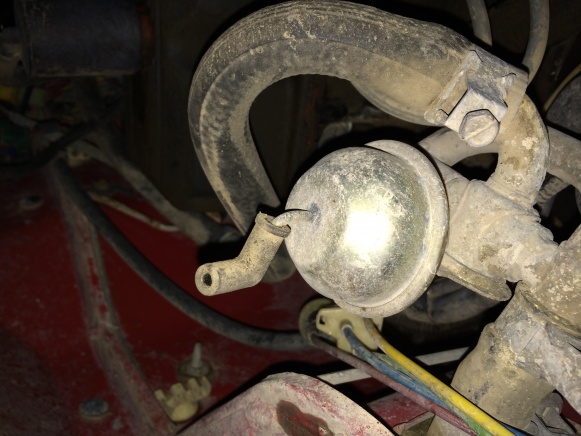

I can't figure out what goes here. I know a line I just don't know which one

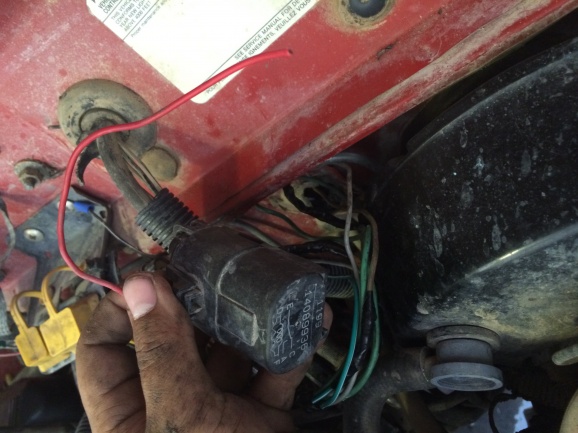

passenger side of engine bay no clue where this wire goes



Can anyone help me out identifying these?



the middle one controls the water flow to the heater core. There should be a small vacuum plastic tube from heater temp control on dash to valve. on my 96 the little tubes comes thru the firewall with the heater hoses and AC tubes.
