bypass pulley ac pics
hi all, done a search but cant find a pic of a bypass pulley for ac pump... have seen one on here but cant find it...any help would be great..
cheers the kiwi
cheers the kiwi
08-29-2009, 09:27 PM
#2
Are you looking for something like this. This is off of a 89 Comanche that was A/C delete.
The pulley bracket by itself.
The bracket mounted on the accessory mount that also holds the alternator, idler pulley, and the mechanical fan.
The pulley bracket by itself.
The bracket mounted on the accessory mount that also holds the alternator, idler pulley, and the mechanical fan.
08-29-2009, 09:41 PM
#3
Senior Member
Join Date: Apr 2009
Location: Phillipsburg, NJ
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.ol renix
Winston where the heck did you get that? I looked for 3 months and couldn't find one to fit a 87-90. I stuck an old compressor on there just for the pulley when my seized.
08-29-2009, 09:51 PM
#4
Was pillaging the local jy a couple of weeks ago and found it in a 89 Comanche. All I pulled at first was the A/C delete bracket. Then realized that I needed the lower bracket as well, so bigomudders pulled it for me when he was there yesterday. The difference in that bracket and my stock 91 bracket is the Renix era compressor has 2 bolts that run front to back to mount it. HO era compressors mount with 4 bolts from the top.
08-29-2009, 09:56 PM
#5
Senior Member
Join Date: Apr 2009
Location: Phillipsburg, NJ
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.ol renix
Was pillaging the local jy a couple of weeks ago and found it in a 89 Comanche. All I pulled at first was the A/C delete bracket. Then realized that I needed the lower bracket as well, so bigomudders pulled it for me when he was there yesterday. The difference in that bracket and my stock 91 bracket is the Renix era compressor has 2 bolts that run front to back to mount it. HO era compressors mount with 4 bolts from the top.
08-29-2009, 09:59 PM
#7
Senior Member
Join Date: Apr 2009
Location: Phillipsburg, NJ
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1990
Model: Cherokee
Engine: 4.ol renix
hi winston, thats what im after mate, will those ones fit a 95 xj.....cheers...
will those ones fit a 95 xj.....cheers...
They even sell them on ebay.
HO era compressors mount with 4 bolts from the top.
Trending Topics
08-29-2009, 09:59 PM
#8
08-29-2009, 10:13 PM
#10

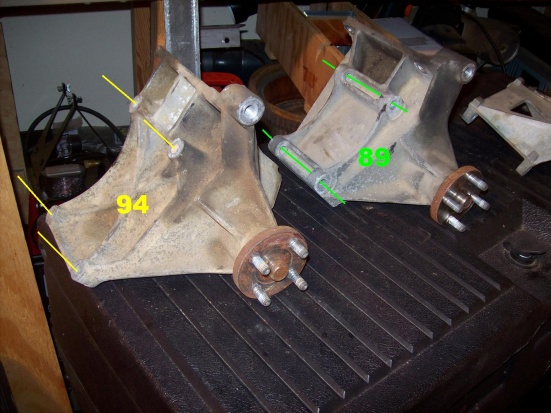

Here is the difference in the Renix and HO compressor mounts.
Renix, on the right, 2 bolts front to back
HO, on the left, 4 bolts from the top.
Like Skreed said, if you find one from a 91+, it will be a direct bolt on.
Renix, on the right, 2 bolts front to back
HO, on the left, 4 bolts from the top.
Like Skreed said, if you find one from a 91+, it will be a direct bolt on.
08-29-2009, 10:49 PM
#12
I didn't either until I realized the A/C delete bracket would not mount to my 91. I would have taken the lower bracket from the 87 junker, but the engine in it was from a 94 which is why I have the extra HO bracket. Thankfully the MJ was still on the jy lot so my brother could snag the lower bracket for me.
08-29-2009, 10:55 PM
#14
Awesome find, I looked that up after you posted it.
Here is the link to it:
http://www.napaonline.com/MasterPage...By-Pass+Pulley
08-29-2009, 11:08 PM
#15
Senior Member
Thread Starter
Join Date: Aug 2008
Location: christchurch new zealand
Posts: 511
Likes: 0
Received 2 Likes
on
2 Posts
Year: 95
Model: Cherokee
Engine: stock
again gentlemen i thank you, if any of you do get down here one day , i will repay with some awesome wheeling and kiwi hospitality... will try and order one , miss out the middle man and see how i go..might save some bucks......cheers again
will try and order one , miss out the middle man and see how i go..might save some bucks......cheers again
