Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Budget Builds: What Junkyard Parts Will Fit Cherokee?

Thread Tools

Search this Thread

Old May 24, 2012 | 10:07 AM
  #1186
Alertmicro's Avatar
Member

Joined: Sep 2010
Posts: 220
Likes: 0
From: little rock arkansas
Year: 1999
Model: Cherokee
Engine: High output 4.0L with torque header
Default

Originally Posted by dukie564
do not cut coils - they will ride even worse, and are dangerous like that
X2
Reply
Old May 24, 2012 | 10:10 AM
  #1187
K_Nyman's Avatar
Newbie

Joined: Mar 2012
Posts: 11
Likes: 0
From: philadelphia, pa
Year: 2000
Model: Cherokee (XJ)
Default

10-4
Reply
Old May 24, 2012 | 10:27 AM
  #1188
LittleMeanPurpleMachine's Avatar
Member

Joined: Mar 2011
Posts: 208
Likes: 1
From: Edmonton, Alberta, Canada
Year: 1998
Model: Cherokee
Engine: 4.0 I6
Default

Back to the axles, I got a 98 automatic with the D35 rear and want to start building a C8.25 with disc brakes to swap. My question is there is two 98's at the junkyard right now and both have C8.25 rears, what are the chances they have the same gear ratios and how would I find out? Don't really want to pull the diff cover off but I will if I have to. Thanks!!
Reply
Old May 24, 2012 | 10:44 AM
  #1189
Unleashed's Avatar
CF Veteran

Joined: Oct 2010
Posts: 1,082
Likes: 1
From: SoCal, San Fernando
Model: Cherokee
Engine: 4.0 I6
Default

Originally Posted by LittleMeanPurpleMachine
Back to the axles, I got a 98 automatic with the D35 rear and want to start building a C8.25 with disc brakes to swap. My question is there is two 98's at the junkyard right now and both have C8.25 rears, what are the chances they have the same gear ratios and how would I find out? Don't really want to pull the diff cover off but I will if I have to. Thanks!!

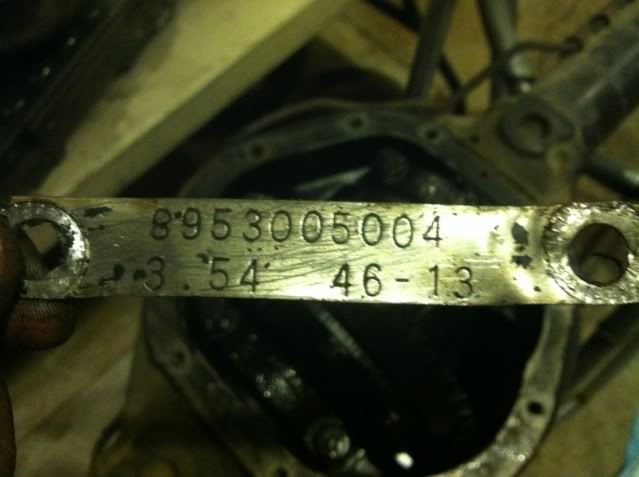

They should have a tag on them on one of the bolts holder the cover on with a bunch of numbers but you can find it on there and if they are both automatic they should be 3.55 but if it's stick it will be 3.07

Something like this
Name:  70e4cdbf.jpg
Views: 112
Size:  35.5 KB
Reply
Old May 24, 2012 | 03:06 PM
  #1190
tkgray9980's Avatar
Member

Joined: Jul 2010
Posts: 126
Likes: 0
From: Oregon in the valley
Year: 1992 Laredo
Model: Cherokee
Engine: 4.0 HO
Default

went to JK last week and found 3in rancho lift springs and transfer case shield. going back tomorrow to look for other goodies
Reply
Old May 25, 2012 | 09:44 AM
  #1191
No4x4Yet's Avatar
Senior Member

Joined: Jul 2010
Posts: 997
Likes: 1
From: Long Island NY
Year: 2000
Model: Cherokee
Default

Originally Posted by dukie564
do not cut coils - they will ride even worse, and are dangerous like that
Originally Posted by Alertmicro
X2
I hate the misinformation on the internet! Cutting coils IS NOT BAD, when done properly! First you can only cut single rate springs, most stock springs are. Second you can only cut dead coils! Usually you cant only get about a inch of drop by cutting the spring and not hurting the ride or safety. So in this case it prolly wouldnt work, but that doesn mean its bad.
Reply
Old May 25, 2012 | 01:06 PM
  #1192
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

Originally Posted by No4x4Yet
I hate the misinformation on the internet! Cutting coils IS NOT BAD, when done properly! First you can only cut single rate springs, most stock springs are. Second you can only cut dead coils! Usually you cant only get about a inch of drop by cutting the spring and not hurting the ride or safety. So in this case it prolly wouldnt work, but that doesn mean its bad.
ok well you're partially right - we have tangential end style coils, so you CAN cut them, but only with a cutoff wheel or hacksaw, and only from the bottom.

However no matter how much you cut off, it will effect the ride quality. I still don't advise it.
Reply
Old May 29, 2012 | 11:07 AM
  #1193
No4x4Yet's Avatar
Senior Member

Joined: Jul 2010
Posts: 997
Likes: 1
From: Long Island NY
Year: 2000
Model: Cherokee
Default

Originally Posted by dukie564
ok well you're partially right - we have tangential end style coils, so you CAN cut them, but only with a cutoff wheel or hacksaw, and only from the bottom.

However no matter how much you cut off, it will effect the ride quality. I still don't advise it.

Most spring are like that and can only be cut from the bottom. Cutting on the spring does nothing beside make it shorter and lower the vehicle. The spring rate which is the majority of the ride quality doesnt change. If you cut too much and the spring bottoms out or the shock doesnt work with the new height then it will ride like crap.
Reply
Old May 29, 2012 | 11:10 AM
  #1194
NewKindOfClown's Avatar
Moderator of Jeeps

Joined: Jul 2011
Posts: 21,029
Likes: 3
From: Frederick, MD from Cleveland, OH
Year: 1993 YJ Wrangler
Engine: 4.0 I6
Default

Reply
Old May 29, 2012 | 11:44 AM
  #1195
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by No4x4Yet

Most spring are like that and can only be cut from the bottom. Cutting on the spring does nothing beside make it shorter and lower the vehicle. The spring rate which is the majority of the ride quality doesnt change. If you cut too much and the spring bottoms out or the shock doesnt work with the new height then it will ride like crap.
Not winning
Reply
Old May 29, 2012 | 11:46 PM
  #1196
fedx95's Avatar
Senior Member

Joined: Dec 2010
Posts: 1,358
Likes: 0
From: Orlando-Miami
Year: 1993
Model: Cherokee
Engine: 4.0 HO
Default

This is going to turn into one of those threads....I can't wait, i've seen the spring rate debate soo many times.

if you cut the spring, the overall spring rate heightens. Just get it already!!
Reply
Old May 30, 2012 | 07:02 AM
  #1197
BNJeepsta's Avatar
CF Veteran

Joined: Jul 2011
Posts: 2,164
Likes: 1
From: Warren, Pa
Year: 97
Model: Cherokee
Engine: 4.0L
Default

Originally Posted by fedx95
This is going to turn into one of those threads....I can't wait, i've seen the spring rate debate soo many times.

if you cut the spring, the overall spring rate heightens. Just get it already!!
Exactly!!
Reply
Old May 30, 2012 | 08:53 AM
  #1198
dukie564's Avatar
☠ CF Sheriff ☠
Premium Member

Joined: Nov 2009
Posts: 15,197
Likes: 18
From: Aberdeen, MD
Year: 1995
Model: Cherokee
Engine: 4.0L HO I-6, 703 Injectors, Brown Dog Super Engine Mounts
Default

.
Attached Images
Reply
Old May 30, 2012 | 11:40 AM
  #1199
jtodaro's Avatar
Member
10 Year Member

Joined: May 2012
Posts: 166
Likes: 0
From: Missouri
Year: 1996
Model: Cherokee
Engine: 4.0
Default

Originally Posted by dukie564
we have tangential end style coils, so you CAN cut them, but only with a cutoff wheel or hacksaw, and only from the bottom..
Plasma Cutter. It will localize the heat transfer to the rest of the spring, and will slice through them in no time. Never use a torch as your spring will lose it's temper and collapse.
Reply
Old May 30, 2012 | 11:53 AM
  #1200
N20jeep's Avatar
CF Veteran

Joined: Mar 2010
Posts: 6,685
Likes: 6
From: Jacksonville, FL
Year: 92
Model: Cherokee
Engine: 4.0
Default

Originally Posted by fedx95
This is going to turn into one of those threads....I can't wait, i've seen the spring rate debate soo many times.

if you cut the spring, the overall spring rate heightens. Just get it already!!
Lol, I chose not to get involved with another spring rate argument
Reply
