Brake line problems!
Alright to cut a long story short, my leaf spring broke a part of my brake line off and since it was starting to leak quite bad, i loosened the little brake line hub that sits on the axle (to get the broken line higher up).
On the "rear" side of the brake housing, there is a little nipple that connects to the line and that has a 10mm screw (?) that holds it in place, I tried to unscrew it but since the whole thing is quite old, the nipple and metal came right off! And no, it's no the bleeding nipple.
So, what happens now? Do i need a new axle, is it possible to fix? I have no access to power tools. A new brake line is possible but it's the little nipple thing i'm mostly worried about.
Any ideas?
On the "rear" side of the brake housing, there is a little nipple that connects to the line and that has a 10mm screw (?) that holds it in place, I tried to unscrew it but since the whole thing is quite old, the nipple and metal came right off! And no, it's no the bleeding nipple.
So, what happens now? Do i need a new axle, is it possible to fix? I have no access to power tools. A new brake line is possible but it's the little nipple thing i'm mostly worried about.
Any ideas?
#3
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
But yes, a picture will be uploaded later, I don't have a camera atm.
#5
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
But, any nipples that come out from behind the brake drum (towards the axle), does anything warrant a new axle? Or can most pieces be changed individually? For example, can you change out the whole brake housing on just one side of the rear axle?
And yes, noticed that I din't type which axle it is - the rear axle, driver side.
#6
CF Veteran
Join Date: Dec 2011
Location: Roanoke, VA
Posts: 1,050
Likes: 0
Received 2 Likes
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Alright, will try and get one later tonight.
But, any nipples that come out from behind the brake drum (towards the axle), does anything warrant a new axle? Or can most pieces be changed individually? For example, can you change out the whole brake housing on just one side of the rear axle?
And yes, noticed that I din't type which axle it is - the rear axle, driver side.
#7
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
Ahh, facing out the back of the drum would be the bleed for the wheel cylinder. And pretty much you can replace just about any part of the axle, drums, shoes, hardware, about the only thing that warrants a new axle is a) need a stronger one or b) gears went asploding and trashed the housing somehow. Granted gears and whatnot are perfectly replaceable, but sometimes a new axle is just easier and could be an upgrade
Hopefully it's not an expensive fix.
Trending Topics
#9
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
But from what i've gathered i need a flare tool to make new hard lines and I think, maybe a new cylinder or perhaps it was just the fitting to the cylinder on the hard line that broke....I'll get a picture soon and you guys can confirm if i'm on the right track.
#10
Member
Join Date: Oct 2013
Location: Chicago
Posts: 211
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
You can get pre flared and outfitted lines by length. You just need to be positive on the size. Most good old fashion parts stores will have them. You will need a bending tool to bend the line like or as close to the original (so try to save as much of it as possible) you can make a template of the line with a wire hanger.
#11
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0

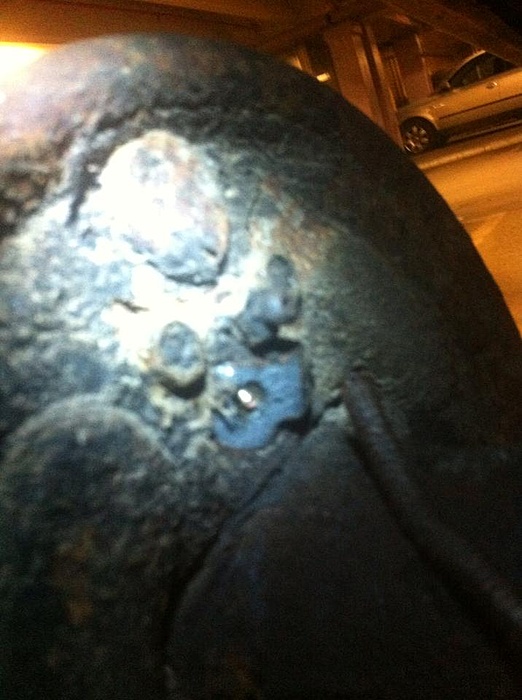

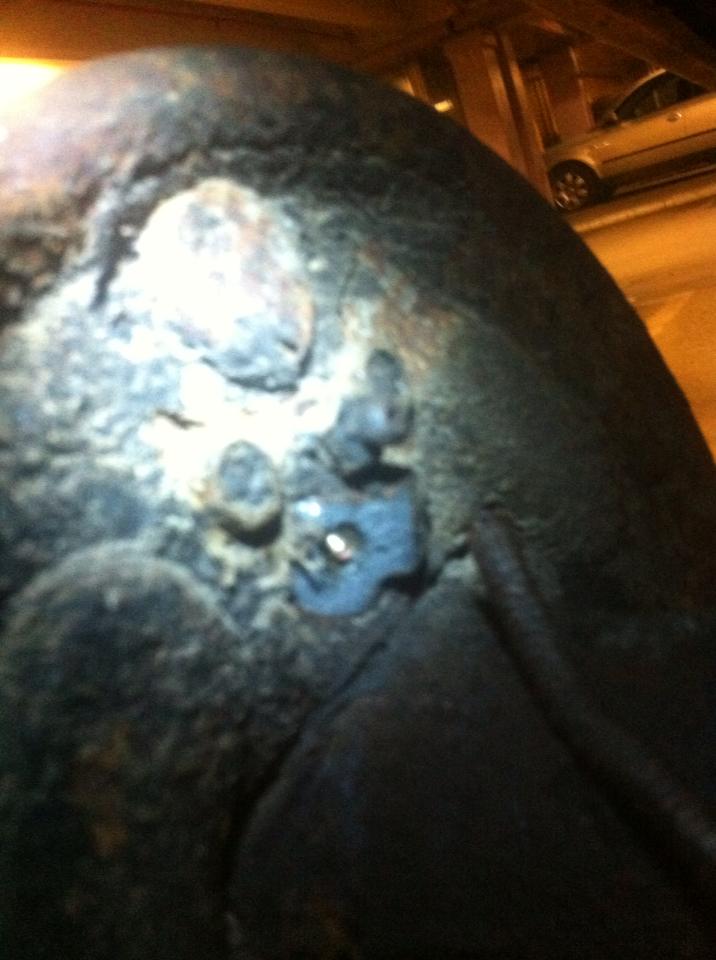

Alright - here are the pictures! The damage is the "grey" area, sorry about the mega blur, camera focus doesn't work but you should still be able to make out what it is.

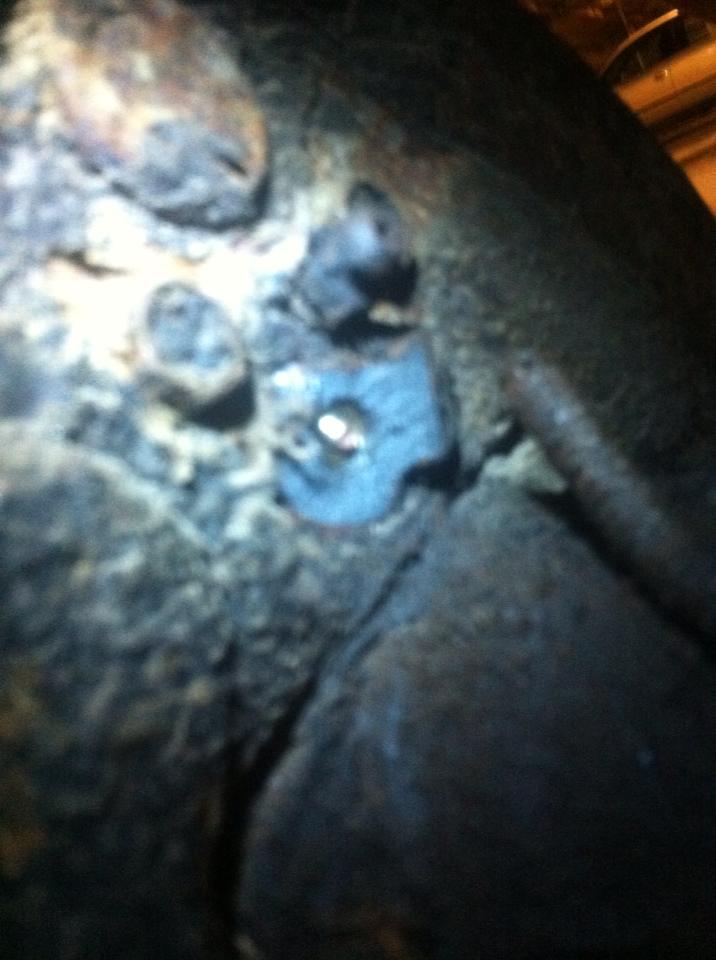

The breather nipple is the bit sticking out in the second picture, with a small "dent" in it. Have I just broken off a piece of the cylinder and that is all break related i need to replace?
Also, the cylinder bolts were stuck, hard as a rock, do you need to take special care not to break them or can I just go ahead and replace them if i need to drill them out?
The breather nipple is the bit sticking out in the second picture, with a small "dent" in it. Have I just broken off a piece of the cylinder and that is all break related i need to replace?
Also, the cylinder bolts were stuck, hard as a rock, do you need to take special care not to break them or can I just go ahead and replace them if i need to drill them out?
#12
THE Admin
Join Date: Sep 2010
Location: Lantana, Fl
Posts: 34,036
Received 231 Likes
on
187 Posts
Year: 1996
Model: Cherokee (XJ)
Engine: 4.Slow
Alright - here are the pictures! The damage is the "grey" area, sorry about the mega blur, camera focus doesn't work but you should still be able to make out what it is.
The breather nipple is the bit sticking out in the second picture, with a small "dent" in it. Have I just broken off a piece of the cylinder and that is all break related i need to replace?
Also, the cylinder bolts were stuck, hard as a rock, do you need to take special care not to break them or can I just go ahead and replace them if i need to drill them out?
The breather nipple is the bit sticking out in the second picture, with a small "dent" in it. Have I just broken off a piece of the cylinder and that is all break related i need to replace?
Also, the cylinder bolts were stuck, hard as a rock, do you need to take special care not to break them or can I just go ahead and replace them if i need to drill them out?
#13
Member
Join Date: Oct 2013
Location: Chicago
Posts: 211
Likes: 0
Received 1 Like
on
1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
an overnight soaking with some PB blast should free em up.
but this might turn into a fiasco, that's a lot of rot going on there. I would replace the line all the way up to master cylinder while going through the trouble. Not all that difficult nor take that long.
and do the other side while I'm at it.
but this might turn into a fiasco, that's a lot of rot going on there. I would replace the line all the way up to master cylinder while going through the trouble. Not all that difficult nor take that long.
and do the other side while I'm at it.
Last edited by dwright98xj; 10-10-2013 at 02:46 PM.
#14
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
an overnight soaking with some PB blast should free em up.
but this might turn into a fiasco, that's a lot of rot going on there. I would replace the line all the way up to master cylinder while going through the trouble. Not all that difficult nor take that long.
and do the other side while I'm at it.
but this might turn into a fiasco, that's a lot of rot going on there. I would replace the line all the way up to master cylinder while going through the trouble. Not all that difficult nor take that long.
and do the other side while I'm at it.
#15
Member
Thread Starter
Join Date: Jul 2013
Location: Stockholm, Sweden
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0
After a bit of searching, im now positive that i just need to replace the cylinder and get a pair of new hard brake lines but one thing I can't seem to find is what nipple to use for the wheel cylinder > hard line....
