Blower wiring mess halp
#1
CF Veteran
Thread Starter
Blower wiring mess halp
Oh joys another issue i am tackling. This time my blower motor issue lol and yes it does work but i am meticulous and want to do everything right like it was supposed to be. Ok my main issue is the previous owner hard wired the blower motor so it works but the main issue that irks me is i have to turn it off or else when i turn my jeep off the blower stays running i dont like that as on the first speed its to quiet for me to hear and i usually forget to turn it off plus i have 2 wires running throughout the dash coming out of the 4wd shifter that i wire nutted so it stops jabbing my leg when driving but i noticed the wire gets warm to the touch when i have it running. Well anyways i just got done replacing the blower motor resistor on my first step to fixing the entire system and onto tackling the wires and i am lost, what am i supposed to wire and how? i provided pictures of the system that is beyond me and worried it may start a fire or blow something out whatever that is supplying it power. i didnt remove anything yet as i gotta go somewhere and cant disconnect the battery just yet. oh and also off subject i fixed my ac in it and now i got a check engine light and went to test it and a code came back as p0443 evap canister purge solenoid issue how would i fix that as well if you have the time because i noticed i cant fill the tank up all the way without going very slow or itll make the gas hose click and stop and it stops at 3/4 of a tank and have to go slow the rest of the way. thanks in advanced
heres a look at the mess
i noticed those wires are different colors....
more cut wire fun
*sighs* this guy is a moron
is this normal?
yummy crusty goodness
pretty pretty shiny shiny. kinda wish he just ordered this online was only 13 bucks and came in the mail 4 days later instead of this crap
also this was the code i mentioned it popped up after my ac was fixed maybe they bumped the module and broke it? it is quite close to the ac system
heres a look at the mess
i noticed those wires are different colors....
more cut wire fun
*sighs* this guy is a moron
is this normal?
yummy crusty goodness
pretty pretty shiny shiny. kinda wish he just ordered this online was only 13 bucks and came in the mail 4 days later instead of this crap
also this was the code i mentioned it popped up after my ac was fixed maybe they bumped the module and broke it? it is quite close to the ac system
Last edited by EEVEE; 05-06-2017 at 03:47 PM.
#2
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0

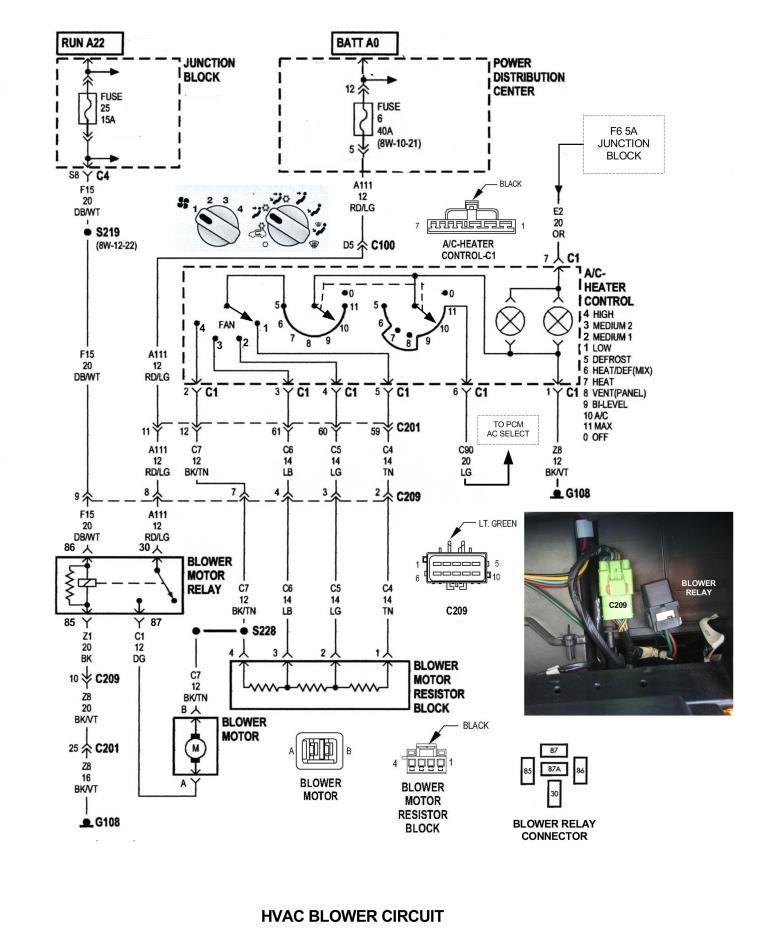

You need a wiring diagram.
#4
CF Veteran
Thread Starter
ohhh ok thank you obviously i am missing that relay socket. sorry for the mass delay in response internet was shut off lol.
