blower fan not working

Reply Subscribe

Thread Tools

Search this Thread

Apr 19, 2011 | 11:16 AM

#16

87xj Pioneer

Seasoned Member

Joined: Mar 2011

Posts: 253

Likes: 1

From: Shawnee, Oklahoma

Year: 1987

Model: Cherokee

Engine: 4.2 .020 over

Quote:

Originally Posted by 87xj Pioneer

OK I can't figure this thing out..... checked the resistor with my buddy's Jeep... worked fine!! Took my dash apart and found the switch was a little melted so I fixed it but didn't fix the fact that the blower motor will not turn on...checked all the fuses in the fuse panel and all are good but I'm not getting any power to the switch itself and I know the motor works cause I wired it to the battery but can anyone tell me what to look at now?? I know I'm Not getting any power to the switch so what would cause this seeing as though the fuse is good?!?!?! Oh and I tested the switch just in case and its fine!!

^^^

Apr 19, 2011 | 11:35 AM

#17

sthon

CF Veteran

Joined: Mar 2011

Posts: 2,570

Likes: 4

From: California

Year: 1992

Model: Cherokee

Engine: 4.0 HO

Sounds like the resistor, it's only a $13 part.

Apr 19, 2011 | 11:57 AM

#18

87xj Pioneer

Seasoned Member

Joined: Mar 2011

Posts: 253

Likes: 1

From: Shawnee, Oklahoma

Year: 1987

Model: Cherokee

Engine: 4.2 .020 over

The resistor is good!!! I know this because I put it in my buddy's Jeep and it allowed him to run all 4 settings on his!!!! Do people seriously not read a thread before they post the same thing 15 other people have??? I know this isn't my thread but c'mon people if u would read the whole thread u would c that I've been through the resistor and the switch and the fuses and still HAVE NO POWER TO THE SWITCH...... If the switch has no power then the resistor is not going to matter!!!

Apr 19, 2011 | 12:21 PM

#19

sthon

CF Veteran

Joined: Mar 2011

Posts: 2,570

Likes: 4

From: California

Year: 1992

Model: Cherokee

Engine: 4.0 HO

Quote:

Originally Posted by 87xj Pioneer

If you have no power to the switch how the hell does it work on high?

Ah, nm see you said high is now dead also, three people asking questions on the same thread makes it a bit confusing, no reason to be an *** about it.

Since you know the blower, resistor, and switch work and fuses are good that only leaves the wiring.

Last edited by sthon; Apr 19, 2011 at 12:28 PM.

Apr 19, 2011 | 12:55 PM

#20

87xj Pioneer

Seasoned Member

Joined: Mar 2011

Posts: 253

Likes: 1

From: Shawnee, Oklahoma

Year: 1987

Model: Cherokee

Engine: 4.2 .020 over

I'm not trying to b n *** and there's only 2 people asking questions on here, me and the OP, and the op solved his problem with the resistor so that leaves me!! But back to the question..... is there a relay between the fuse and the switch?? Cause I've been told there is a relay somewhere behind the glovebox but can't find the dang thing and the wires don't look burnt at all.... the connector on the back of the switch was melted a lil bit but not to the point where it was bad but I fixed it anyway

Apr 19, 2011 | 01:10 PM

#21

RENIXBEAST

Senior Member

Joined: Aug 2009

Posts: 958

Likes: 0

From: Effingham, N.H.

Year: 1989

Model: Cherokee

Engine: 4.0 I6

Just a fuse for the blower motor. I had the same problem and it ended up being the blower motor itself. I would replace it, its only 20 sumthing bucks.

Apr 25, 2011 | 07:55 PM

#22

danmackvail1

Thread Starter

Junior Member

Joined: Sep 2009

Posts: 46

Likes: 0

From: vail co

Year: 98

Model: Cherokee

Engine: 4.0 l6

this...

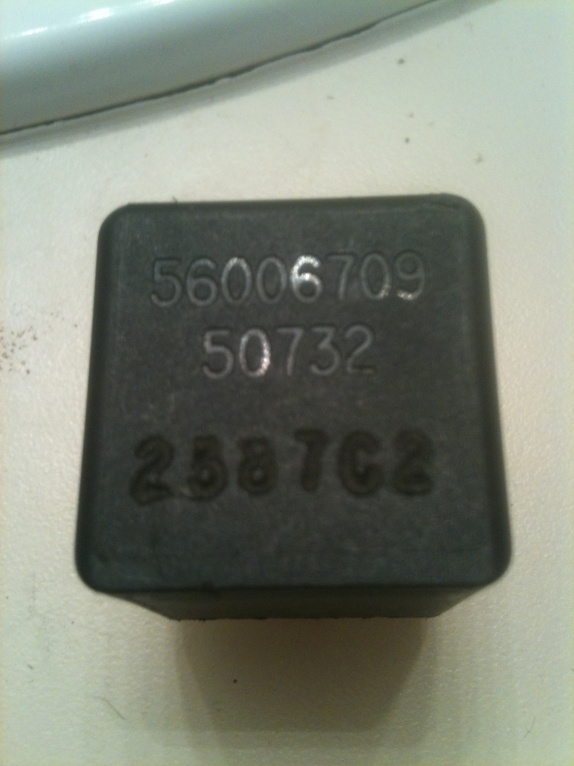

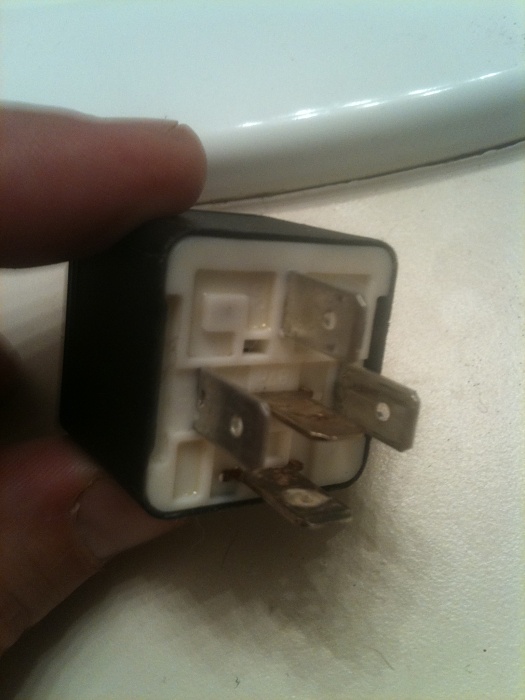

I got a replacement from autozone, will see when the part comes in what happens. thnx again. managed to pull the glove box down and bingo there it was right there

Attached Thumbnails
