Stock XJ Cherokee Tech. All XJ Non-modified/stock questions go here XJ (84-01)
All OEM related XJ specific tech. Examples, no start, general maintenance or anything that's stock.

Bit the bullet

Thread Tools

Search this Thread

Old Oct 3, 2010 | 12:48 PM
  #1
chuckanut's Avatar
Thread Starter
Member

Joined: Jan 2010
Posts: 208
Likes: 0
From: Moses Lake Wa
Year: 1989
Model: Cherokee
Default Bit the bullet

Well, yesterday I bit the bullet. My wife told me to order a lift kit for the Cherokee. So I went with Iron Rock 4"(not the Long Arm though...yet). I also got some black rims on er on Friday. Anyways this is the first lift I've installed, I guess my question is, is there anything I need to look for while doing this lift? Wish me luck guys. I'll try to get a picture up later. Oh ya about how long does it take to install a lift?
Reply
Old Oct 3, 2010 | 12:57 PM
  #2
00jeepXJ's Avatar
CF Veteran

Joined: Apr 2009
Posts: 1,601
Likes: 1
From: Kalamazoo, MI
Year: 2000
Model: Cherokee
Engine: 4.0L with throttle body spacer and cold air intake, bored throttle body, #784 injector upgrade
Default

You should get a couple friends to help you as its good to have them around. Get a rust penetrant like Pb Blast and SOAK the crap out of every nut and bolt for atleast a day before you start to work on them. Look at your U Joints to make sure they are in good shape. Check your front end out like your ball joints and tie rod ends to make sure they are in good shape. I am sure others will have plenty of more things to say else.
Reply
Old Oct 3, 2010 | 01:03 PM
  #3
Rock Toy's Avatar
CF Veteran

Joined: Feb 2010
Posts: 2,095
Likes: 3
From: Cove, OR
Year: 1993
Model: Cherokee
Engine: 4.0
Default

^x2 while you still have it on jack stands look for anything that could rub because of the extra height. One thing that comes to mind is the exhaust system. Other than that just follow directions, take your time, and have fun.
Reply
Old Oct 3, 2010 | 07:06 PM
  #4
trans_am7935's Avatar
CF Veteran

Joined: May 2009
Posts: 1,844
Likes: 4
From: Glen Burnie, MD
Year: 1994
Model: Cherokee
Engine: 4.0 H.O. K&N, Borla headers, custom down pipe, magnaflow hi-flo cat, flowmaster to turn down tip
Default

be aware of the passenger side sway bar mount as it will be pretty close to the coil spring now. also put the upper control arms on first then the lower ones. attatch the axle side then the body side for the lowers and the opposite for the uppers.
Reply
Old Oct 3, 2010 | 10:02 PM
  #5
USMCJeeper's Avatar
Member

Joined: Apr 2010
Posts: 134
Likes: 0
From: Greensboro, NC
Year: 1999
Model: Cherokee
Engine: 4.0L HO 242
Default

x2 make sure you dont take off all four control arms or you will have a pain in the *&^ of a time getting it back on. Also make sure you don't crush your thumb with the coil spring compressors I did that a few weeks ago. Also make sure you don't lose any sockets in the frame of your jeep when replacing your control arms if you do those.
Reply
Old Oct 3, 2010 | 11:05 PM
  #6
gspaceunit's Avatar
Member

Joined: Jun 2010
Posts: 160
Likes: 0
From: Eugene, Oregon
Year: 1999
Model: Cherokee
Engine: 4.0 L I6 (Ford 4.2L Injector Upgrade and Yellow Top Optima))
Default

Originally Posted by chuckanut
Well, yesterday I bit the bullet. My wife told me to order a lift kit for the Cherokee. So I went with Iron Rock 4"(not the Long Arm though...yet).
1. She's a keeper....
2. Who wears the pants in the relationship?
3. Why is buying a lift kit "biting the bullet" did you not have a chance to research enough or something?

Don't forget the little things. Bump stop extenders, brake line relocation, e-brake bracket relocation, T-case drop or SYE, etc...
Reply
Old Oct 4, 2010 | 12:05 AM
  #7
trans_am7935's Avatar
CF Veteran

Joined: May 2009
Posts: 1,844
Likes: 4
From: Glen Burnie, MD
Year: 1994
Model: Cherokee
Engine: 4.0 H.O. K&N, Borla headers, custom down pipe, magnaflow hi-flo cat, flowmaster to turn down tip
Default

Originally Posted by USMCJeeper
Also make sure you don't lose any sockets in the frame of your jeep when replacing your control arms if you do those.
wow how many times i have done this with a 15mm socket on the upper control arm frame mount bolt....good thing the new ones from 1993-1996 had a piece of metal welded to them like the track bar bolt does to keep them in place when unbolting the nut!
Reply
Old Oct 4, 2010 | 11:39 AM
  #8
chuckanut's Avatar
Thread Starter
Member

Joined: Jan 2010
Posts: 208
Likes: 0
From: Moses Lake Wa
Year: 1989
Model: Cherokee
Default

Originally Posted by gspaceunit
1. She's a keeper....
2. Who wears the pants in the relationship?
3. Why is buying a lift kit "biting the bullet" did you not have a chance to research enough or something?

Don't forget the little things. Bump stop extenders, brake line relocation, e-brake bracket relocation, T-case drop or SYE, etc...
LMAO, she IS a keeper but does NOT where the pants, I guess im just a tight wad, it's something Ive been wanting to do since I bought the XJ.

Anyways thanks guys for the info, there are some things I didnt even think about, thanks again, just waiting to get it now
Reply
Old Oct 4, 2010 | 11:57 AM
  #9
Bustedback's Avatar
CF Veteran

Joined: Feb 2010
Posts: 12,367
Likes: 23
From: Oroville, CA
Year: 1995
Model: Grand Cherokee
Engine: 4.0 with all of the noise and clatter
Default

I wish my wife would twist my arm and make me buy a new lift kit and wheels.
Reply
Old Oct 4, 2010 | 12:09 PM
  #10
captainwoot's Avatar
CF Veteran

Joined: Aug 2009
Posts: 1,047
Likes: 3
From: Hanover,Ont, Canada
Year: 1991
Model: Cherokee
Engine: 4.o
Default

Me too!
Reply
Old Oct 4, 2010 | 12:12 PM
  #11
Diesel's Avatar
CF Veteran

Joined: Aug 2010
Posts: 2,112
Likes: 4
From: Wantage, NJ
Year: 1995
Model: Cherokee
Engine: 4.0 I6
Default

I am so sorry to hear that, this is a sad day.


Explain why you refer to it as biting the bullet in complete detail, beginning to end.
Reply
Old Oct 4, 2010 | 12:18 PM
  #12
Allusion's Avatar
Senior Member

Joined: Feb 2010
Posts: 681
Likes: 1
From: errrvre where
Year: 1996
Model: Cherokee
Engine: I6 4.0L HO, JBA headers, 99 intake, #703 injectors
Default

i have the iro 6" long arm. its VERY nice and its flexy as ****.. IRO has godly customer service.. if ya ever need help call iro and talk to luke.. hell walk you through all your steps.. relax, have fun, get some friends and brewskies and youll be set..
Reply
Old Oct 4, 2010 | 07:57 PM
  #13
chuckanut's Avatar
Thread Starter
Member

Joined: Jan 2010
Posts: 208
Likes: 0
From: Moses Lake Wa
Year: 1989
Model: Cherokee
Default

Originally Posted by Allusion
i have the iro 6" long arm. its VERY nice and its flexy as ****.. IRO has godly customer service.. if ya ever need help call iro and talk to luke.. hell walk you through all your steps.. relax, have fun, get some friends and brewskies and youll be set..
Cool thanks Allusion, glad to hear good things about them. Hopefully it will be sent out tomarrow and start working on it on my next days off. Wish I could figure out how to get pics from my phone to the computer.
Reply
Old Oct 4, 2010 | 08:13 PM
  #14
ozric762's Avatar
Junior Member

Joined: Mar 2010
Posts: 63
Likes: 0
From: Northern Illinois
Year: '99
Model: Cherokee
Engine: 4.0
Default

+1 on the sway bar links. I just installed a 3" and the tips of the sway bar were hitting sometimes. I went with adjustable quick disconnects from JKS.

+1 on the extended brake lines too.

I sure do love an understanding woman. When I brought home my xj after the lift and 31" tires, all my wife said was "It looks more like a Jeep I can picture you driving". God bless them.

Last edited by ozric762; Oct 4, 2010 at 08:16 PM.
Reply
Old Oct 4, 2010 | 09:40 PM
  #15
chuckanut's Avatar
Thread Starter
Member

Joined: Jan 2010
Posts: 208
Likes: 0
From: Moses Lake Wa
Year: 1989
Model: Cherokee
Default

Name:  2010-10-03 10.37.52.jpg
Views: 45
Size:  94.3 KB

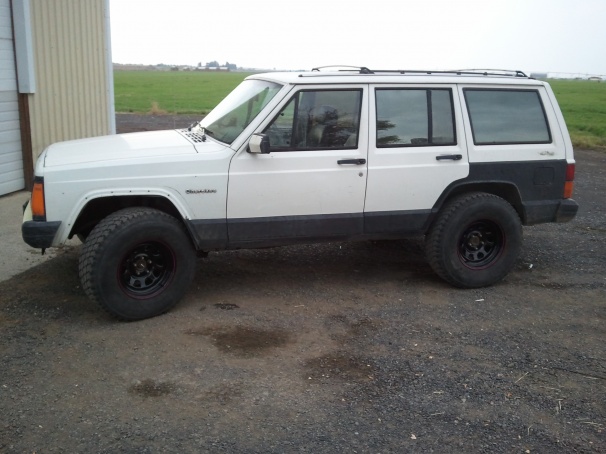

Here she sits, trimmed fenders, well the rear, still need to do the front. 31x10.50 tires
